Description

Price

1

FRAME (RED) (1UY-21110-00-FH)

1UY-21110-01-FH

Unavailable

1

FRAME (BLUE) (1UY-21110-00-NJ)

1UY-21110-01-NJ

Unavailable

2

STAY, ENGINE 2

1UY-21315-00-00

$24.99

3

STAY, ENGINE 3

1UY-21316-00-00

$31.99

4

BOLT, FLANGE

95817-08012-00

$5.49

5

BOLT, FLANGE

95817-08055-00

$4.21

6

BOLT, FLANGE(JN5)

95817-08070-00

$3.76

7

BOLT, FLANGE

95817-08100-00

$5.60

8

BOLT, FLANGE

90105-08442-00

Unavailable

9

NUT, SELF-LOCKING

90185-08169-00

$8.49

10

TENSIONER

30X-22178-00-00

$35.99

11

BUSH

4V4-22184-00-00

$4.47

12

WASHER, PLATE(8AT)

90201-081R9-00

$9.49

13

BOLT, FLANGE

95817-08012-00

$5.49

14

PROTECTOR, ENGINE

1UY-21471-00-00

Unavailable

15

BOLT, FLANGE

95817-08012-00

$5.49

16

BUSH, SOLID (J22)

90381-15040-00

Unavailable

17

O-RING (22U)

93210-15566-00

Unavailable

18

NIPPLE, GREASE

93700-06M03-00

Unavailable

19

LABEL

1UY-26137-00-00

Unavailable

20

TOOL KIT (24W-28100-00)

59V-28100-00-00

Unavailable

21

GAUGE, AIR

1NV-2811A-01-00

Unavailable

22

BAND, TOOL

21V-21376-00-00

Unavailable

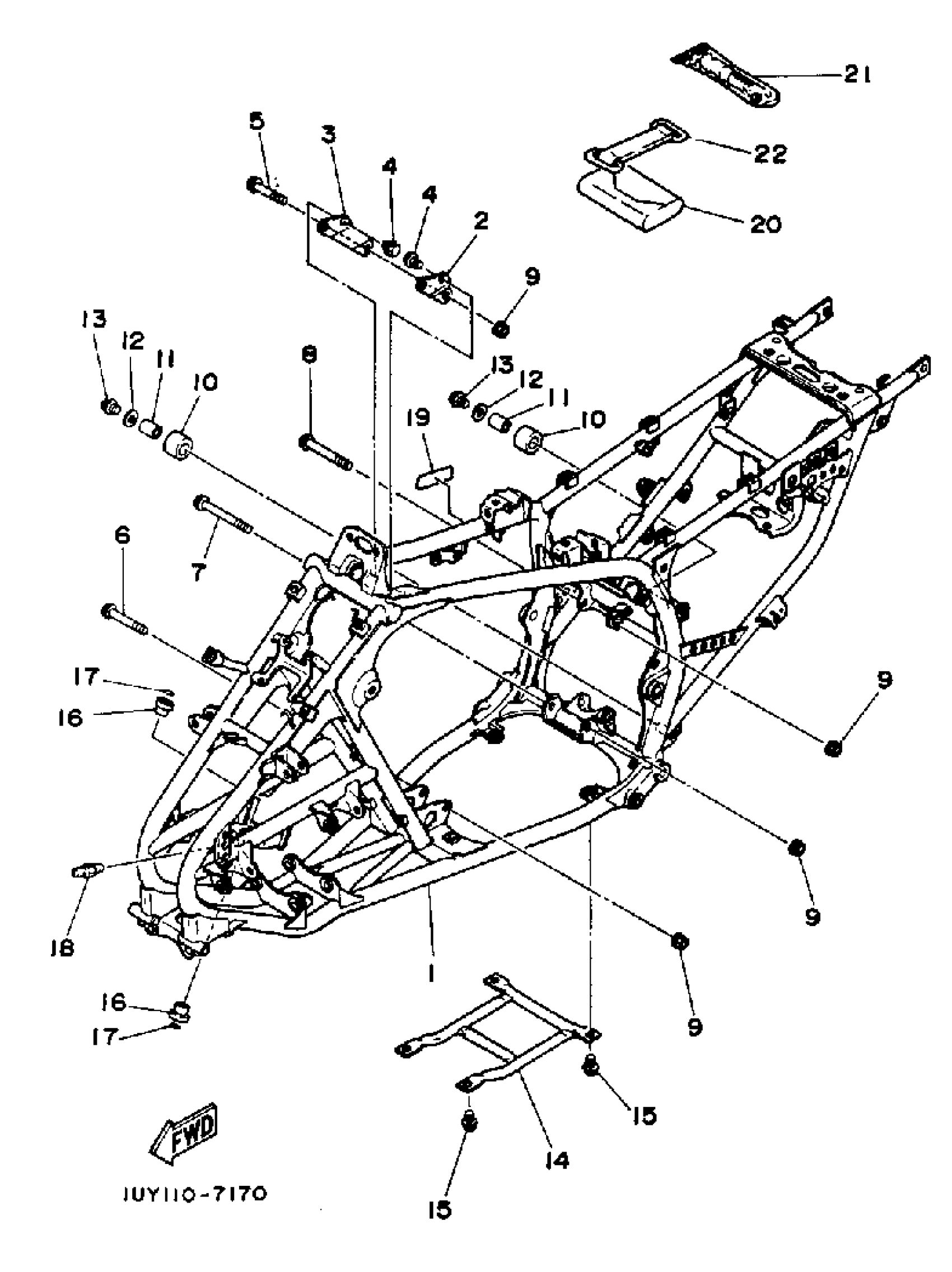

Yamaha YFM350XT (WARRIOR) 1UY 1987 FRAME Diagram

FRAME (RED) (1UY-21110-00-FH)

FRAME (BLUE) (1UY-21110-00-NJ)

STAY, ENGINE 2

STAY, ENGINE 3

BOLT, FLANGE

BOLT, FLANGE

BOLT, FLANGE(JN5)

BOLT, FLANGE

BOLT, FLANGE

NUT, SELF-LOCKING

TENSIONER

BUSH

WASHER, PLATE(8AT)

BOLT, FLANGE

PROTECTOR, ENGINE

BOLT, FLANGE

BUSH, SOLID (J22)

O-RING (22U)

NIPPLE, GREASE

LABEL

TOOL KIT (24W-28100-00)

GAUGE, AIR

BAND, TOOL
