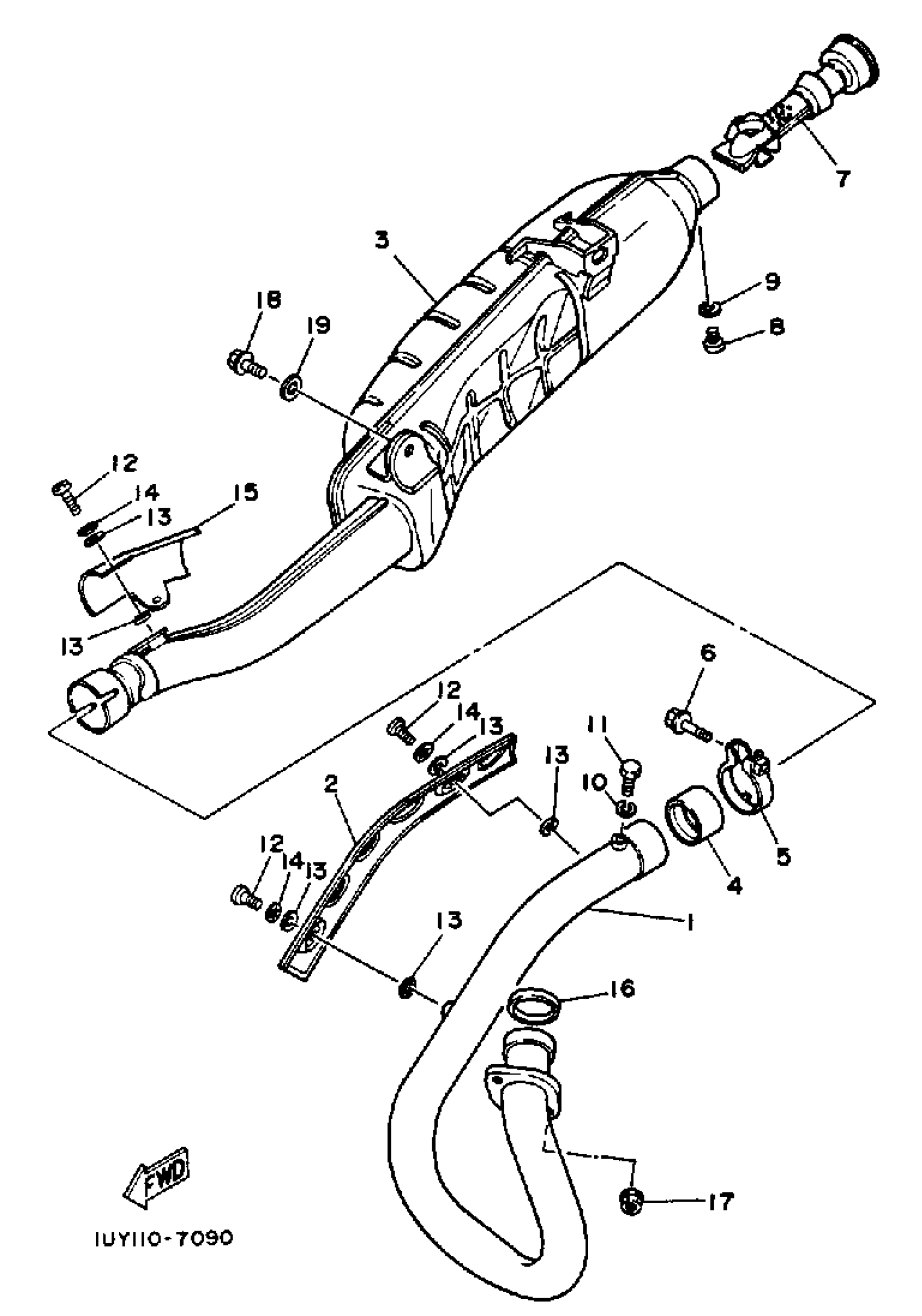

Yamaha YFM350XT (WARRIOR) 1UY 1987 EXHAUST Diagram

PIPE, EXHAUST 1

1UY-14611-03-00

Unavailable

PROTECTOR, EXHAUST PIPE

1YW-14628-00-00

Unavailable

MUFFLER 1

1UY-14711-05-00

$517.99

GASKET, SILENCER

3YF-14755-00-00

$34.99

BAND, MUFFLER

1UY-14715-00-00

Unavailable

BOLT, FLANGE(JN5)

95817-08045-00

$3.69

PIPE, OUTLET

21V-14752-00-00

Unavailable

SCREW, PAN HEAD(6A3)

97885-06008-00

Unavailable

WASHER, SPRING

92995-06100-00

Unavailable

WASHER(6TA)

92907-06600-00

$2.72

BOLT (11T)

90101-06576-00

$8.49

SCREW, BINDING

98907-06012-00

$9.49

WASHER, PROTECTOR

30X-14766-00-00

Unavailable

WASHER, WAVE(3RW)

90206-06090-00

$8.49

PROTECTOR, MUFFLER 1

1UY-14718-00-00

Unavailable

GASKET, EXHAUST PIPE

3GD-14613-00-00

Unavailable

NUT (1AE)

90179-06500-00

Unavailable

BOLT, FLANGE(JN5)

95817-08016-00

Unavailable

WASHER (853)

90201-08326-00

Unavailable
