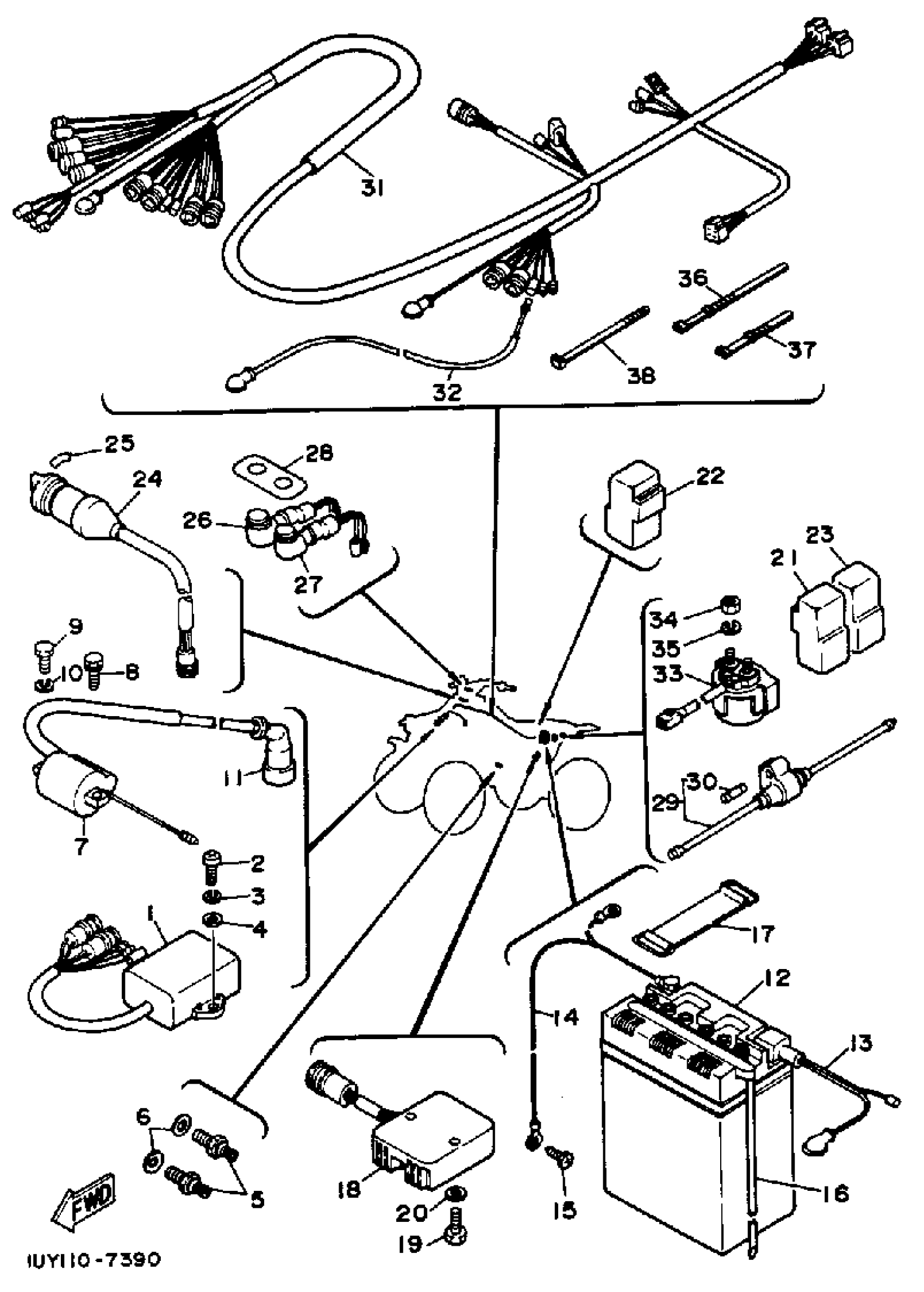

Yamaha YFM350XT (WARRIOR) 1UY 1987 ELECTRICAL 1 Diagram

CDI UNIT ASSEMBLY

1UY-85540-20-00

Unavailable

SCREW PAN HEAD

98580-06020-00

$8.49

WASHER, SPRING

92995-06100-00

Unavailable

WASHER, PLAIN (646)

92990-06600-00

$2.80

NEUTRAL SWITCH ASSY

4GY-82540-10-00

$37.99

GASKET (5R6)

90430-10171-00

$3.18

IGNITION COIL ASSY

1UY-82310-41-00

$186.99

BOLT (21V)

90109-06723-00

$8.49

BOLT(3DM)

97024-06020-00

$8.49

WASHER, SPRING

92995-06100-00

Unavailable

PLUG CAP ASSY

3NS-82370-00-00

$37.99

ACB12CA GS BATTERY WET PACK

ACB-12CA0-00-00

Unavailable

WIRE, PLUS LEAD

1YW-82115-00-00

$61.99

WIRE, LEAD

1YW-82507-00-00

Unavailable

SCREW (5G3)

90153-06034-00

$7.49

HOSE (L1500)

90445-084J0-00

Unavailable

BAND, BATTERY

337-82131-00-00

Unavailable

RECTIFIER & REGULATOR ASSEMBLY

59V-81960-A0-00

Unavailable

BOLT, HEXAGON

97017-06020-00

Unavailable

WASHER, PLAIN (646)

92990-06600-00

$2.80

RELAY ASSY (29U-93)

29U-81950-93-00

Unavailable

RELAY ASSY (3GD-01)

3GD-81950-01-00

Unavailable

RELAY ASSY (29U-93)

29U-81950-93-00

Unavailable

MAIN SWITCH ASSY

1UY-82510-09-00

Unavailable

LABEL

29U-83585-10-00

Unavailable

PILOT LIGHT ASSY

24W-83530-10-00

Unavailable

PILOT LIGHT ASSY

52G-83530-10-00

Unavailable

LABEL

1UY-83585-00-00

Unavailable

FUSE HOLDER ASSY

1UY-82150-00-00

Unavailable

FUSE (15A)

1UY-82151-00-00

Unavailable

WIRE HARNESS ASSEMBLY

1UY-82590-00-00

Unavailable

WIRE, LEAD

2JX-82541-00-00

Unavailable

STARTER RELAY ASSY (MS5D-611)

4KD-81940-00-00

Unavailable

NUT(650)

95380-06700-00

Unavailable

WASHER, SPRING

92995-06100-00

Unavailable

BAND, SWITCH CORD

437-83936-01-00

Unavailable

BAND, SWITCH CORD

437-83936-11-00

Unavailable

CLAMP

1UY-82591-00-00

Unavailable
