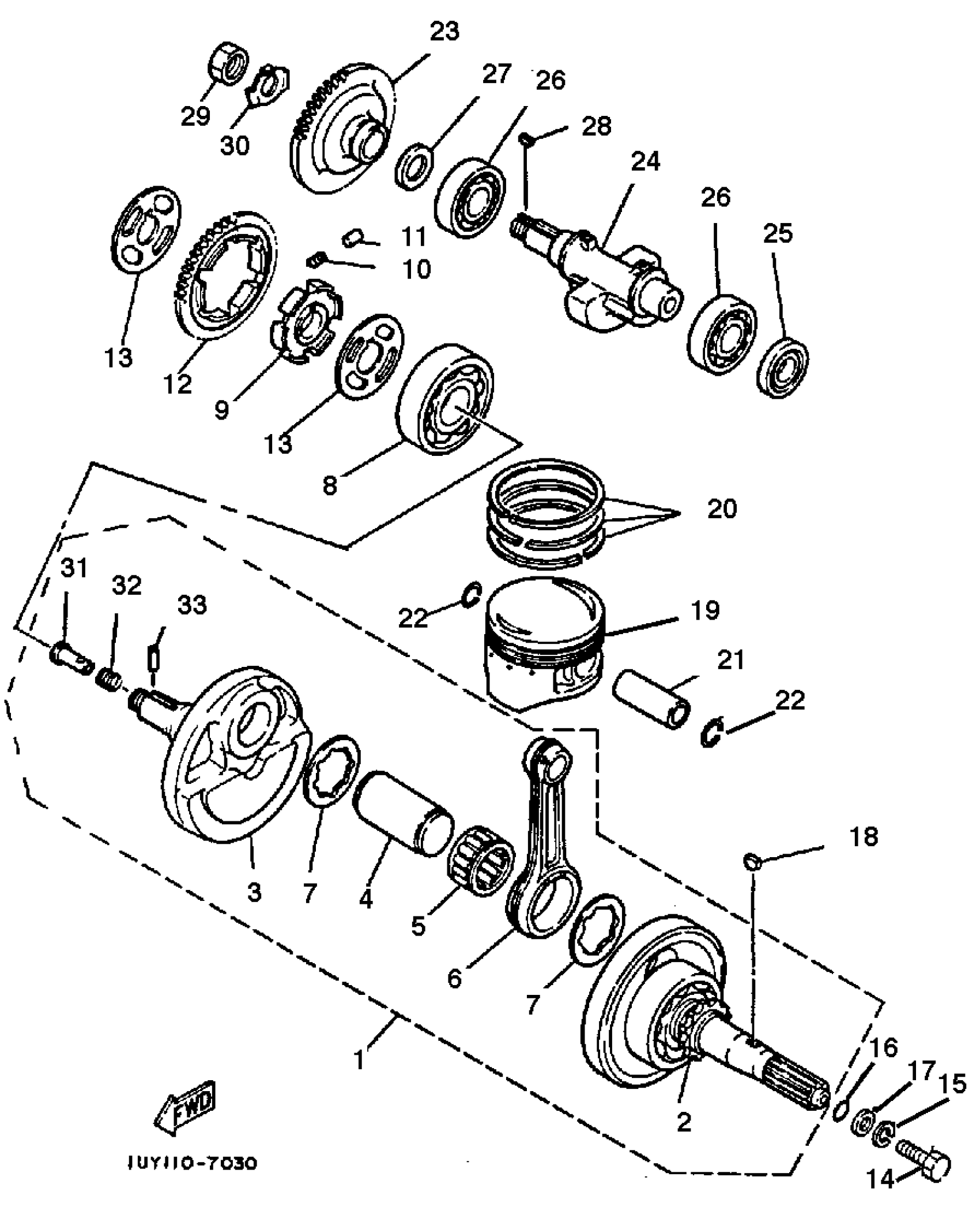

Yamaha YFM350XT (WARRIOR) 1UY 1987 CRANKSHAFT PISTON Diagram
#
Description
Price
2
CRANK SUB ASSY 1
1UY-11401-09-00
Unavailable
4
PIN, CRANK 1
30X-11681-00-00
Unavailable
6
ROD, CONNECTING
1UY-11651-00-00
Unavailable
9
BOSS, BUFFER
30X-11496-00-00
Unavailable
10
SPRING, COMPRESSION (5Y1)
90501-22721-00
Unavailable
13
WASHER, BEARING COVER
30X-11565-00-00
Unavailable
16
O-RING (538)
93210-16290-00
Unavailable
17
WASHER, PLATE
90201-10058-00
Unavailable
18
KEY, WOODRUFF
90280-05001-00
Unavailable
19
PISTON (STD)
1UY-11631-01-Y0
Unavailable
19
PISTON (0.50MM O/S)
1UY-11636-01-00
Unavailable
19
PISTON (1.00MM O/S)
1UY-11638-01-00
Unavailable
20
PISTON RING SET (STD)
4GB-11610-00-00
Unavailable
20
PISTON RING SET (0.50MM O/S)
4GB-11610-20-00
Unavailable
21
PIN, PISTON
55V-11633-00-00
Unavailable
22
CIRCLIP (26H)
93450-19095-00
Unavailable
23
GEAR, DRIVE
1UY-11536-01-00
Unavailable
24
WEIGHT 1
1UY-11454-00-00
Unavailable
25
OIL SEAL (5Y1)
93101-25106-00
Unavailable
26
BRG,R-B 6205C4 52MM 130G KY
93306-20529-00
Unavailable
27
WASHER, PLATE (30X)
90201-207G6-00
Unavailable
28
KEY, STRAIGHT (3L5)
90282-05034-00
Unavailable
29
NUT, HEXAGON (30X)
90170-16326-00
Unavailable
30
WASHER, LOCK (30X)
90215-16221-00
Unavailable
31
PIN, CLEVIS(30X)
90240-07105-00
Unavailable
32
SPRING, COMPRESSION (5H0)
90501-07629-00
Unavailable
33
PIN, DOWEL (5H0)
93602-13177-00
Unavailable
