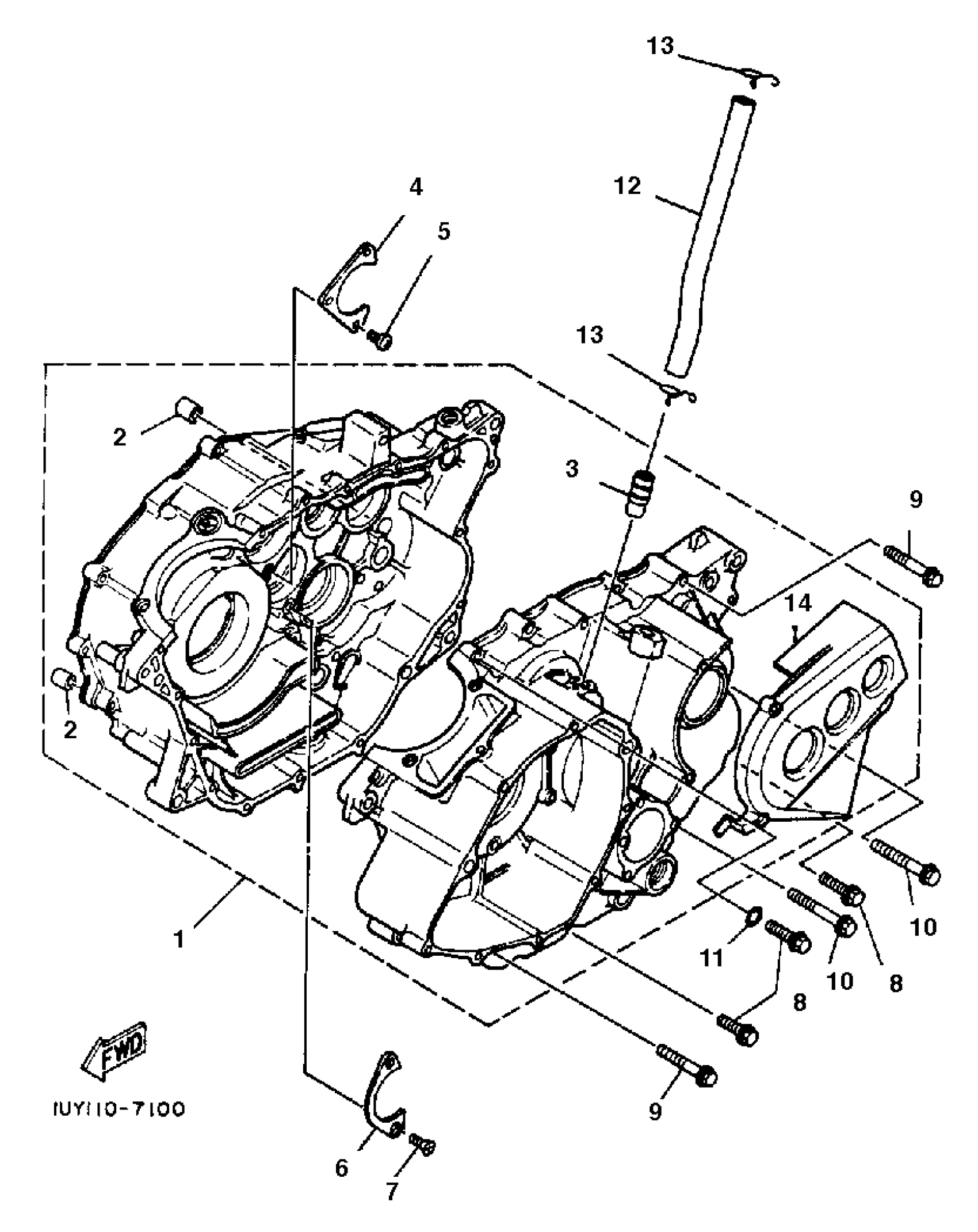

Yamaha YFM350XT (WARRIOR) 1UY 1987 CRANKCASE Diagram

CRANKCASE ASSEMBLY (1UY-15100-00)

1UY-15100-09-00

Unavailable

PIN, DOWEL

99530-12016-00

$4.89

PIPE, BREATHER 2

371-11167-01-00

$13.49

PLATE, BEARING COVER

3R4-15381-00-00

$4.68

SCREW, PAN HEAD(62J)

97885-06012-00

Unavailable

PLATE, BEARING COVER

1UY-15383-00-00

Unavailable

SCREW, FLAT

98707-06014-00

$8.49

BOLT, FLANGE(4AS)

95024-06030-00

$8.49

BOLT, SMALL FLANGE

95027-06050-00

$2.55

BOLT, SMALL FLANGE

95027-06060-00

$2.87

GASKET 256113960000

90430-06014-00

Unavailable

HOSE

90445-16416-00

Unavailable

CLIP (371)

90467-14015-00

$8.49

COVER, CRANKCASE 2

1UY-15421-00-00

$42.99
