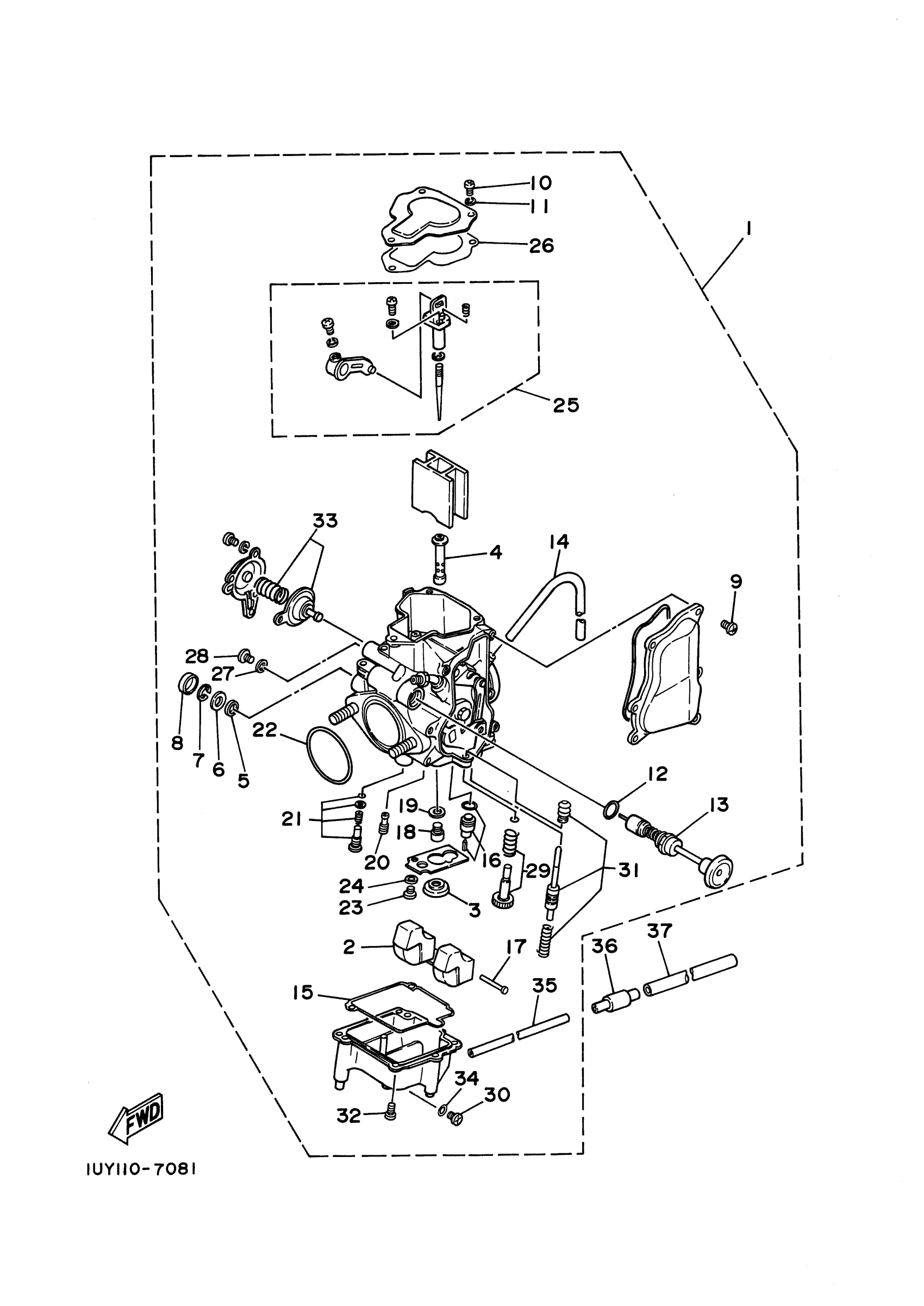

Yamaha YFM350XT (WARRIOR) 1UY 1987 CARBURETOR Diagram
#
1
CARBURETOR ASSEMBLY 1
1UY-14101-00-00
Unavailable
4
. NOZZLE, MAIN
1UY-14141-36-00
Unavailable
5
SEAL
2A2-14997-00-00
Unavailable
6
GASKET
22F-14126-00-00
Unavailable
8
CAP
36X-14169-00-00
Unavailable
14
. PIPE
1UY-14197-00-00
Unavailable
16
NEEDLE VALVE SET
1UY-14107-25-00
Unavailable
17
PIN, FLOAT
537-14186-00-00
Unavailable
18
. JET, MAIN (145)
620-14143-29-00
Unavailable
19
WASHER,MAIN JET
137-14153-00-00
Unavailable
20
JET, PILOT (# 42.5)
4G0-14142-42-A0
Unavailable
21
PILOT SCREW SET
21V-14105-00-00
Unavailable
22
O-RING
1YW-14147-00-00
Unavailable
23
SCREW, PAN HEAD (J10)
98580-03008-00
Unavailable
24
WASHER, SPRING
92990-03100-00
Unavailable
25
NEEDLE SET
1UY-1490J-01-00
Unavailable
26
GASKET
1UY-14198-00-00
Unavailable
27
. WASHER
59V-14962-00-00
Unavailable
28
SCREW, PAN HEAD(6A3)
97885-06008-00
Unavailable
29
. THROTTLE SCREW SET
1UY-14103-00-00
Unavailable
30
SCREW
2L1-14191-00-00
Unavailable
31
ROD SET
1UY-14504-00-00
Unavailable
32
SCREW, PAN HEAD
98511-04012-00
Unavailable
33
DIAPHRAGM SET, 5
26H-1490H-00-00
Unavailable
34
O-RING
214-14147-00-00
Unavailable
35
HOSE (L1500)
90445-084J0-00
Unavailable
36
PIPE 2,OVERFLOW
24W-14193-00-00
Unavailable
37
TUBE, FLEXIBLE(3NV)
91A21-07020-00
Unavailable
38
GUIDE, CABLE
1UY-14155-00-00
Unavailable
