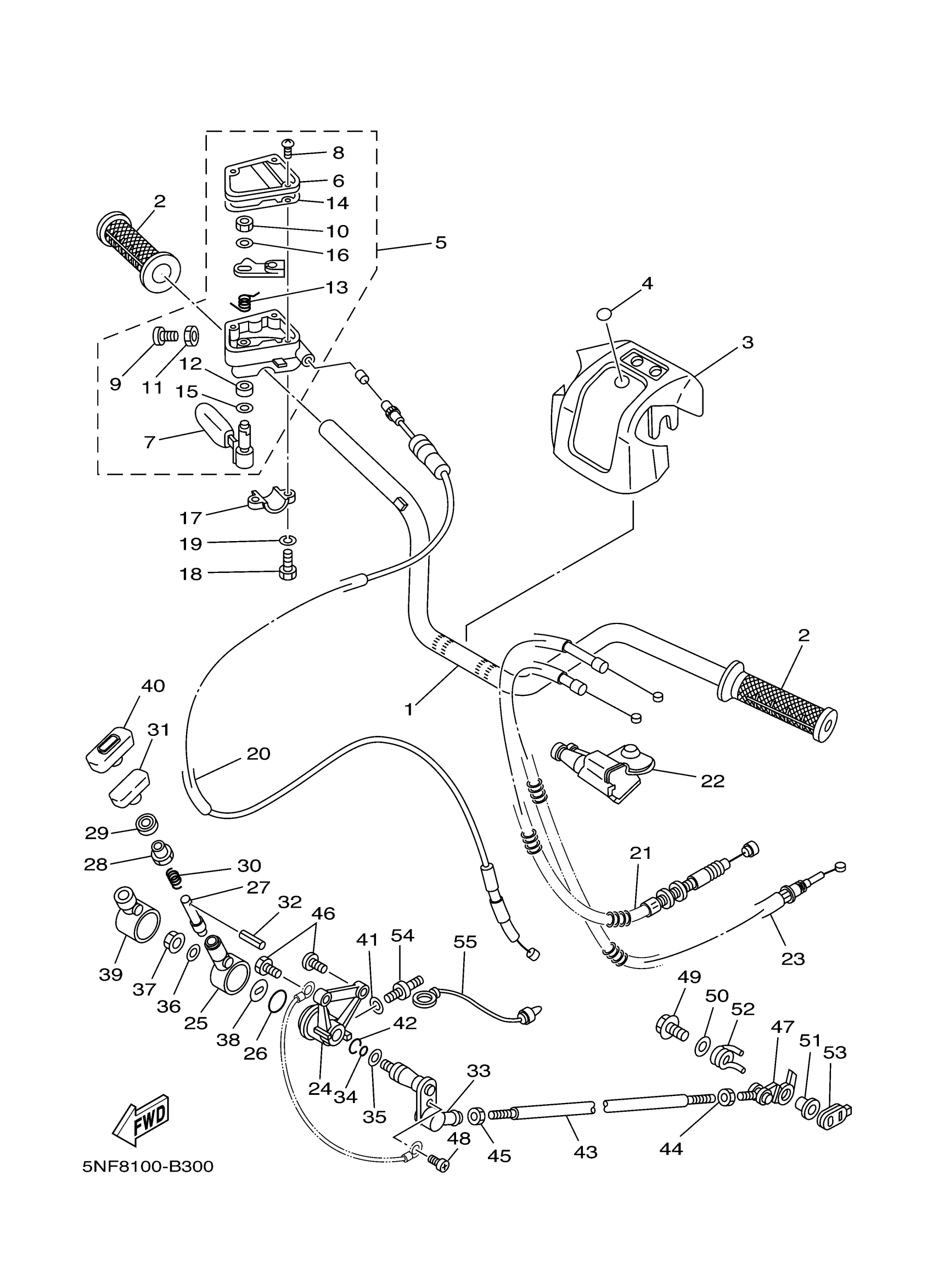

Yamaha YFM350XRC (WARRIOR) 5NF9 2003 STEERING HANDLE. CABLE Diagram

#

Description
Price

1

HANDLEBAR

5LP-26111-20-00

Unavailable

2

GRIP (LEFT)

5LP-26241-00-00

$24.99

3

PROTECTOR, HANDLEBAR

3GD-26124-10-00

Unavailable

4

TUNING FORK MARK

5GT-2836B-10-00

$16.49

5

THROTTLE LEVER ASSY

1NV-26250-01-00

Unavailable

6

. CAP, GEAR

1NV-2628F-00-00

Unavailable

7

LEVER, THROTTLE

1NV-2625G-02-00

Unavailable

8

SCREW, PAN

98517-05012-00

$4.73

9

SCREW, PAN HEAD

98517-05020-00

$4.25

10

NUT, U

95617-05100-00

$9.49

11

NUT, HEXAGON SMALL

95317-05700-00

$8.49

12

OIL SEAL (9X15X4-256)

93104-09025-00

$7.49

13

SPRING

1NV-26304-00-00

$11.99

14

. GASKET

1NV-2628G-00-00

Unavailable

15

WASHER

1NV-26129-00-00

$6.99

16

. WASHER, SPECIAL

53L-83909-00-00

Unavailable

17

HOLDER, LEVER LOWER

4V4-82913-00-00

Unavailable

18

SCREW, PAN HEAD

98517-05020-00

$4.25

19

WASHER(3SX)

92907-05100-00

Unavailable

20

CABLE, THROTTLE 1

3GD-26311-01-00

Unavailable

21

CABLE, CLUTCH

1UY-26335-00-00

Unavailable

22

COVER, HANDLE LEVER 2

1UY-2637A-01-00

Unavailable

23

WIRE, BRAKE 1

1UY-26341-10-00

Unavailable

24

BODY, REVERSE LEVER

2XK-26151-10-00

Unavailable

25

LEVER, REVERSE

1UY-26152-00-00

Unavailable

26

O-RING (371)

93210-29196-00

Unavailable

27

STOPPER, LEVER

2XK-26154-00-00

Unavailable

28

COVER, SHIFT SPRING

1UY-26161-00-00

Unavailable

29

OIL SEAL

93109-08803-00

Unavailable

30

SPRING, COMPRESSION

90501-102E5-00

Unavailable

31

LEVER, LOCK

1UY-26157-00-00

Unavailable

32

PIN, SPRING (648)

91690-40016-00

Unavailable

33

SHAFT, LINK

5YT-26162-00-00

Unavailable

34

O-RING (611)

93210-10096-00

Unavailable

35

WASHER PLATE 626441260000

90202-14037-00

Unavailable

36

WASHER, PLATE(52G)

90201-064J1-00

Unavailable

37

NUT, FLANGE(4MV)

95707-06500-00

Unavailable

38

PLATE, SIDE 1

1UY-26158-00-00

Unavailable

39

COVER, HANDLE LEVER 1

1UY-26372-00-00

Unavailable

40

GRIP, LEVER

1UY-26153-00-00

Unavailable

41

WASHER, PLATE

90201-12790-00

Unavailable

42

O-RING (26H)

93210-14579-00

Unavailable

43

ROD, JOINT

3GD-26166-10-00

Unavailable

44

NUT(JN5)

95317-06700-00

Unavailable

45

NUT (2H9)

90170-06228-00

Unavailable

46

BOLT, BUTTON

92017-08020-00

Unavailable

47

LEVER 2

5YT-26165-00-00

Unavailable

48

SCREW, PAN HEAD(JG1)

98507-04008-00

Unavailable

49

BOLT, FLANGE

95817-06035-00

Unavailable

50

WASHER, PLATE

90201-06M02-00

Unavailable

51

COLLAR

90387-0613B-00

Unavailable

52

SPRING, TORSION(1YW)

90508-35764-00

Unavailable

53

LEVER

4SH-18198-00-00

Unavailable

54

NEUTRAL SWITCH ASSY

4KD-82540-00-00

Unavailable

55

WIRE, LEAD

2XK-82507-00-00

Unavailable
