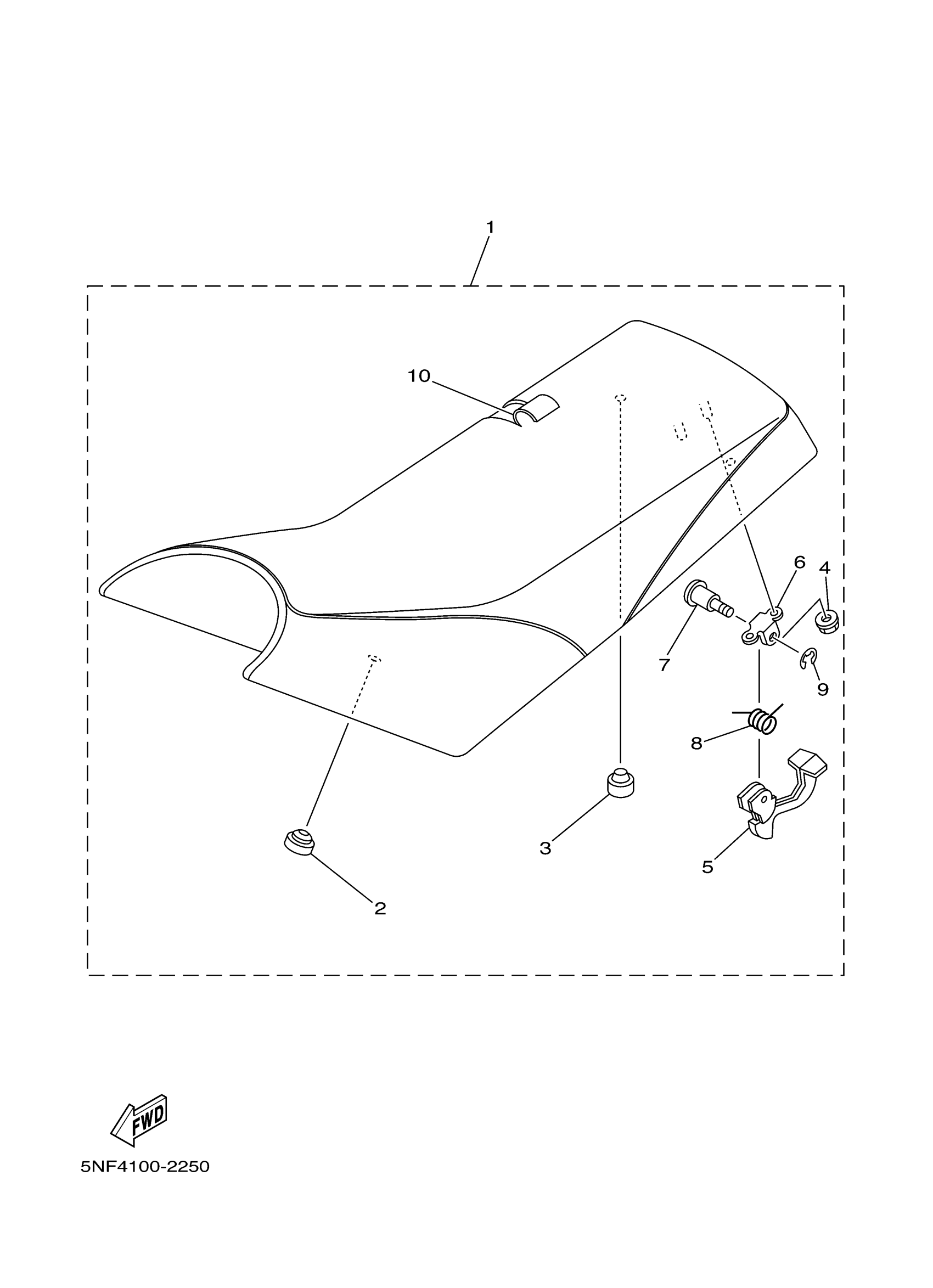

Yamaha YFM350XRC (WARRIOR) 5NF9 2003 SEAT Diagram

#

Description

Price

1

SINGLE SEAT ASSY

5NF-24710-00-00

Unavailable

2

PAD, SEAT

22W-24741-00-00

$8.99

3

STOPPER, MAIN STAND

371-27114-00-00

$7.99

4

NUT, FLANGE(4MV)

95707-06500-00

$1.23

5

LEVER, SEAT

3GD-24776-00-00

$42.99

6

BRACKET, SEAT LEVER

4K0-24775-00-00

Unavailable

7

PIN

4K0-24774-01-00

Unavailable

8

SPRING, TORSION (24W)

90508-20454-00

Unavailable

9

CIRCLIP (EU0)

99080-04600-00

Unavailable

10

. SEAT COVER COMP

5NF-2470F-00-00

Unavailable
