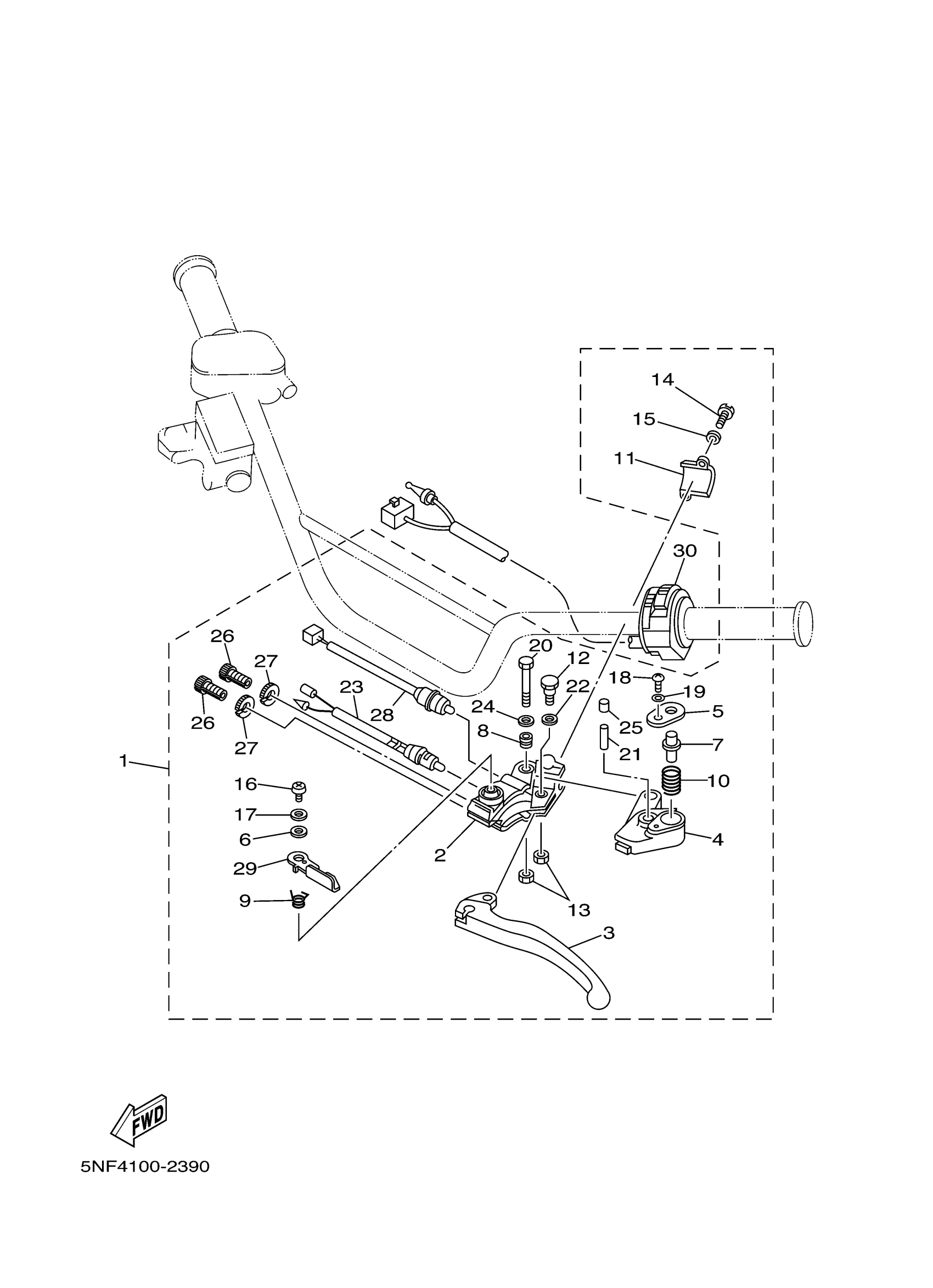

Yamaha YFM350XRC (WARRIOR) 5NF9 2003 HANDLE SWITCH. LEVER Diagram
#
Description
Price
1
LEVER HOLDER ASSY (LEFT)
5LP-82910-10-00
Unavailable
2
. HOLDER, LEVER 1
4KB-82911-00-00
Unavailable
4
LEVER 2
1UY-83922-01-00
Unavailable
5
COVER
1UY-83935-00-00
Unavailable
7
PIN, LOCK 1
1UY-83967-00-00
Unavailable
11
HOLDER, LEVER LOWER 1
2XJ-82913-00-00
Unavailable
12
BOLT 168217380000
90109-06017-00
Unavailable
16
SCREW, PAN HEAD(3LA)
98517-05010-00
Unavailable
17
WASHER(1RW)
92907-05600-00
Unavailable
18
SCREW, PAN HEAD(3AC)
98517-03008-00
Unavailable
19
WASHER(3SX)
92907-03600-00
Unavailable
20
BOLT(8BC)
97017-06040-00
Unavailable
21
PIN,SPRING (648)
91690-40022-00
Unavailable
22
WASHER, PLATE 1562722600
90201-08083-00
Unavailable
23
FRONT STOP SWITCH ASSY
1YW-83980-00-00
Unavailable
24
WASHER(6TA)
92907-06200-00
Unavailable
25
CAP 1
1UY-83956-00-00
Unavailable
26
BOLT
90123-08002-00
Unavailable
27
NUT
90179-08030-00
Unavailable
28
SWITCH
4KB-82917-00-00
Unavailable
29
LEVER, LOCK
4KB-83965-00-00
Unavailable
30
SWITCH, HANDLE 3
4KB-83973-22-00
Unavailable
