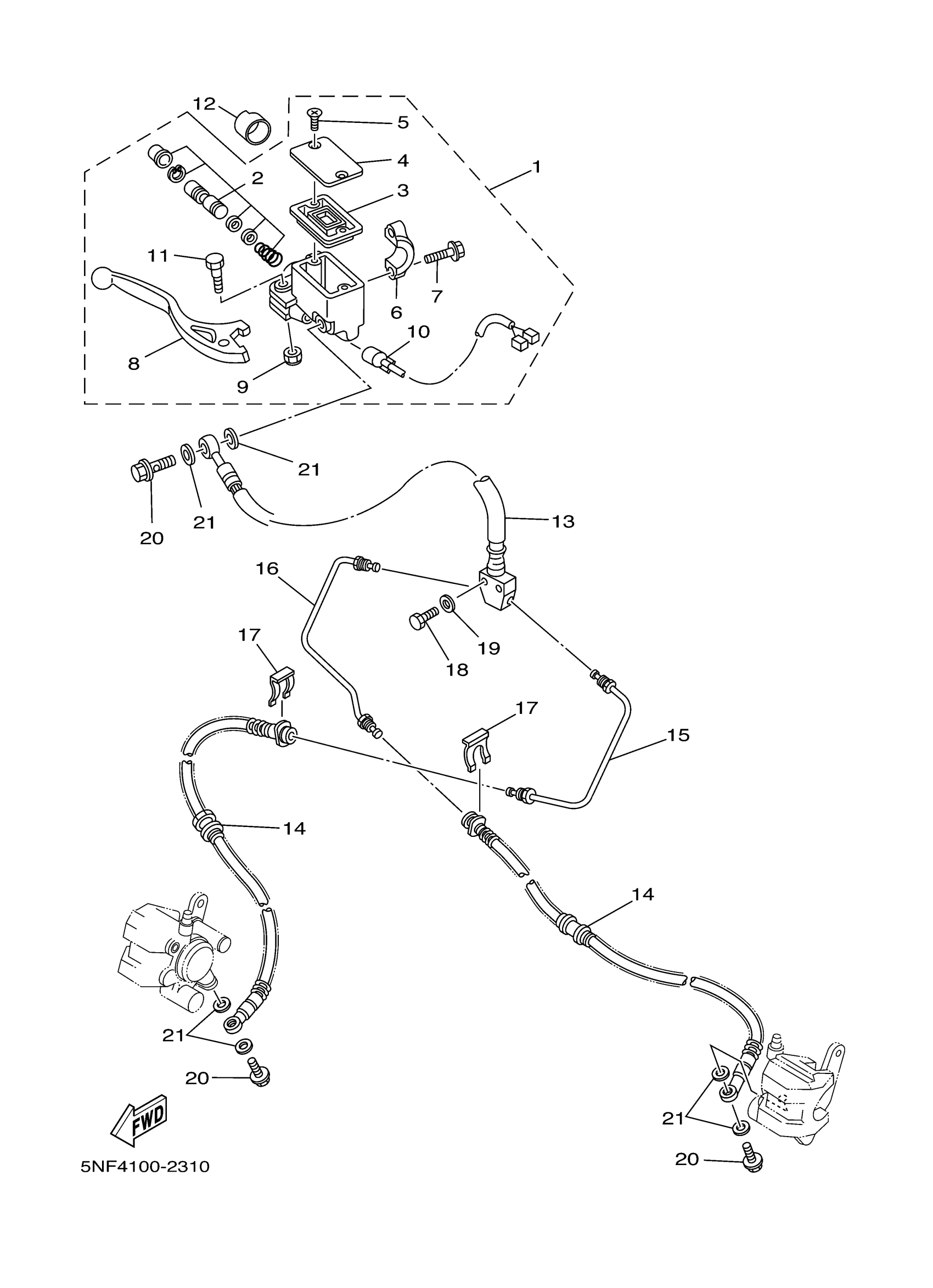

Yamaha YFM350XRC (WARRIOR) 5NF9 2003 FRONT MASTER CYLINDER Diagram

MASTER CYLINDER ASSY

5LP-2583T-03-00

Unavailable

CYLINDER KIT, MASTER

5LP-W0041-00-00

Unavailable

DIAPHRAGM, RESERVOIR

4L0-25854-00-00

$27.99

CAP, RESERVOIR

5LP-25852-02-00

$22.99

SCREW

3D8-2589H-10-00

$7.99

BRACKET, MASTER CYLINDER

5LP-25867-00-00

Unavailable

BOLT, FITTING

5MV-25833-00-00

$6.99

LEVER 2

5LP-83922-00-00

$38.99

NUT, U(4NK)

95604-06100-00

$8.49

FRONT STOP SWITCH ASSY

5LP-83980-00-00

$64.99

BOLT, LEVER

5MV-2589F-00-00

$6.99

COLLAR

1UY-26259-00-00

$19.49

. HOSE, BRAKE 1

3GD-25872-02-00

Unavailable

HOSE, BRAKE 2

3GD-25873-03-00

Unavailable

PIPE, BRAKE

3GD-25871-00-00

Unavailable

PIPE, BRAKE 2

3GD-25882-00-00

Unavailable

CIRCLIP

2GU-25866-00-00

Unavailable

BOLT, HEXAGON

97017-08025-00

Unavailable

WASHER(6TA)

92907-08600-00

Unavailable

BOLT, UNION(3GM)

90401-10159-00

Unavailable

WASHER, PLATE(481)

90201-10118-00

Unavailable
