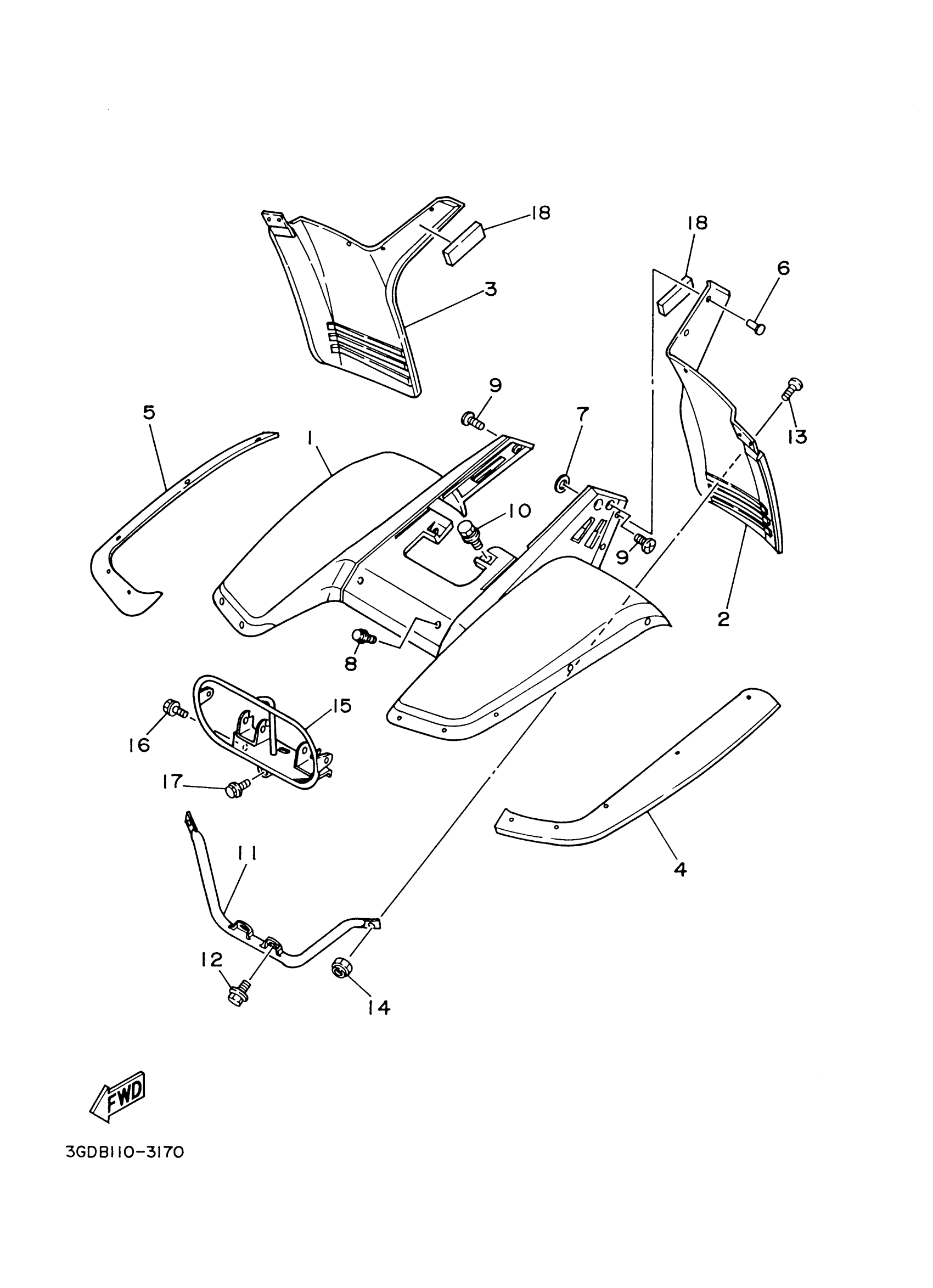

Yamaha YFM350XRC (WARRIOR) 5NF9 2003 FRONT FENDER Diagram

#

Description
Price

1

FRONT FENDER COMP. (DEEP PURPLISH BLUE SOLID E)

3GD-W2151-F2-00

Unavailable

1

FRONT FENDER COMP. (YAMAHA BLACK)

3GD-W2151-G2-00

Unavailable

2

FLAP ASSY 1

3GD-W2153-11-00

Unavailable

3

FLAP 2

1UY-21561-00-00

Unavailable

4

FENDER, OVER

1UY-21551-00-00

Unavailable

5

FENDER, OVER 2

1UY-21555-00-00

Unavailable

6

RIVET (856)

90267-48014-00

$2.90

7

WASHER, PLATE

90201-04027-00

$1.75

8

BOLT, WITH WASHER

90119-06242-00

$5.47

9

BOLT,HEX. SOCKET BUTTON

90111-05059-00

$2.00

10

BOLT, WITH WASHER

90119-06242-00

$5.47

11

STAY, FENDER 1

1UY-21513-00-00

Unavailable

12

BOLT, FLANGE

95817-06010-00

$3.65

13

SCREW (25G)

90149-06184-00

$2.20

14

NUT, SELF-LOCKING

95617-06100-00

$2.17

15

STAY, HEADLIGHT

3GD-23174-30-00

Unavailable

16

BOLT, FLANGE

95817-06010-00

$3.65

17

BOLT, FLANGE

95817-08012-00

Unavailable

18

DAMPER

3RW-21639-00-00

Unavailable
