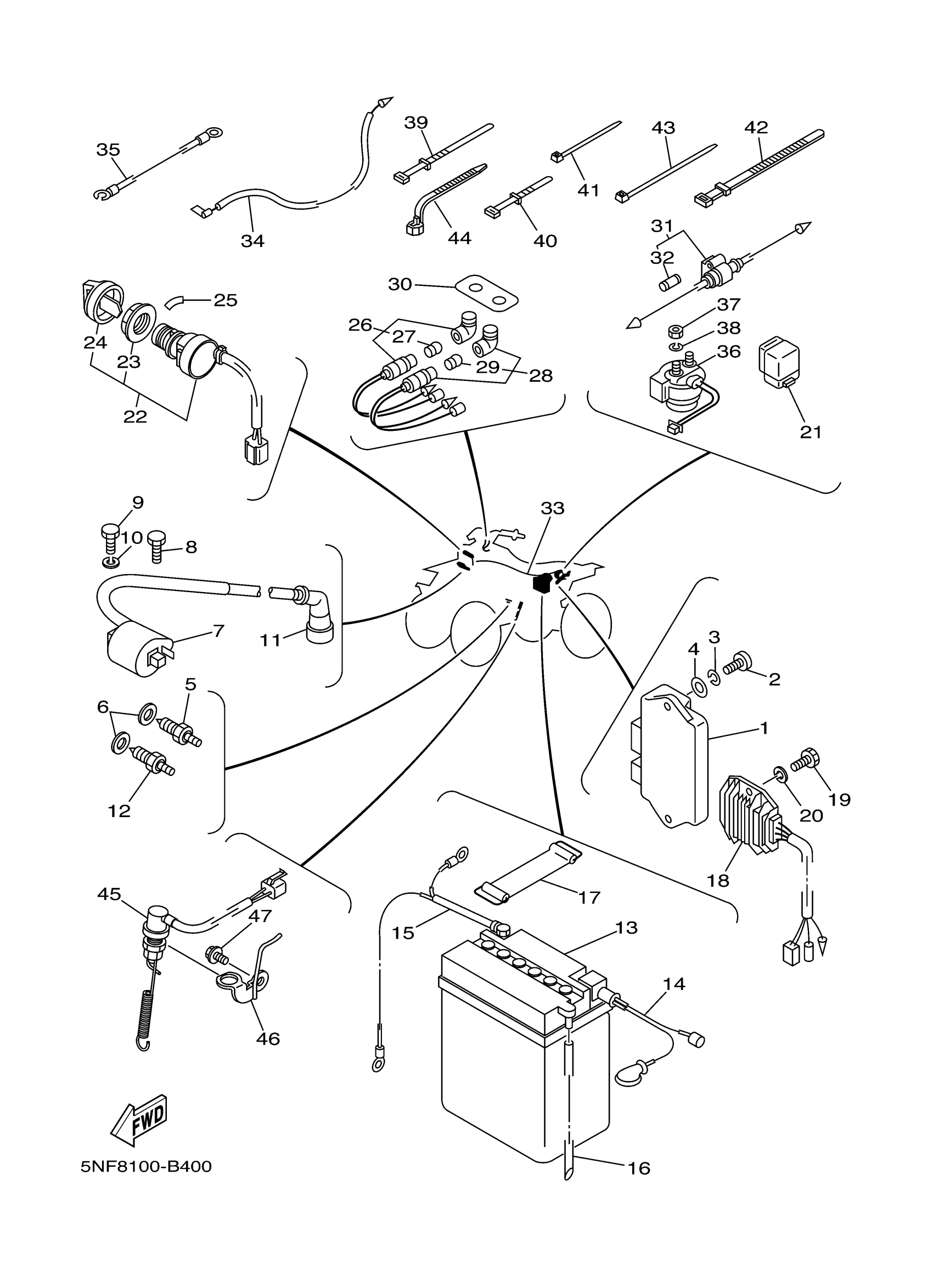

Yamaha YFM350XRC (WARRIOR) 5NF9 2003 ELECTRICAL 1 Diagram

#

Description
Price

1

C.D.I. UNIT ASSY

5NF-85540-00-00

Unavailable

2

SCREW, PAN

98517-06020-00

$8.49

3

WASHER, SPRING

92907-06100-00

$4.25

4

WASHER(6TA)

92907-06600-00

$2.72

5

NEUTRAL SWITCH ASSY

3GB-82540-01-00

$58.99

6

GASKET (1KH,1.0T)

90430-10148-00

$5.60

7

IGNITION COIL ASSY

5KM-82310-03-00

$46.99

8

BOLT (21V)

90109-06723-00

$8.49

9

BOLT, HEXAGON

97017-06020-00

$4.06

10

WASHER, SPRING

92907-06100-00

$4.25

11

PLUG CAP ASSY

3NS-82370-00-00

$37.99

12

NEUTRAL SWITCH ASSY

3GD-82540-11-00

$55.99

13

ACB12CA GS BATTERY WET PACK

ACB-12CA0-00-00

Unavailable

14

WIRE, PLUS LEAD

1YW-82115-00-00

$61.99

15

WIRE, MINUS LEAD

3GD-82116-00-00

$38.99

16

HOSE (L1500)

90445-084J0-00

Unavailable

17

BAND, BATTERY

337-82131-00-00

Unavailable

18

RECTIFIER & REGULATOR ASSY

4KB-81960-10-00

Unavailable

19

BOLT, HEXAGON

97017-06020-00

$4.06

20

WASHER(6TA)

92907-06600-00

$2.72

21

RELAY ASSY (3GD-01)

3GD-81950-01-00

Unavailable

22

MAIN SWITCH ASSY

5LP-82510-01-00

Unavailable

23

NUT, MAIN SWITCH

3HN-82569-00-00

Unavailable

24

CAP, KEY

3HN-82579-00-00

Unavailable

25

LABEL

29U-83585-10-00

Unavailable

26

PILOT LIGHT ASSY

24W-83530-10-00

Unavailable

27

BULB (12V-3.4W)

123-83516-21-00

Unavailable

28

PILOT LIGHT ASSY

52G-83530-10-00

Unavailable

29

BULB (12V-3.4W)

123-83516-21-00

Unavailable

30

LABEL

1UY-83585-00-00

Unavailable

31

FUSE HOLDER ASSY

1UY-82150-00-00

Unavailable

32

FUSE (15A)

1UY-82151-00-00

Unavailable

33

WIRE HARNESS ASSY

5NF-82590-00-00

Unavailable

34

WIRE, LEAD

3HN-82541-00-00

Unavailable

35

WIRE, SUB LEAD

3GD-82509-10-00

Unavailable

36

STARTER RELAY ASSY (MS5D-611)

4KD-81940-00-00

Unavailable

37

NUT(JN5)

95317-06700-00

Unavailable

38

WASHER, SPRING

92907-06100-00

$4.25

39

BAND, SWITCH CORD

437-83936-01-00

Unavailable

40

BAND, SWITCH CORD

437-83936-11-00

Unavailable

41

CLAMP

90465-10098-00

Unavailable

42

BAND, SWITCH CORD

437-83936-11-00

Unavailable

43

CLAMP

90464-16061-00

Unavailable

44

CLAMP(4FM)

90464-15195-00

Unavailable

45

STOP SWITCH ASSY

5NF-82530-00-00

Unavailable

46

STAY, STOP SWITCH

3GD-2144G-10-00

Unavailable

47

BOLT, FLANGE

95817-06010-00

Unavailable
