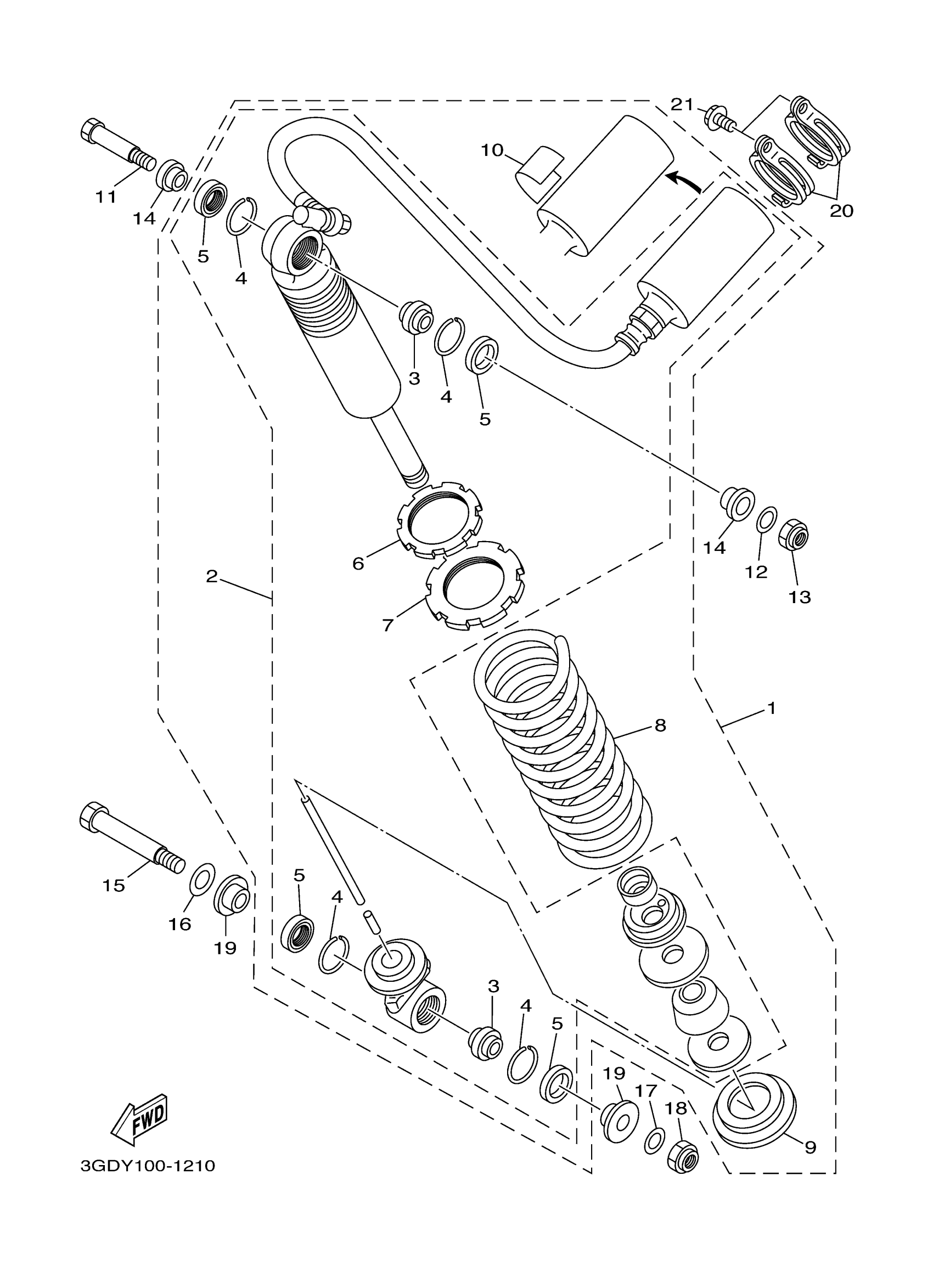

Yamaha YFM350XNC (WARRIOR) 5NF1 2001 REAR SUSPENSION Diagram

#

Description
Price

1

SHOCK ABSORBER ASSY, REAR

2XK-22210-12-36

Unavailable

2

DAMPER SUB ASSY

2XK-22201-01-00

Unavailable

3

BEARING(4GG)

93399-999T3-00

$52.57

4

CIRCLIP (23X)

93440-30113-00

$0.98

5

OIL SEAL (23X)

93104-18077-00

$9.03

6

RING, COVER

1RK-22215-00-00

$12.09

7

SEAT, SPRING LOWER

38W-22223-00-00

$34.15

8

SPRING

38W-22212-10-36

Unavailable

9

GUIDE, SPRING 1

3P6-22214-10-00

$13.78

10

LABEL, WARNING

4AA-22259-80-00

$11.85

11

BOLT

90109-10704-00

Unavailable

12

WASHER (7A9)

90201-100F7-00

$5.96

13

NUT, SELF LOCKING (23X)

90185-10120-00

$4.57

14

COLLAR (23X)

90387-127G8-00

$9.25

15

BOLT(38W)

90109-102A6-00

$8.55

16

WASHER, PLATE

90201-12027-00

Unavailable

17

WASHER, PLATE(6TC)

90201-10M05-00

Unavailable

18

NUT, SELF LOCKING (23X)

90185-10120-00

$4.57

19

COLLAR (23X)

90387-126H8-00

Unavailable

20

HOLDER, SUB TANK

1UY-22262-00-00

Unavailable

21

BOLT, FLANGE

95817-06016-00

Unavailable
