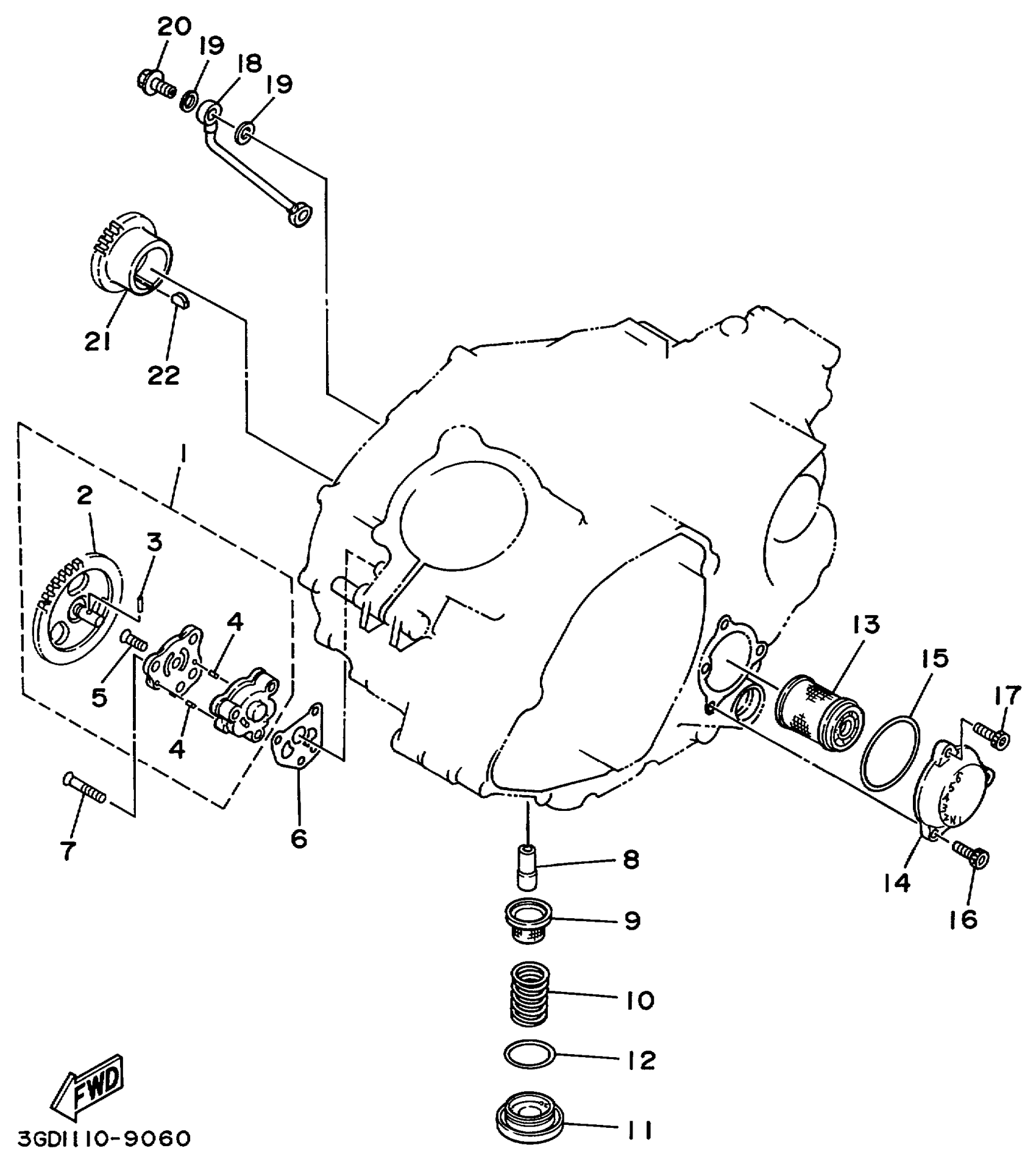

Yamaha YFM350XLC (WARRIOR) 3GDS 1999 OIL PUMP Diagram

#

Description
Price

1

OIL PUMP ASSY

1UY-13300-00-00

Unavailable

2

GEAR, PUMP DRIVEN 2

1UY-13326-00-00

Unavailable

3

PIN,DOWEL (137)

93603-12030-00

$2.07

4

PIN, DOWEL

93603-07073-00

$9.49

5

SCREW, CROSSRECESS (8G6)

90151-06005-00

$9.49

6

GASKET, PUMP COVER

3GD-13329-00-00

$7.99

7

SCREW, FLAT

98707-06030-00

$7.99

8

PIPE, OIL 1

2XK-13416-00-00

$7.99

9

STRAINER, OIL

51Y-13411-00-00

$37.99

10

SPRING, COMPRESSION (3Y1)

90501-18576-00

$8.49

11

PLUG, DRAIN

4HC-15351-00-00

$18.49

12

O-RING (5X4)

93210-35512-00

$12.49

13

ELEMENT ASSY, OIL CLEANER

1UY-13440-02-00

$16.49

14

COVER, OIL ELEMENT

3GD-13447-00-00

$61.99

15

O-RING (341)

93210-54175-00

$13.49

16

BOLT,SOCKET

91317-06020-00

Unavailable

17

BOLT,SOCKET

91317-06020-00

Unavailable

18

PIPE, DELIVERY 1

1UY-13161-01-00

Unavailable

19

GASKET

90430-08119-00

Unavailable

20

BOLT, UNION

90401-08004-00

Unavailable

21

GEAR, PUMP DRIVE

1UY-13324-00-00

Unavailable

22

KEY, WOODRUFF

90280-05001-00

Unavailable
