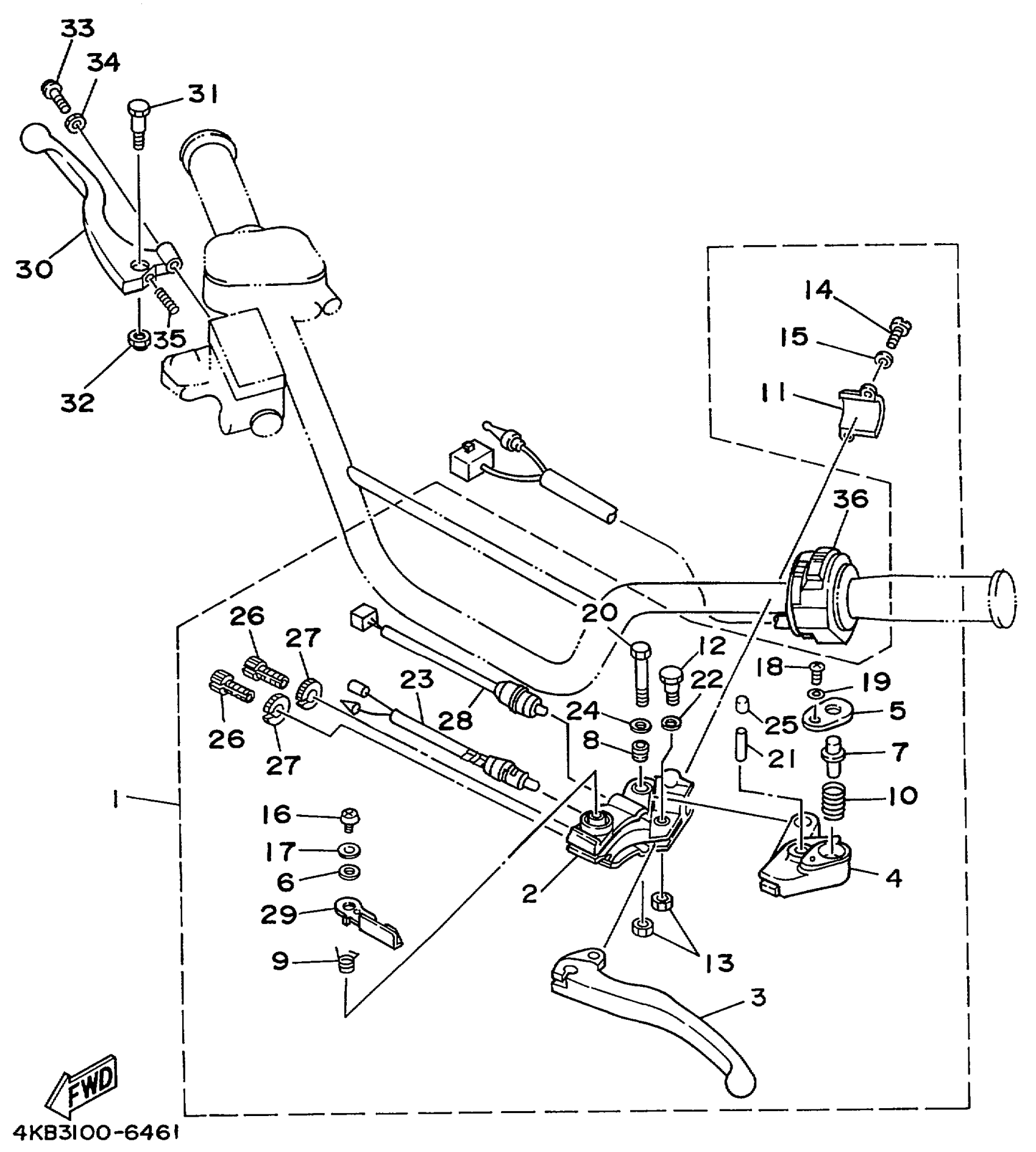

Yamaha YFM350XLC (WARRIOR) 3GDS 1999 HANDLE SWITCH LEVER Diagram

#

Description
Price

1

LEVER HOLDER ASSY (LEFT)

4KB-82910-10-00

Unavailable

2

. HOLDER, LEVER 1

4KB-82911-00-00

Unavailable

3

LEVER 1

1UY-83912-02-00

$30.99

4

LEVER 2

1UY-83922-01-00

Unavailable

5

COVER

1UY-83935-00-00

Unavailable

6

WASHER, SPECIAL

1UY-83909-00-00

$7.99

7

PIN, LOCK 1

1UY-83967-00-00

Unavailable

8

COLLAR, LEVER 1

1UY-83913-00-00

$7.99

9

SPRING, RETURN

1UY-83966-00-00

$6.99

10

SPRING

1UY-83962-00-00

$2.34

11

HOLDER, LEVER LOWER 1

2XJ-82913-00-00

Unavailable

12

BOLT 168217380000

90109-06017-00

Unavailable

13

NUT, SELF-LOCKING

95617-06100-00

$8.49

14

BOLT, HEXAGON

97017-06025-00

$4.24

15

WASHER(6TA)

92907-06600-00

$2.72

16

SCREW, PAN HEAD(3LA)

98517-05010-00

Unavailable

17

WASHER(1RW)

92907-05600-00

Unavailable

18

SCREW, PAN HEAD(3AC)

98517-03008-00

Unavailable

19

WASHER(3SX)

92907-03600-00

Unavailable

20

BOLT(8BC)

97017-06040-00

Unavailable

21

PIN,SPRING (648)

91690-40022-00

Unavailable

22

WASHER, PLATE 1562722600

90201-08083-00

Unavailable

23

FRONT STOP SWITCH ASSY

1YW-83980-00-00

Unavailable

24

WASHER(6TA)

92907-06200-00

Unavailable

25

CAP 1

1UY-83956-00-00

Unavailable

26

BOLT

90123-08002-00

Unavailable

27

NUT

90179-08030-00

Unavailable

28

SWITCH

4KB-82917-00-00

Unavailable

29

LOCK, LEVER ASSY

4KB-W8393-00-00

Unavailable

30

LEVER 2

1RX-83922-02-00

Unavailable

31

BOLT (4L0)

90109-06577-00

Unavailable

32

NUT, SELF-LOCKING

95617-06100-00

$8.49

33

SCREW (2L0)

90149-06131-00

Unavailable

34

NUT HEXAGON 306839270000

90170-06010-00

Unavailable

35

SPRING COMPRESSION306839240000

90501-10312-00

Unavailable

36

SWITCH, HANDLE 3

4GB-83973-09-00

Unavailable
