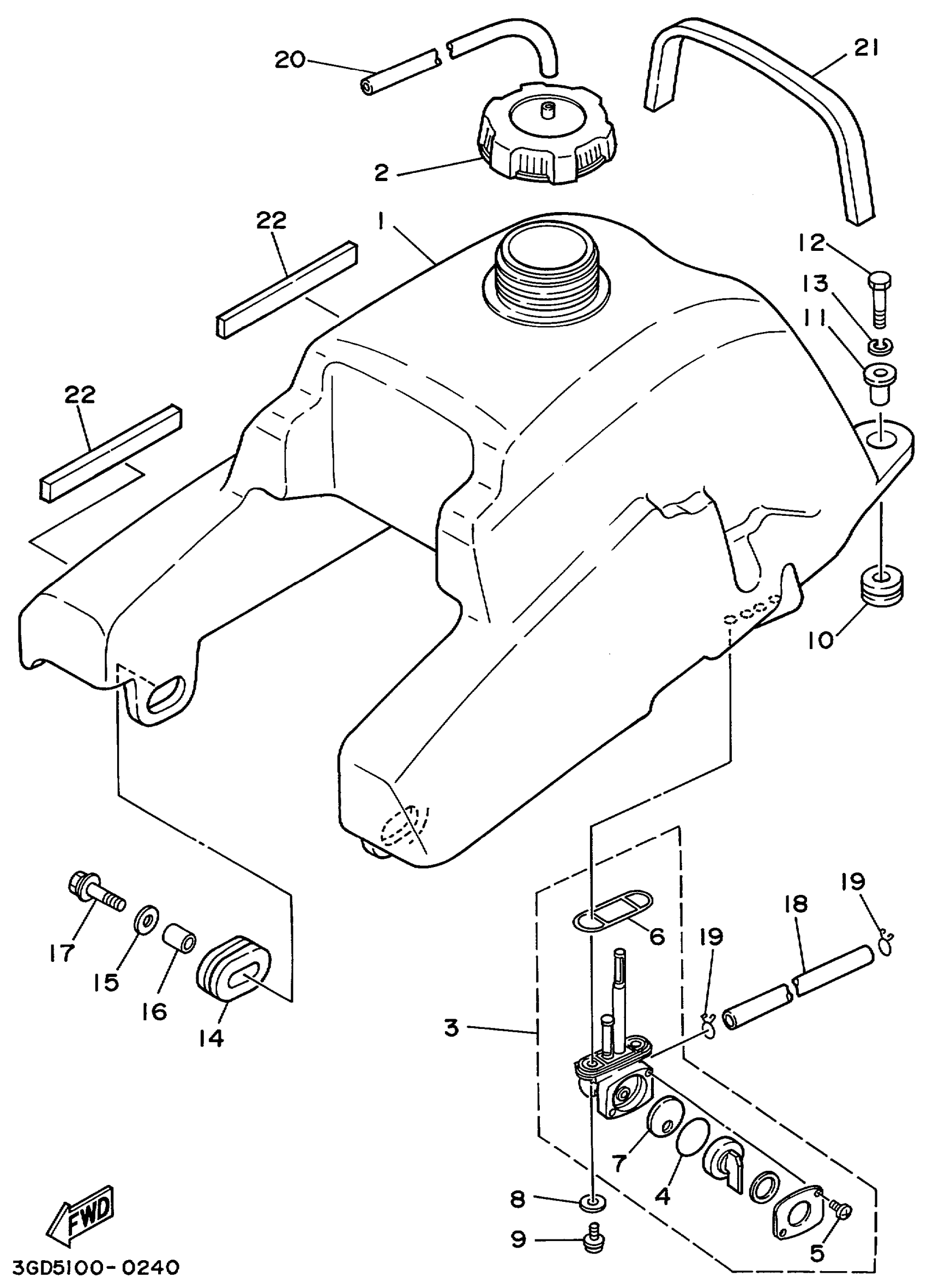

Yamaha YFM350XLC (WARRIOR) 3GDS 1999 FUEL TANK Diagram

#

Description
Price

1

FUEL TANK COMP.

1UY-24110-01-00

Unavailable

2

CAP ASSY

5MV-24610-00-00

$58.99

3

FUEL COCK ASSY 1

21V-24500-20-00

$51.99

4

SEAL, COCK

3AJ-24534-01-00

$10.99

5

SCREW, PAN HEAD (J10)

98580-03008-00

$3.55

6

O-RING

4X8-24512-00-00

$8.99

7

VALVE PACKING

3AC-24523-00-00

$12.99

8

WASHER, PLATE(3MB)

90202-05187-00

$1.38

9

SCREW 256241430000

90149-06011-00

$5.60

10

GROMMET (4V1)

90480-18290-00

$8.49

11

COLLAR (29U)

90387-066H4-00

$8.49

12

BOLT, HEXAGON

97017-06030-00

$3.61

13

WASHER, SPRING

92907-06100-00

$4.25

14

GROMMET(38W)

90480-01400-00

$13.49

15

WASHER, PLATE

90201-06090-00

$5.60

16

COLLAR (1T2)

90387-07598-00

Unavailable

17

BOLT, WITH WASHER (24X)

90119-06073-00

Unavailable

18

HOSE (L400)

90445-116K9-00

Unavailable

19

CLIP

90467-100A1-00

Unavailable

20

HOSE (L600)

90445-083J5-00

Unavailable

21

DAMPER, PLATE 1

1UY-2414H-00-00

Unavailable

22

DAMPER, LOCATING 1

3GD-24181-00-00

Unavailable
