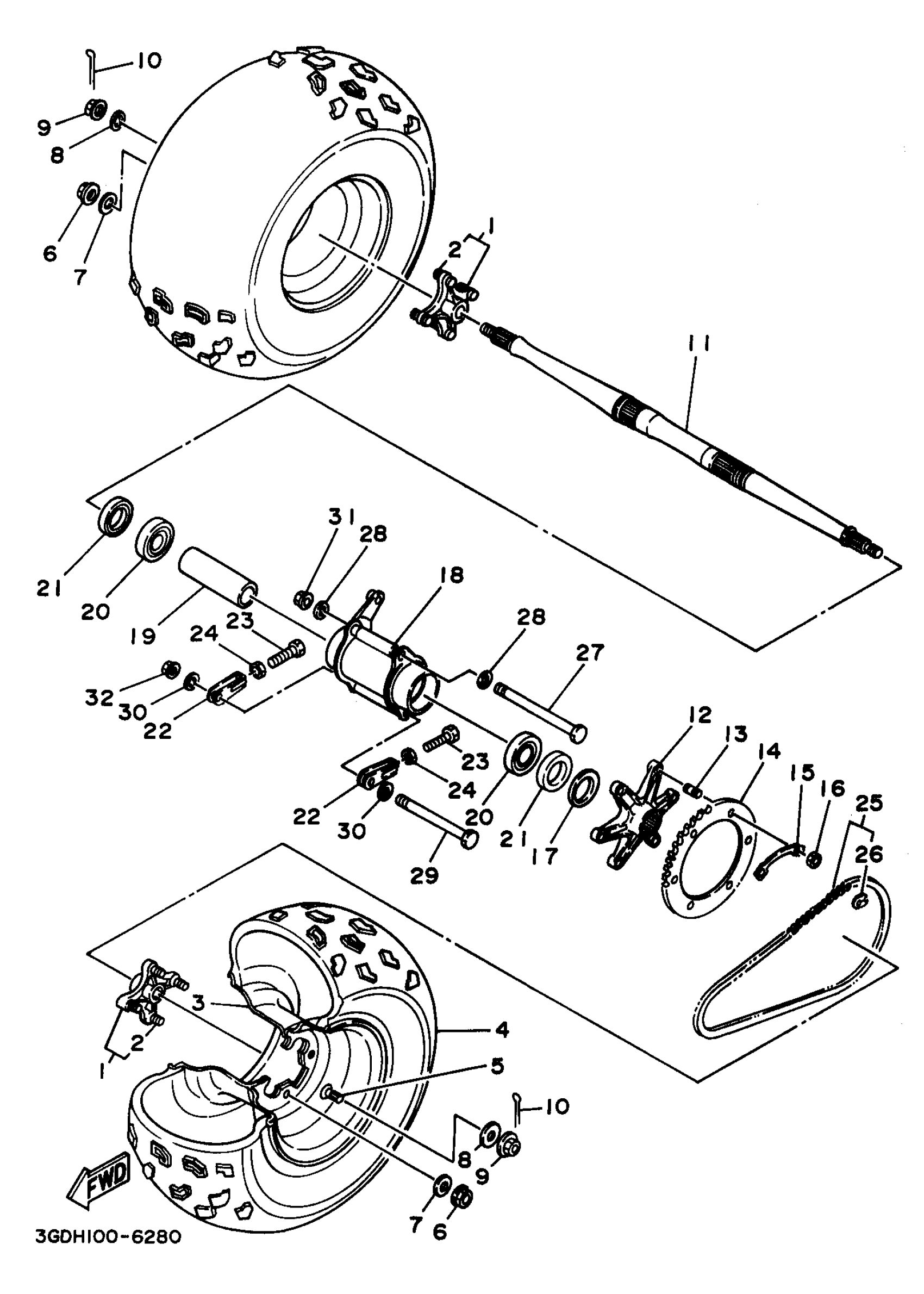

Yamaha YFM350XKC (WARRIOR) 3GDM 1998 REAR WHEEL Diagram

#

Description
Price

1

WHEEL SHAFT COLLAR ASSY.

1PE-F53K0-00-00

$74.99

2

BOLT, RIBBED NECK(3GD)

90114-10009-00

$7.49

3

REAR WHEEL COMP.

2XK-25390-03-YY

Unavailable

4

TIRE (AT22X10-9*KT775B T/L N)

94110-090X4-00

Unavailable

5

VALVE, RIM(2GH)

93900-00030-00

$16.99

6

NUT, FLANGE(8AB)

95707-10500-00

$3.18

7

WASHER, PLAIN(3BM)

92907-10200-00

$4.99

8

WASHER, PLATE

90201-14226-00

$5.60

9

NUT, CASTLE (29U)

90171-14037-00

$11.49

10

PIN, COTTER

91490-30030-00

$8.49

11

AXLE, WHEEL

3GD-25381-00-00

Unavailable

12

COLLAR, SPROCKET AXLE

3GD-25386-00-00

Unavailable

13

BOLT, STUD(2XJ)

90116-08507-00

$9.49

14

SPROCKET, DRIVEN (40T)

2XJ-25440-21-00

$42.99

15

WASHER

2XJ-25412-00-00

$4.32

16

NUT (3Y2)

90170-08258-00

Unavailable

17

COVER, HUB DUST

1UY-25367-00-00

Unavailable

18

HUB, REAR

3GD-25311-11-35

Unavailable

19

SPACER, BEARING

2XK-25317-00-00

Unavailable

20

BEARING

93306-00804-00

Unavailable

21

OIL SEAL(1UY)

93102-48370-00

Unavailable

22

PULLER, CHAIN 1

3GD-25388-00-00

Unavailable

23

BOLT(4SR)

90101-08777-00

Unavailable

24

NUT(6TA)

95337-08600-00

Unavailable

25

CHAIN

9Y581-87097-00

Unavailable

26

JOINT, CHAIN

94681-87011-00

Unavailable

27

BOLT(3GD)

90101-12695-00

Unavailable

28

WASHER, PLATE (4N0)

90201-126A7-00

Unavailable

29

BOLT(3GD)

90101-10689-00

Unavailable

30

WASHER, PLATE (17K)

90201-106F2-00

Unavailable

31

NUT(3GG)

90179-12588-00

Unavailable

32

NUT(4KG)

90179-10658-00

Unavailable
