Description

Price

1

REAR FENDER COMP.

3GD-W2161-B2-00

Unavailable

1

REAR FENDER COMP.

3GD-W2161-C2-00

Unavailable

2

BOLT, WITH WASHER

90119-06152-00

$7.49

3

SCREW, ROUND HEAD(3JM)

90150-06037-00

$9.49

4

NUT, SELF-LOCKING

95617-06100-00

$8.49

5

WASHER(6TA)

92907-06200-00

$8.49

6

STAY, FENDER 1

1UY-21613-00-00

$55.99

7

STAY, FENDER 2

1UY-21614-00-00

Unavailable

8

BOLT, FLANGE

95817-06010-00

$4.73

9

DAMPER 2

1UY-21639-00-00

$7.99

10

DAMPER 1

1UY-21638-00-00

$7.99

11

DAMPER 1

1UY-21638-00-00

$7.99

12

FLAP

3GD-21691-00-00

Unavailable

13

FLAP

3GD-21621-00-00

Unavailable

14

SCREW(3JM)

90149-06306-00

$8.49

15

NUT, SELF-LOCKING

95617-06100-00

$8.49

16

WASHER(6TA)

92907-06200-00

$8.49

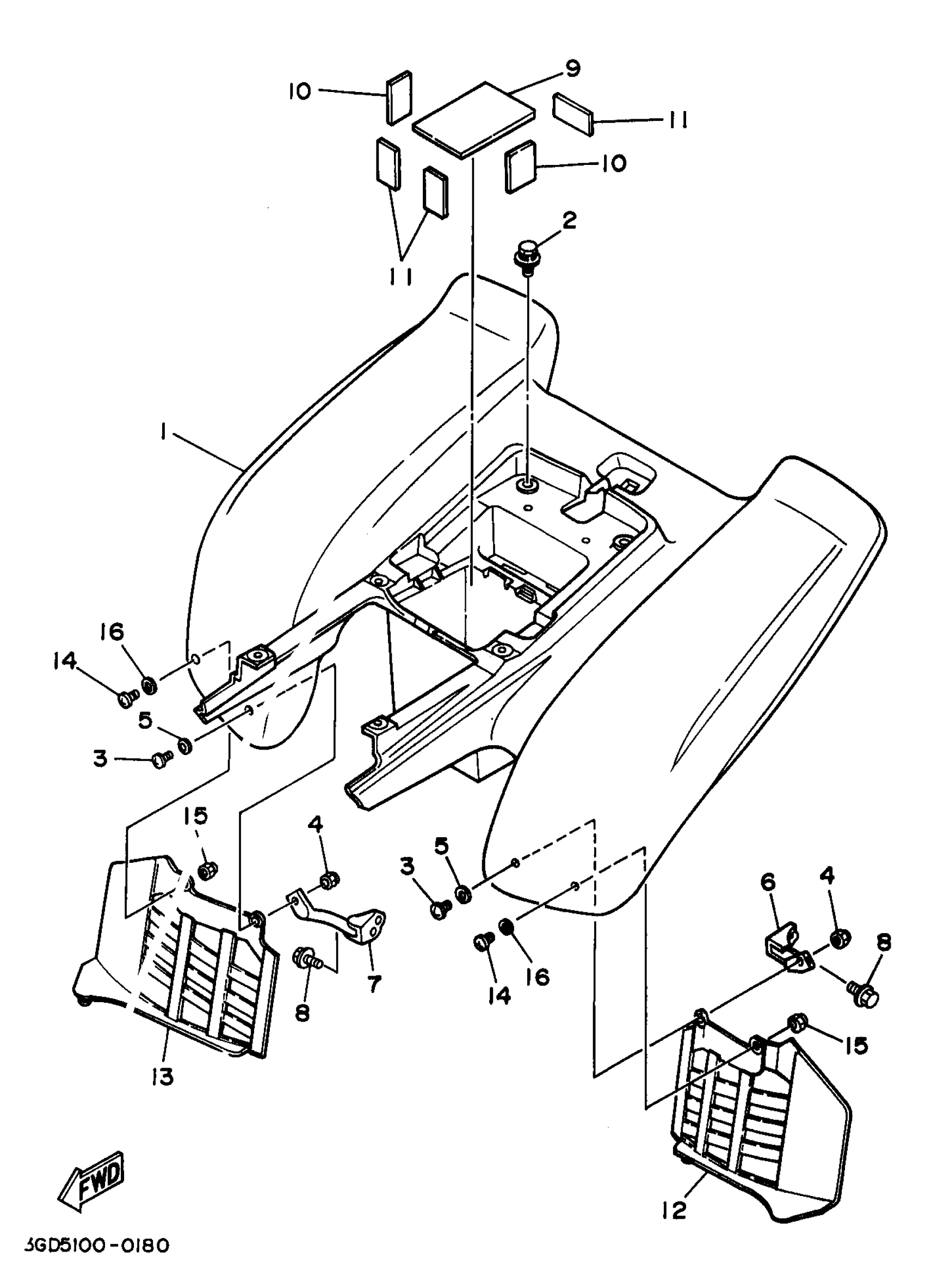

Yamaha YFM350XKC (WARRIOR) 3GDM 1998 REAR FENDER Diagram

REAR FENDER COMP.

REAR FENDER COMP.

BOLT, WITH WASHER

SCREW, ROUND HEAD(3JM)

NUT, SELF-LOCKING

WASHER(6TA)

STAY, FENDER 1

STAY, FENDER 2

BOLT, FLANGE

DAMPER 2

DAMPER 1

DAMPER 1

FLAP

FLAP

SCREW(3JM)

NUT, SELF-LOCKING

WASHER(6TA)
