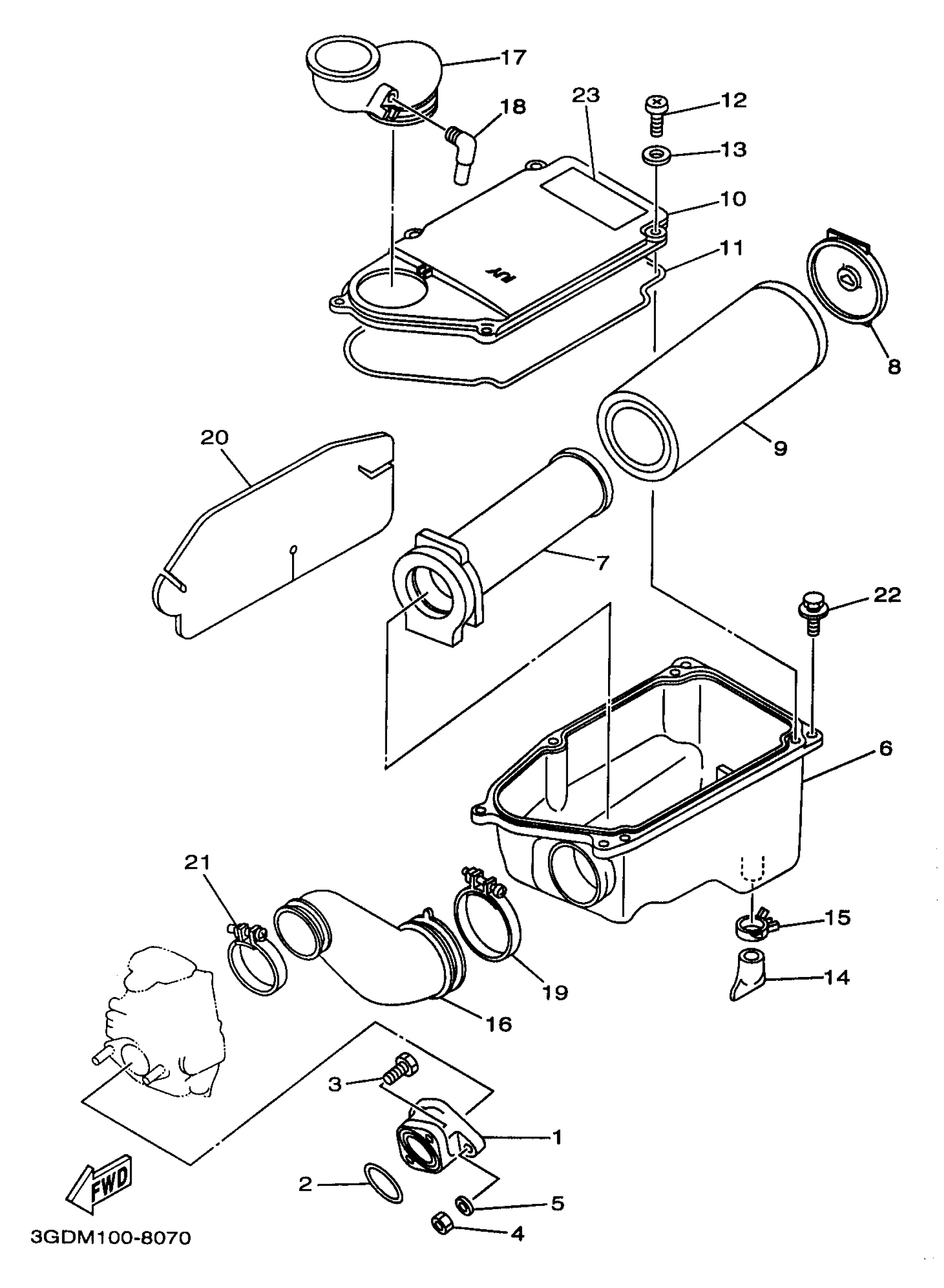

Yamaha YFM350XKC (WARRIOR) 3GDM 1998 INTAKE Diagram

#

Description
Price

1

JOINT, CARBURETOR 1

1UY-13586-02-00

$85.99

2

O-RING (10L)

93210-44545-00

$13.49

3

BOLT, SOCKET

91317-08025-00

$8.49

4

NUT(6TA)

95337-08600-00

$8.49

5

WASHER PLATE 141181390000

90201-08085-00

$9.49

6

CASE, AIR CLEANER 1

1UY-14411-02-00

$42.99

7

GUIDE

1UY-14458-01-00

$88.99

8

PLATE, ELEMENT FITTING

1UY-14468-00-00

$20.99

9

ELEMENT,AIR CLNR

1UY-14451-01-00

$14.49

10

CAP, CLEANER CASE 1

1UY-14412-01-00

$29.99

11

SEAL

1VJ-14462-00-00

$18.49

12

SCREW, PAN HEAD(JJ6)

98507-05016-00

$2.18

13

WASHER, PLAIN (646)

92990-05600-00

$0.80

14

SEAL

59V-14457-00-00

$6.99

15

CLIP (21V)

90467-22080-00

$8.49

16

JOINT, AIR CLEANER 1

1UY-14453-00-00

Unavailable

17

DUCT

1UY-14437-02-00

Unavailable

18

PIPE

31A-14419-00-00

Unavailable

19

HOSE CLAMP ASSY

90450-75002-00

Unavailable

20

PROTECTOR

3GD-1442F-00-00

Unavailable

21

HOSE CLAMP ASSY

90450-56001-00

Unavailable

22

BOLT, WITH WASHER (10V)

90119-06063-00

Unavailable

23

PLATE, EPA 3 (CALIFORNIA)

3GD-2179T-00-00

Unavailable
