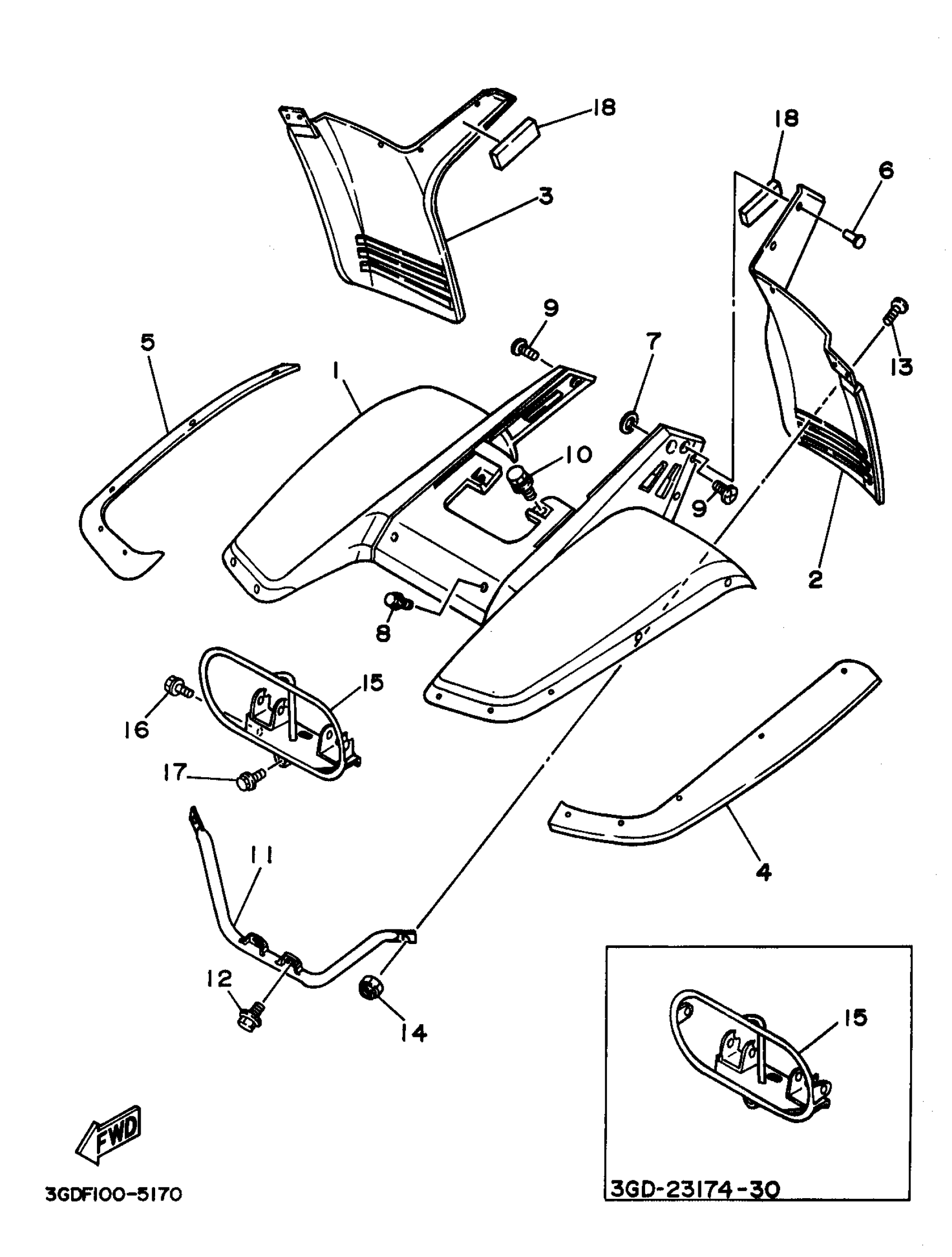

Yamaha YFM350XKC (WARRIOR) 3GDM 1998 FRONT FENDER Diagram

#

Description
Price

1

FRONT FENDER COMP. (RED)

3GD-W2151-B1-00

Unavailable

1

FRONT FENDER COMP.

3GD-W215D-C2-00

Unavailable

2

FLAP 1

3GD-W2153-15-00

Unavailable

3

FLAP 2

3GD-21561-00-00

Unavailable

4

FENDER, OVER

3GD-21551-00-00

Unavailable

5

FENDER, OVER 2

3GD-21555-00-00

Unavailable

6

RIVET (856)

90267-48014-00

$4.88

7

WASHER, PLATE

90201-04027-00

$3.02

8

BOLT, WITH WASHER

90119-06242-00

$7.49

9

BOLT,HEX. SOCKET BUTTON

90111-05059-00

$2.12

10

BOLT, WITH WASHER

90119-06242-00

$7.49

11

STAY, FENDER 1

1UY-21513-00-00

Unavailable

12

BOLT, FLANGE

95817-06010-00

$4.73

13

SCREW (25G)

90149-06184-00

$4.51

14

NUT, SELF-LOCKING

95617-06100-00

$8.49

15

STAY, HEADLIGHT

3GD-23174-30-00

Unavailable

16

BOLT, FLANGE

95817-06010-00

$4.73

17

BOLT, FLANGE

95817-08012-00

Unavailable

18

DAMPER

3RW-21639-00-00

Unavailable
