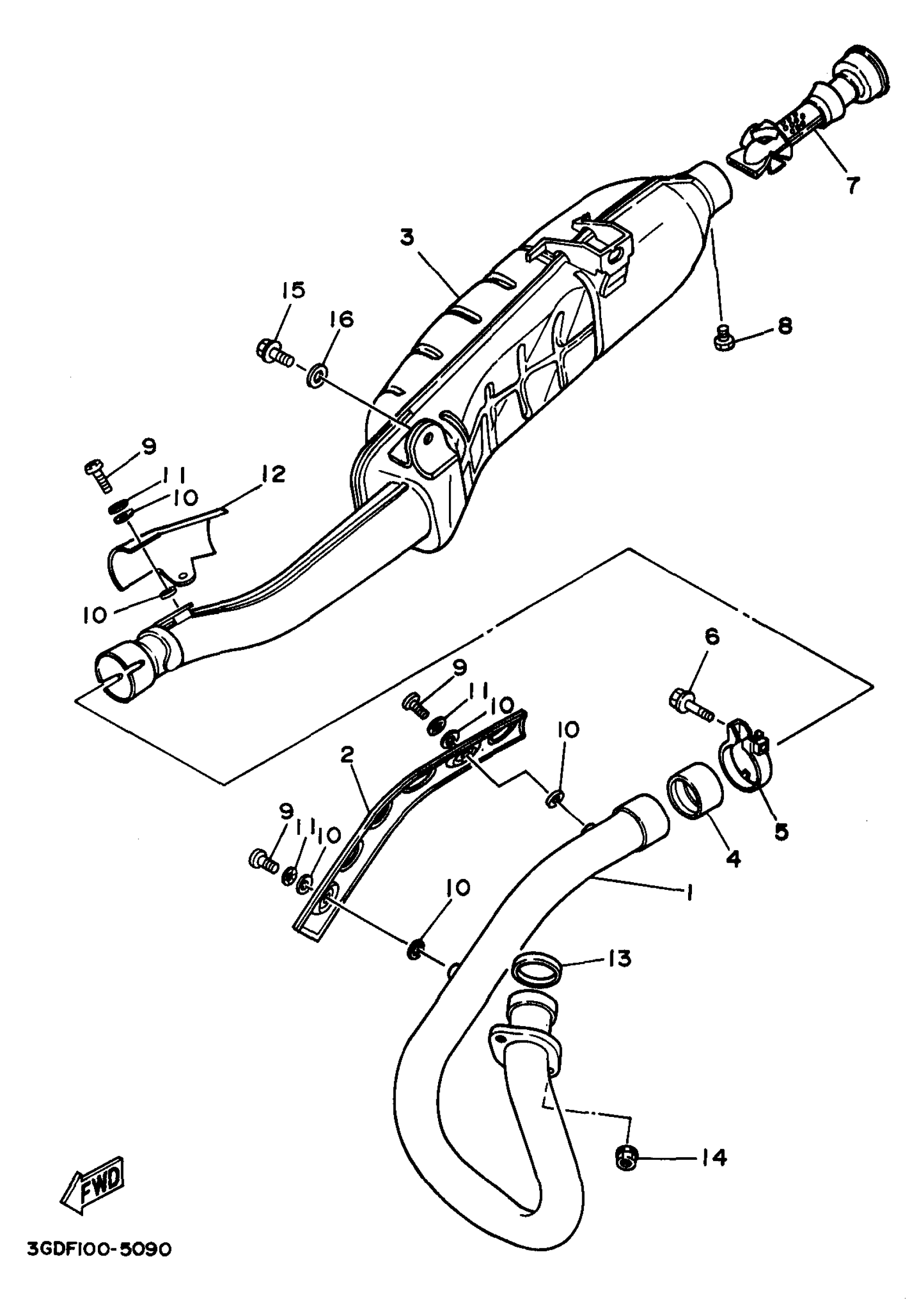

Yamaha YFM350XKC (WARRIOR) 3GDM 1998 EXHAUST Diagram

PIPE, EXHAUST 1

1UY-14611-03-00

Unavailable

PROTECTOR, EXHAUST PIPE

1YW-14628-00-00

Unavailable

MUFFLER 1

1UY-14711-05-00

$517.99

GASKET, SILENCER

3YF-14755-00-00

$34.99

BAND, MUFFLER

1UY-14715-00-00

Unavailable

BOLT, FLANGE(JN5)

95817-08045-00

$3.69

PIPE, OUTLET

21V-14752-00-00

Unavailable

BOLT,HEXAGON

97017-06008-00

$3.55

SCREW, BINDING

98907-06010-00

$1.65

WASHER, PROTECTOR

4BD-14766-00-00

$5.49

WASHER, WAVE(3RW)

90206-06090-00

$8.49

PROTECTOR, MUFFLER 1

1UY-14718-00-00

Unavailable

GASKET, EXHAUST PIPE

3GD-14613-00-00

$14.49

NUT(2UJ)

90179-06668-00

$8.49

BOLT, FLANGE(JN5)

95817-08016-00

$5.49

WASHER (853)

90201-08326-00

Unavailable
