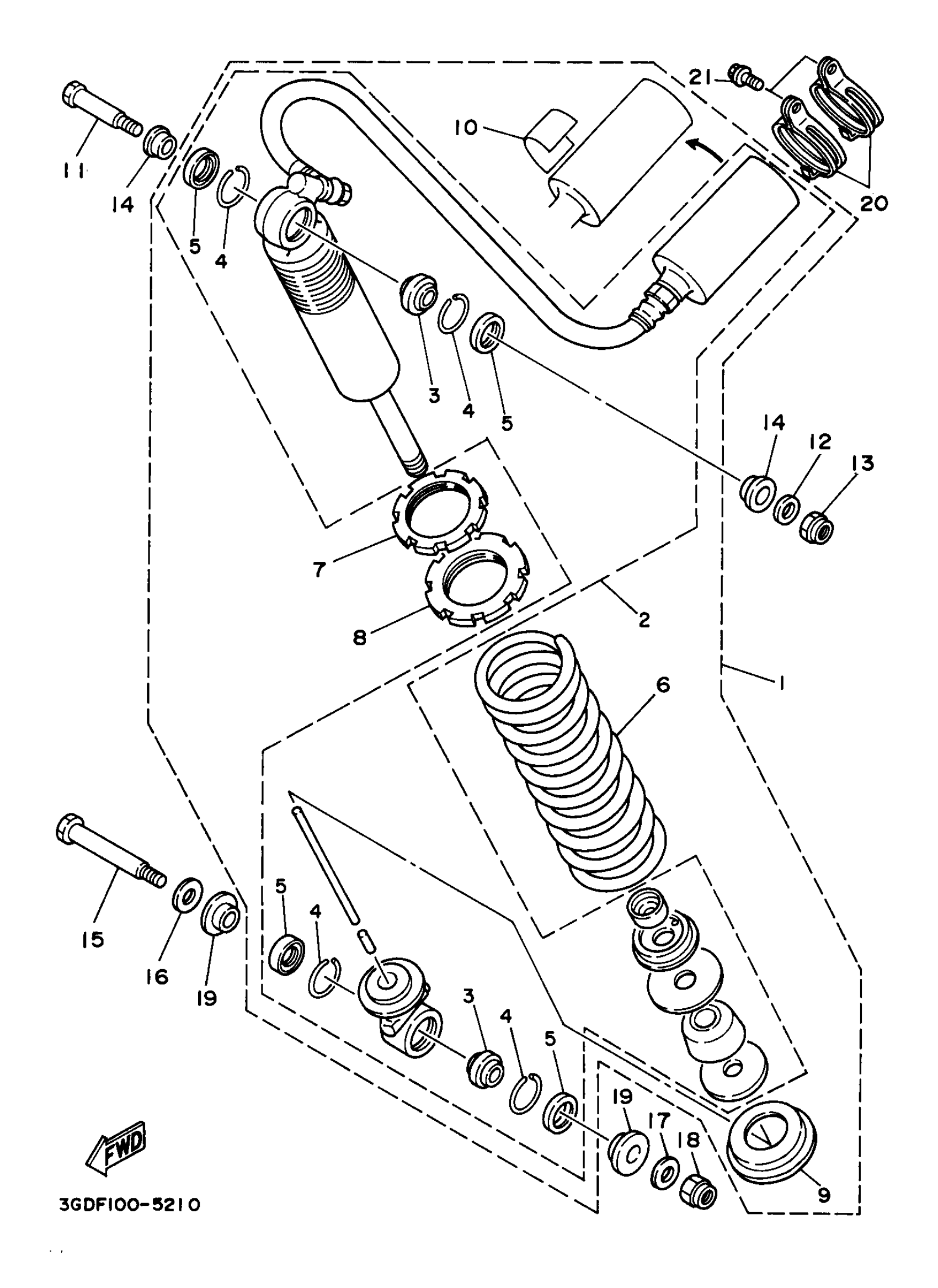

Yamaha YFM350XJ_MNH (WARRIOR) 3GDK 1997 REAR SUSPENSION Diagram

SHOCK ABSORBER ASSY, REAR

2XK-22210-21-P2

Unavailable

DAMPER SUB ASSY

2XK-22201-01-00

Unavailable

BEARING(4GG)

93399-999T3-00

$62.99

CIRCLIP (23X)

93440-30113-00

$1.70

OIL SEAL (23X)

93104-18077-00

$11.49

SPRING-YELLOW

38W-22212-10-P2

Unavailable

RING, COVER

1RK-22215-00-00

$24.99

SEAT, SPRING LOWER

38W-22223-00-00

$58.99

GUIDE, SPRING 1

3P6-22214-10-00

$17.49

. LABEL, WARNING

4AA-22259-00-00

Unavailable

BOLT

90109-10704-00

Unavailable

WASHER (7A9)

90201-100F7-00

$9.49

NUT, SELF LOCKING (23X)

90185-10120-00

$5.60

COLLAR (23X)

90387-127G8-00

$11.49

BOLT(38W)

90109-102A6-00

$11.49

WASHER, PLATE

90201-12027-00

Unavailable

WASHER, PLATE(6TC)

90201-10M05-00

Unavailable

NUT, SELF LOCKING (23X)

90185-10120-00

$5.60

COLLAR (23X)

90387-126H8-00

Unavailable

HOLDER, SUB TANK

1UY-22262-00-00

Unavailable

BOLT, FLANGE

95817-06016-00

Unavailable
