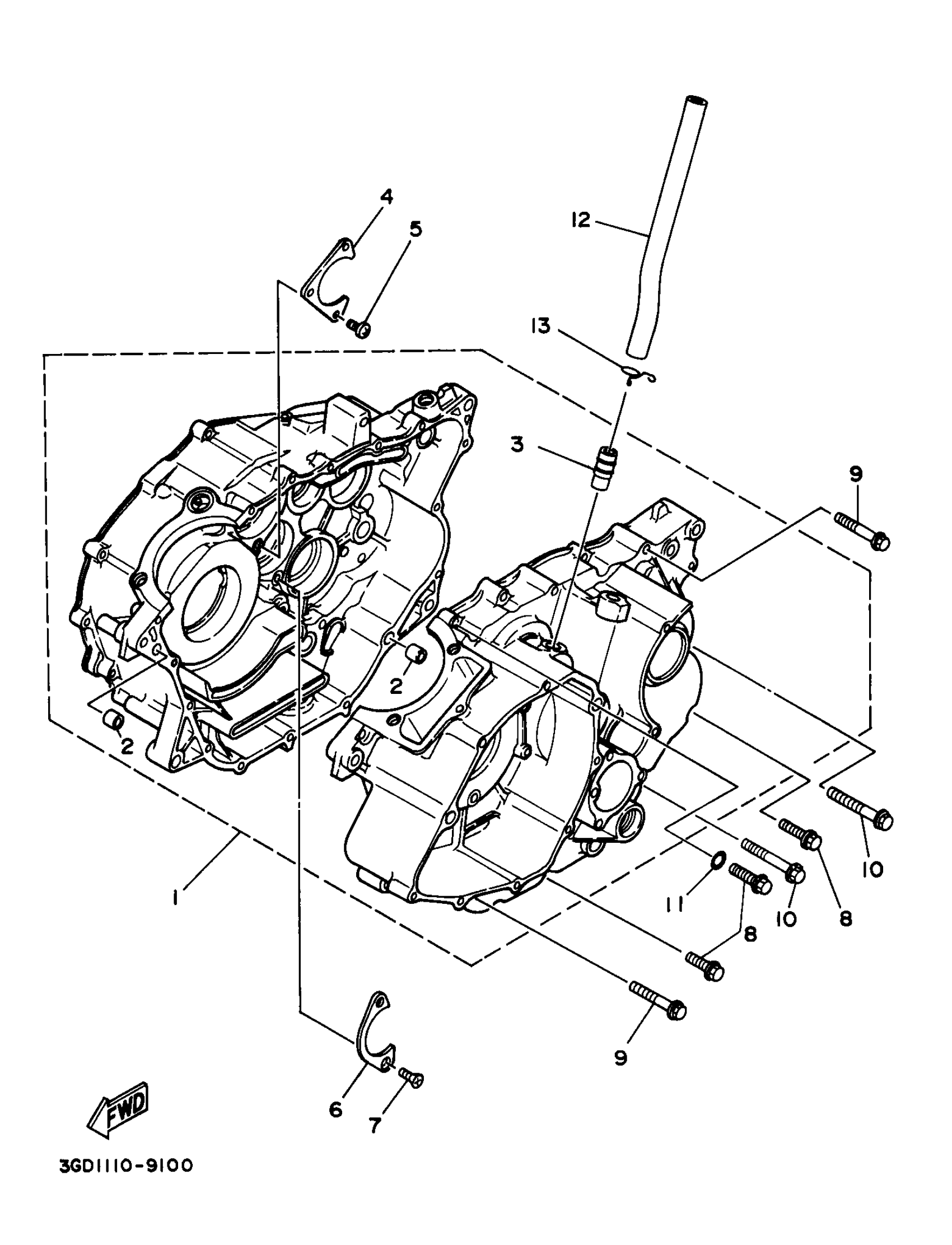

Yamaha YFM350XJ_MNH (WARRIOR) 3GDK 1997 CRANKCASE Diagram

#

Description
Price

1

CRANKCASE ASSY

3GD-15100-03-00

$1,184.99

2

PIN, DOWEL

99530-12016-00

$4.89

3

PIPE, BREATHER 2

371-11167-01-00

$13.49

4

PLATE, BEARING COVER

3R4-15381-00-00

$4.68

5

SCREW, PAN

98517-06012-00

$3.78

6

PLATE, BEARING COVER

1UY-15383-00-00

Unavailable

7

SCREW, FLAT HEAD(4EM)

98707-06016-00

$8.49

8

BOLT, SMALL FLANGE

95027-06030-00

$3.98

9

BOLT, WASHER BASED(4KG)

90105-06798-00

$7.49

10

BOLT, SMALL FLANGE

95027-06060-00

$2.87

11

GASKET 256113960000

90430-06014-00

Unavailable

12

HOSE

90445-16416-00

Unavailable

13

CLIP (371)

90467-14015-00

$8.49
