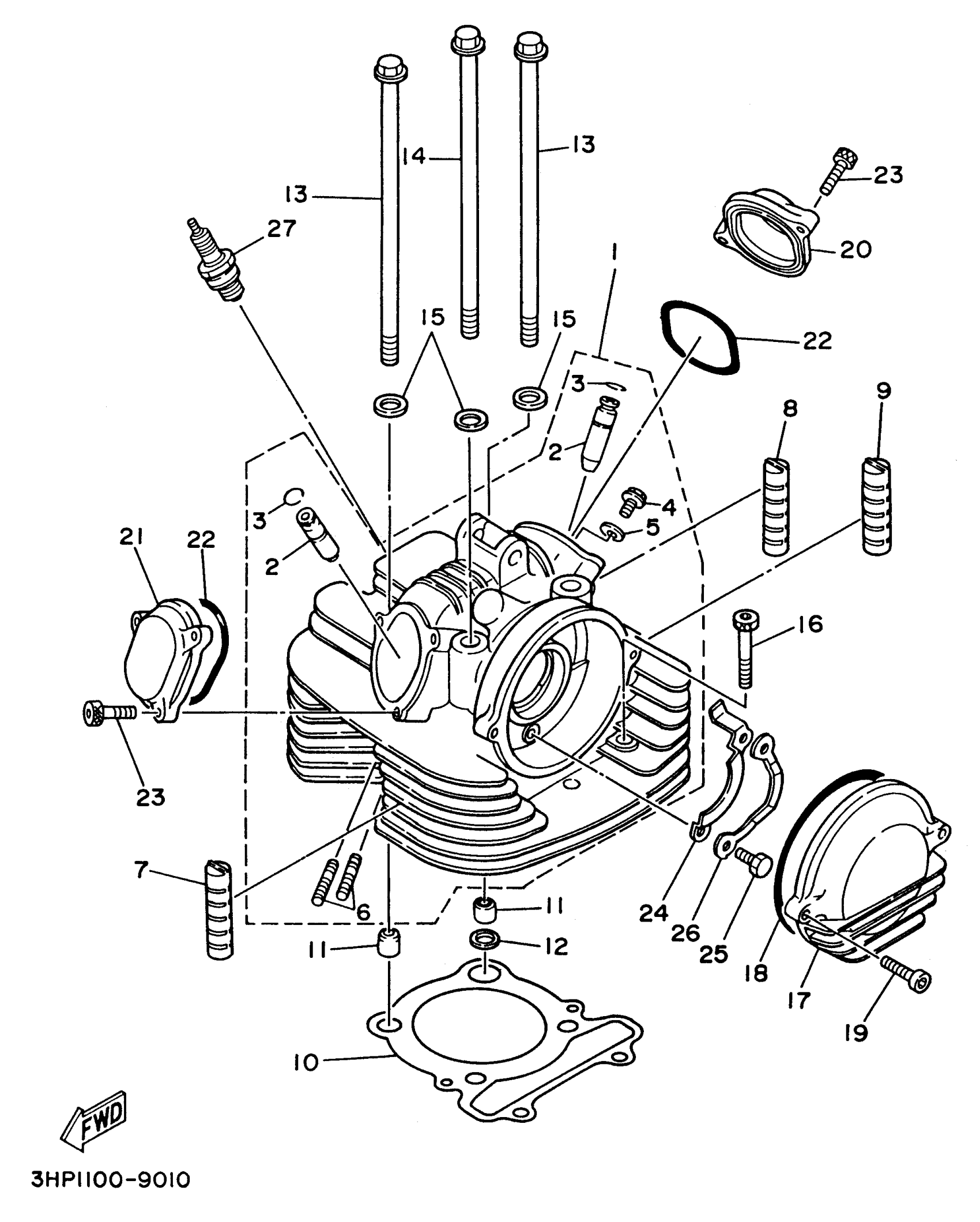

Yamaha YFM350XH (WARRIOR) 3GDH 1996 CYLINDER HEAD Diagram

#

Description
Price

1

CYLINDER HEAD ASSY

1UY-11110-02-00

Unavailable

2

GUIDE, INTAKE VALVE

3Y1-11133-11-00

$58.99

3

CIRCLIP (1L9)

93440-12052-00

$2.44

4

BOLT UNION 137131650000

90401-06001-00

Unavailable

5

GASKET (4V2)

90430-06166-00

$3.76

6

BOLT, STUD(2NL)

90116-06503-00

$8.49

7

ABSORBER

583-11127-00-00

$7.99

8

ABSORBER

583-11127-00-00

$7.99

9

ABSORBER

583-11127-00-00

$7.99

10

GASKET, CYLINDER HEAD 1

1UY-11181-01-00

$46.99

11

PIN, DOWEL

99530-14016-00

$3.80

12

GASKET (1L9)

90430-14131-00

$8.49

13

BOLT, FLANGE

90105-10137-00

$11.49

14

BOLT, FLANGE

90105-10136-00

$11.49

15

WASHER PLATE 341839090000

90201-10128-00

$4.82

16

BOLT, SOCKET

91317-08050-00

Unavailable

17

COVER, CYLINDER HEAD SIDE 1

3Y1-11185-00-00

Unavailable

18

O-RING (15A)

93211-06635-00

Unavailable

19

BOLT,SOCKET

91317-06025-00

Unavailable

20

COVER, CYLINDER HEAD SIDE 2

3Y1-11186-10-00

Unavailable

21

COVER, CYLINDER HEAD SIDE 3

2NL-11187-11-00

Unavailable

22

O-RING

93210-57634-00

Unavailable

23

BOLT,SOCKET

91317-06020-00

Unavailable

24

PLATE

3Y1-1111F-00-00

Unavailable

25

BOLT, HEXAGON

97017-06012-00

Unavailable

26

WASHER, LOCK (3Y1)

90215-06162-00

Unavailable

27

D8EA NGK SPLUG 10PK

D8E-A0000-00-00

Unavailable
