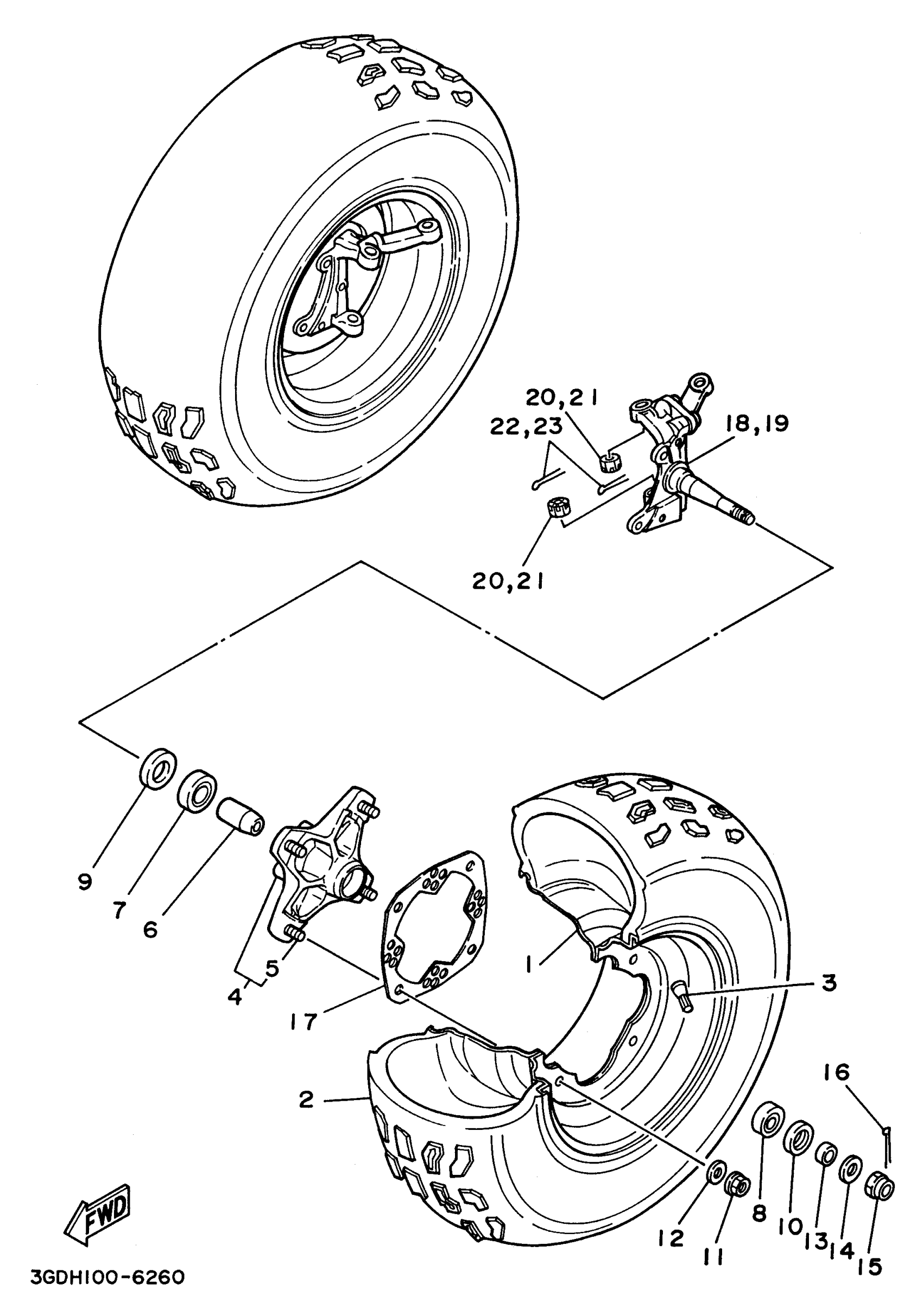

Yamaha YFM350XH_MNH (WARRIOR) 3GDH 1996 FRONT WHEEL Diagram

#

Description
Price

1

WHEEL,FRONT

2XK-25180-10-7H

Unavailable

2

TIRE (AT22X7-10 KT701)

94107-102Y4-00

Unavailable

3

VALVE, RIM(2GH)

93900-00030-00

$16.99

4

HUB, FRONT

3GD-25111-01-00

Unavailable

5

BOLT (38W)

90114-10007-00

$5.60

6

SPACER, BEARING

1UY-25117-00-00

$28.99

7

BEARING(3BN)

93306-00438-00

$37.99

8

BRG,R-B 6202Z 35MM 48G NT

93306-20204-00

$22.99

9

OIL SEAL(1UY)

93105-26026-00

$12.49

10

OIL SEAL (7H5)

93102-22216-00

$11.49

11

NUT, FLANGE(8AB)

95707-10500-00

$3.18

12

WASHER, PLAIN(3BM)

92907-10200-00

$4.99

13

COLLAR(1UY)

90387-150R1-00

$7.49

14

WASHER PLATE 248181370000

90201-14220-00

$8.49

15

NUT, CASTLE(2UJ)

90171-14056-00

$13.49

16

PIN, COTTER

91490-30030-00

Unavailable

17

COVER, PLATE

3GD-25127-10-00

Unavailable

18

STEERING KNUCKLE ASSY (LEFT)

3GD-23501-10-00

Unavailable

19

STEERING KNUCKLE ASSY (RIGHT)

3GD-23502-10-00

Unavailable

20

NUT, CASTLE

90171-10001-00

Unavailable

21

NUT, CASTLE

90171-10001-00

Unavailable

22

PIN, COTTER

91490-20025-00

Unavailable

23

PIN, COTTER

91490-20025-00

Unavailable
