Description

Price

1

FRAME COMP.

3GD-21110-23-P0

Unavailable

2

STAY, ENGINE 2

1UY-21315-00-00

$24.99

3

STAY, ENGINE 3

1UY-21316-00-00

$31.99

4

BOLT, FLANGE

95817-08012-00

$5.49

5

BOLT, FLANGE

95817-08055-00

$4.21

6

B0LT,FLANGE (1KT)

90105-10323-00

$5.60

7

BOLT, WASHER BASED(1KT)

90105-10409-00

Unavailable

8

BOLT, WASHER BASED(2NL)

90105-10480-00

$8.49

9

NUT, SELF-LOCKING

90185-08169-00

$8.49

10

NUT, SELF-LOCKING(JN5)

95607-10200-00

$4.19

11

TENSIONER

30X-22178-00-00

$35.99

12

BUSH

4V4-22184-00-00

$4.47

13

WASHER, PLATE(8AT)

90201-081R9-00

$9.49

14

BOLT, FLANGE

95817-08012-00

$5.49

15

PROTECTOR, ENGINE

1UY-21471-00-00

Unavailable

16

BOLT, FLANGE

95817-08012-00

$5.49

17

BEARING

93306-20348-00

Unavailable

18

OIL SEAL (25X44X6-810)

93102-25081-00

Unavailable

19

OIL SEAL (25X36X8-334)

93102-25099-00

Unavailable

20

HOLDER, BEARING

2GU-23872-00-00

Unavailable

21

LABEL

1UY-26137-00-00

Unavailable

22

TOOL KIT (24W-28100-00)

59V-28100-00-00

Unavailable

23

GAUGE, AIR

1NV-2811A-01-00

Unavailable

24

O-RING (102)

93210-41041-00

Unavailable

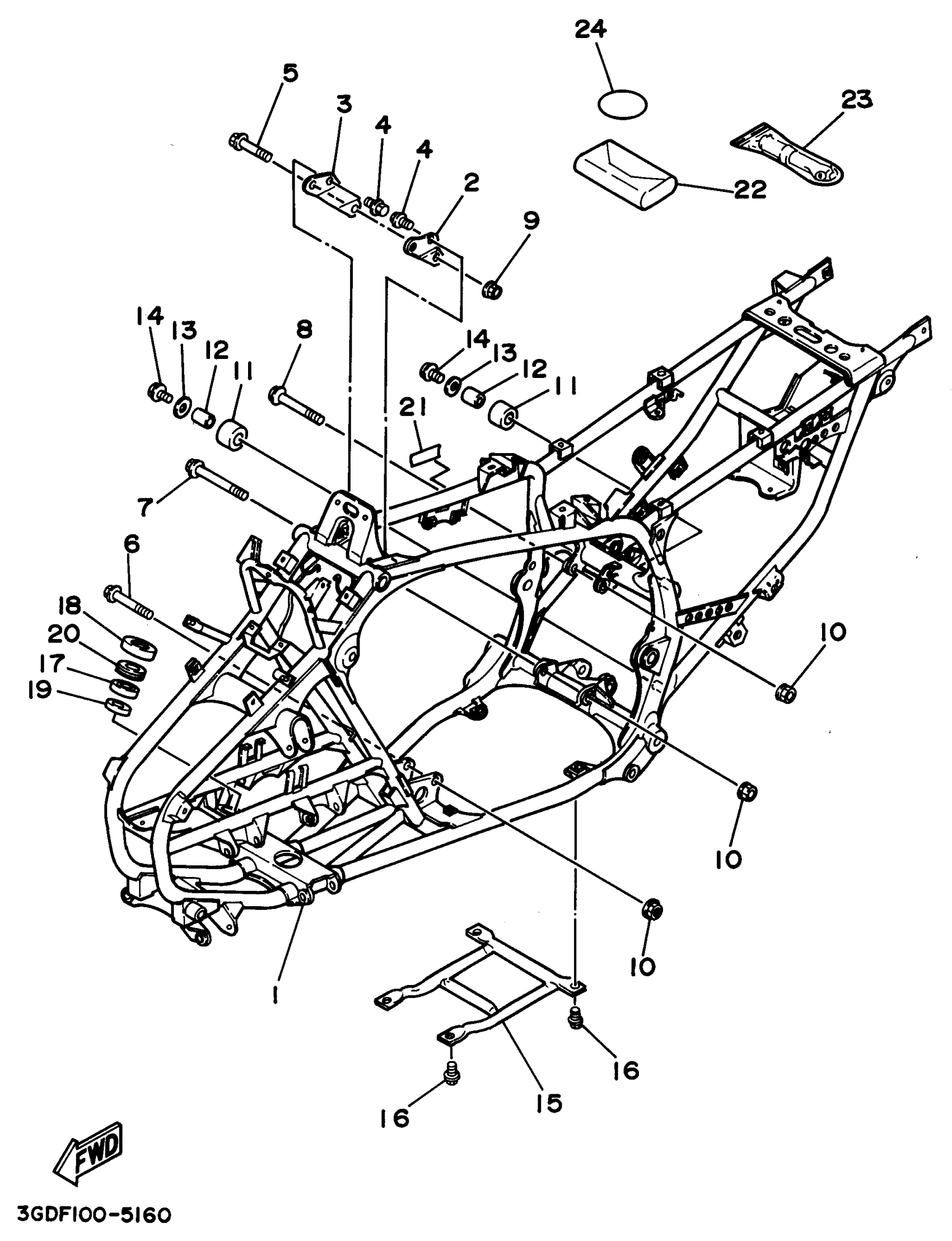

Yamaha YFM350XG (WARRIOR) 3GDF 1995 FRAME Diagram

FRAME COMP.

STAY, ENGINE 2

STAY, ENGINE 3

BOLT, FLANGE

BOLT, FLANGE

B0LT,FLANGE (1KT)

BOLT, WASHER BASED(1KT)

BOLT, WASHER BASED(2NL)

NUT, SELF-LOCKING

NUT, SELF-LOCKING(JN5)

TENSIONER

BUSH

WASHER, PLATE(8AT)

BOLT, FLANGE

PROTECTOR, ENGINE

BOLT, FLANGE

BEARING

OIL SEAL (25X44X6-810)

OIL SEAL (25X36X8-334)

HOLDER, BEARING

LABEL

TOOL KIT (24W-28100-00)

GAUGE, AIR

O-RING (102)
