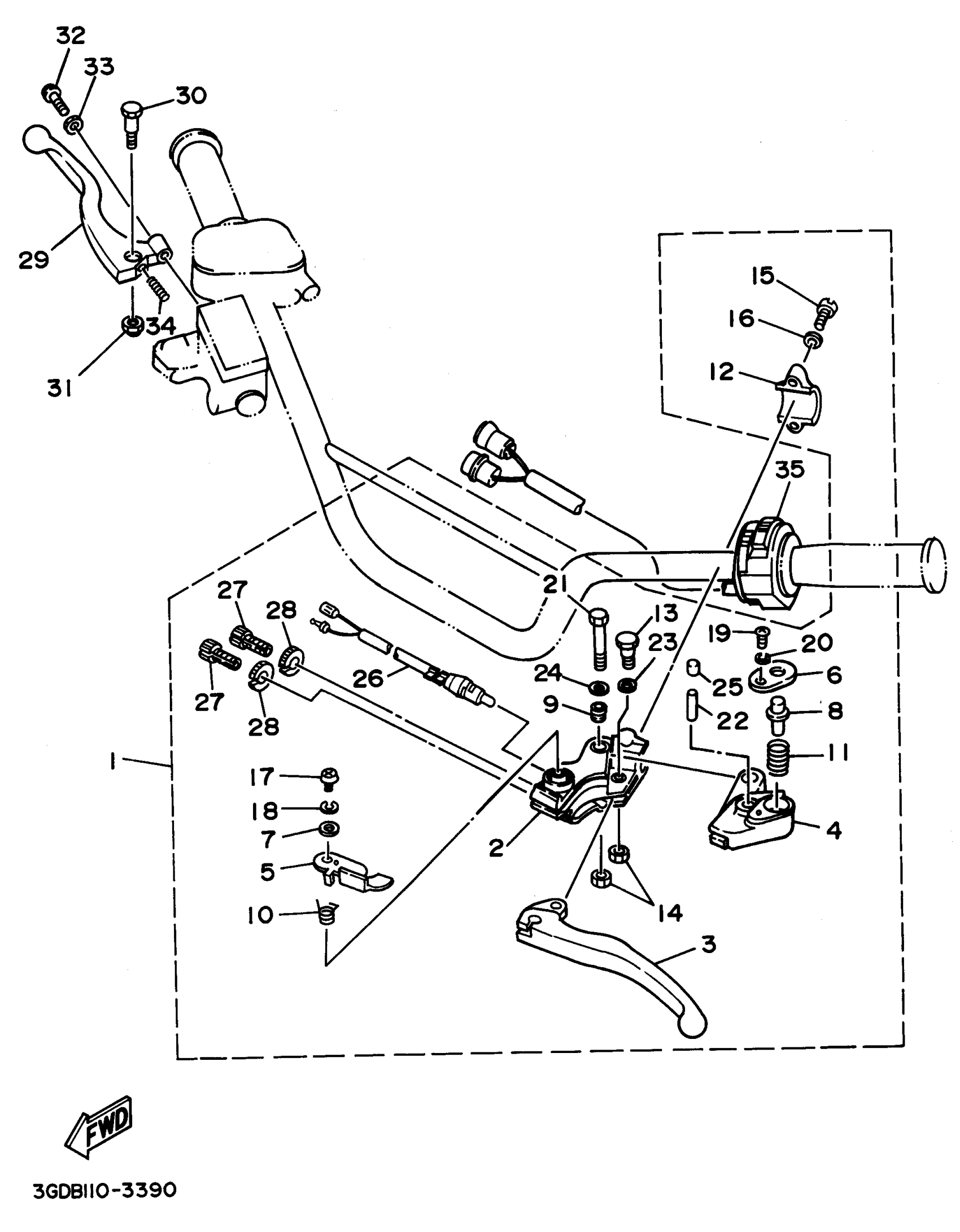

Yamaha YFM350XG_MNH (WARRIOR) 3GDF 1995 HANDLE SWITCH LEVER Diagram
#
Description
Price
1
LEVER HOLDER ASSY
1UY-82910-11-00
Unavailable
2
HOLDER, LEVER 1
99999-02990-00
Unavailable
4
LEVER 2
1UY-83922-01-00
Unavailable
5
LEVER, LOCK
1UY-83965-00-00
Unavailable
6
COVER
1UY-83935-00-00
Unavailable
8
PIN, LOCK 1
1UY-83967-00-00
Unavailable
12
HOLDER, LEVER LOWER
4V4-82913-00-00
Unavailable
16
WASHER(3SX)
92907-05100-00
Unavailable
17
SCREW, PAN HEAD(3LA)
98517-05010-00
Unavailable
18
WASHER(3SX)
92907-05100-00
Unavailable
19
SCREW, PAN HEAD(3AC)
98517-03008-00
Unavailable
20
WASHER, SPRING
92990-03100-00
Unavailable
21
BOLT(8BC)
97017-06040-00
Unavailable
22
PIN,SPRING (648)
91690-40022-00
Unavailable
23
WASHER, PLATE 1562722600
90201-08083-00
Unavailable
24
WASHER(6TA)
92907-06200-00
Unavailable
25
CAP 1
1UY-83956-00-00
Unavailable
26
FRONT STOP SWITCH ASSY
1YW-83980-00-00
Unavailable
27
BOLT
90123-08002-00
Unavailable
28
NUT
90179-08030-00
Unavailable
29
LEVER 2
1RX-83922-02-00
Unavailable
30
BOLT (4L0)
90109-06577-00
Unavailable
32
SCREW (2L0)
90149-06131-00
Unavailable
33
NUT HEXAGON 306839270000
90170-06010-00
Unavailable
34
SPRING COMPRESSION306839240000
90501-10312-00
Unavailable
35
SWITCH, HANDLE 3
59V-83973-09-00
Unavailable
