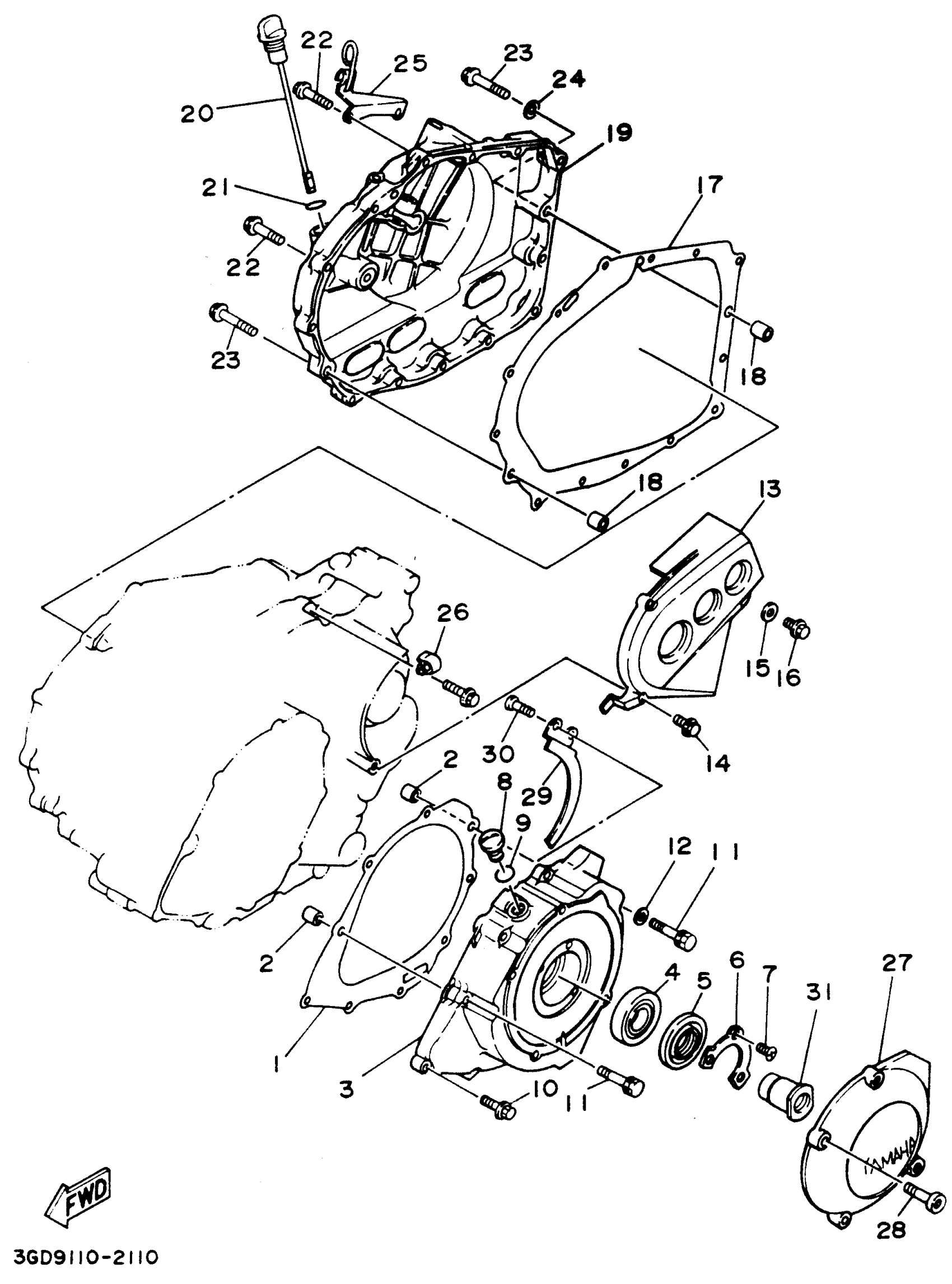

Yamaha YFM350XF (WARRIOR) 3GDD 1994 CRANKCASE COVER 1 Diagram

#

Description
Price

1

GASKET, CRANKCASE COVER 1

3GD-15451-00-00

$21.99

2

PIN, DOWEL

99530-12016-00

$4.89

3

ADAPTOR

3GD-15787-03-00

Unavailable

4

BEARING(55X)

93306-07801-00

$55.99

5

OIL SEAL

93102-28476-00

$22.99

6

WASHER, THRUST

1UY-15719-00-00

$24.99

7

SCREW, COUNTERSUNK (21V)

90151-05023-00

$9.49

8

PLUG, STRAIGHT SCREW(2HT)

90340-14117-00

$14.99

9

O-RING (2H9)

93210-14369-00

$7.49

10

BOLT, FLANGE(4KG)

95024-06025-00

$2.28

11

BOLT, SMALL FLANGE

95024-06045-00

$9.49

12

GASKET 256113960000

90430-06014-00

Unavailable

13

COVER, CRANKCASE 2

1UY-15421-00-00

$42.99

14

BOLT, FLANGE(3DM)

95024-06020-00

$5.60

15

WASHER, PLATE 8221447500

90201-06057-00

$5.60

16

BOLT, WASHER BASED(JA9)

90105-06696-00

Unavailable

17

GASKET, CRANKCASE COVER 2

3GD-15461-00-00

Unavailable

18

PIN, DOWEL

99530-12016-00

$4.89

19

COVER, CRANKCASE 3

3GD-15431-10-00

Unavailable

20

PLUG, OIL LEVEL

1UY-15362-01-00

Unavailable

21

O-RING (5Y1)

93210-19522-00

Unavailable

22

BOLT, FLANGE(4AS)

95024-06030-00

Unavailable

23

BOLT, FLANGE(4KM)

95024-06040-00

Unavailable

24

GASKET 256113960000

90430-06014-00

Unavailable

25

HOLDER, CLUTCH CABLE

1UY-15441-00-00

Unavailable

26

CLAMP(51Y)

90465-08277-00

Unavailable

27

COVER, CRANKCASE 1

3GD-15411-00-00

Unavailable

28

BOLT,SOCKET

91317-06025-00

Unavailable

29

STOPPER 1

1UY-81175-01-00

Unavailable

30

SCREW, PAN

98517-06012-00

Unavailable

31

BOSS, STARTER PULLEY

3GD-15777-10-00

Unavailable
