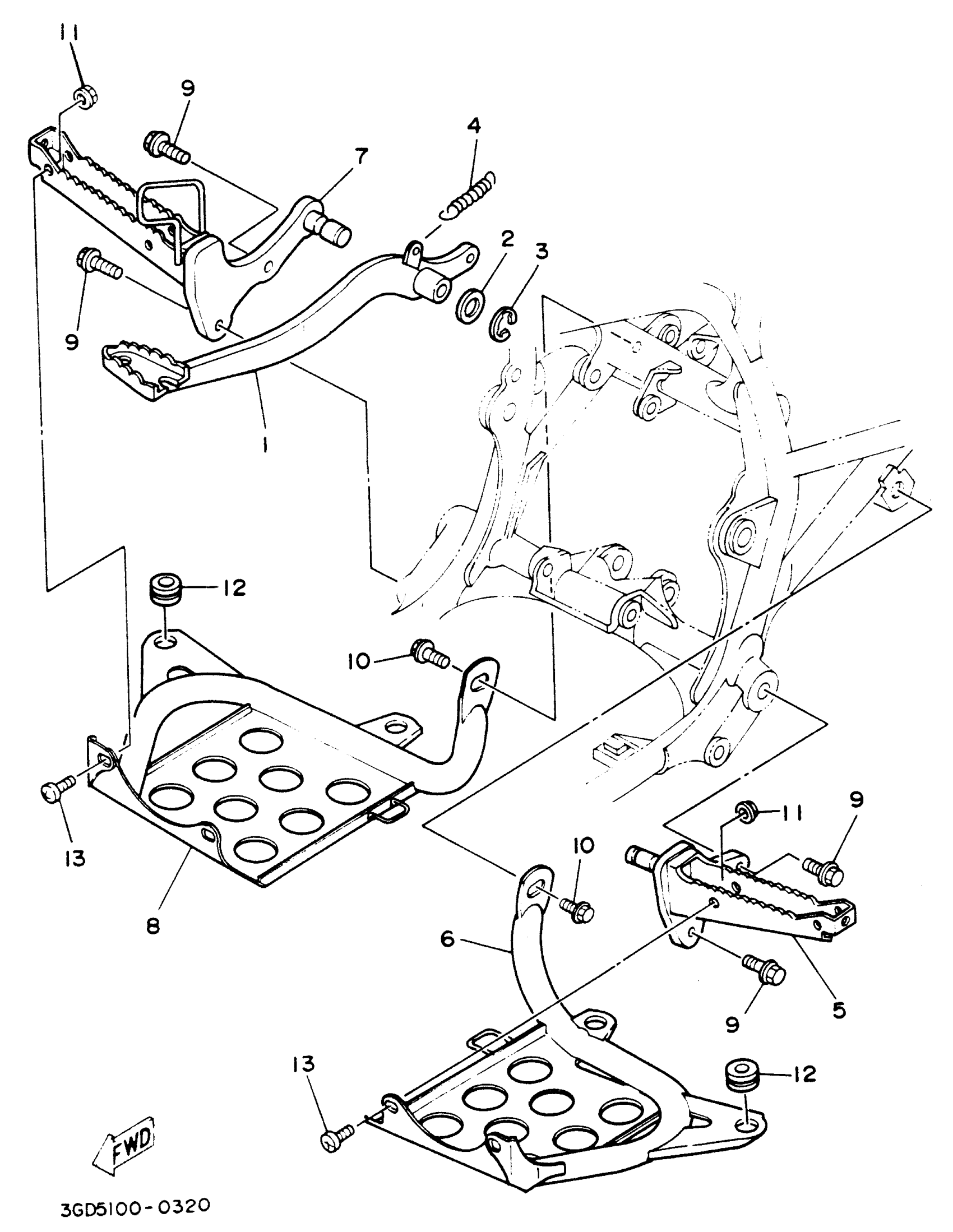

Yamaha YFM350XF_MNH (WARRIOR) 3GDD 1994 STAND FOOTREST Diagram

#

Description
Price

1

PEDAL,BRAKE

3GD-27211-30-00

Unavailable

2

WASHER, PLATE (3X3)

90201-15797-00

$9.49

3

CIRCLIP (122)

93430-12008-00

$8.49

4

SPRING, TENSION(1FN)

90506-20380-00

$5.60

5

FOOTREST 1

3GD-27411-01-00

Unavailable

6

PLATE 1

3GD-27445-00-00

Unavailable

7

FOOTREST 2

3GD-27421-11-00

Unavailable

8

PLATE 2

3GD-27446-00-00

Unavailable

9

BOLT, FLANGE(3GD)

95817-10025-00

$8.49

10

BOLT, FLANGE(JN5)

95817-08016-00

$5.49

11

NUT, FLANGE

95704-08500-00

$8.49

12

GROMMET

90480-18411-00

$11.49

13

BOLT, BUTTON

92017-08016-00

$5.60
