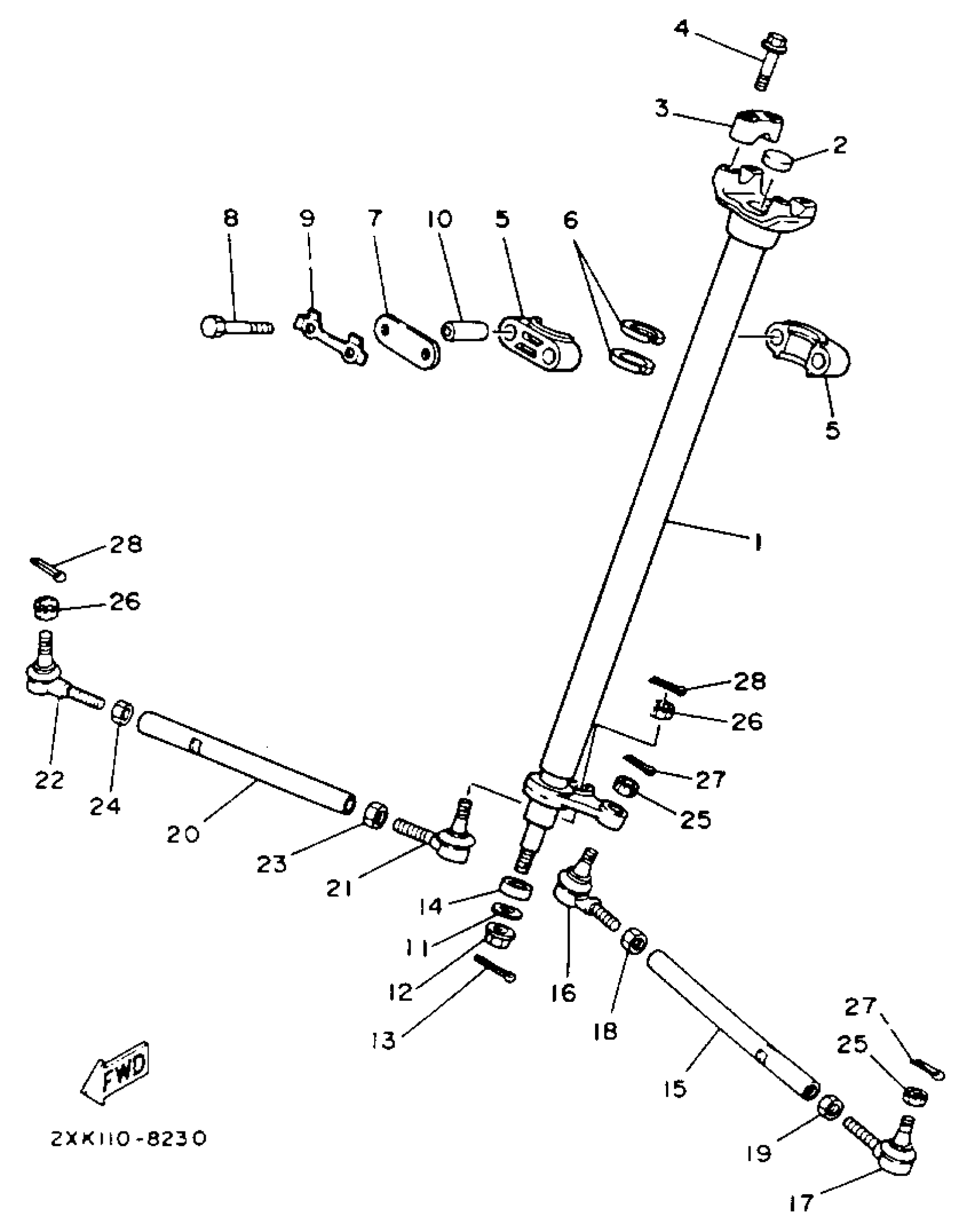

Yamaha YFM350XE (WARRIOR) 3GD 1993 STEERING Diagram

#

Description
Price

1

COLUMN, STEERING 2

3GD-23813-20-00

Unavailable

2

PLUG, TAPER(2HR)

90336-28053-00

$10.49

3

HOLDER, HANDLE UPPER

1E6-23441-00-00

$27.99

4

BOLT, FLANGE

95817-08035-00

$9.49

5

PLANE BEARING, STEERING

1UY-23812-00-00

$24.99

6

OIL SEAL(1UY)

93112-31011-00

$9.49

7

BRACKET, STEERING LOWER

3GD-23868-01-00

Unavailable

8

BOLT (663)

97013-08060-00

$4.41

9

WASHER, LOCK 1

1UY-23894-01-00

$7.99

10

COLLAR(85G)

90387-106T4-00

$14.99

11

WASHER, PLATE (3L6)

90201-10774-00

$9.49

12

NUT, SELF-LOCKING (8U7)

90185-10115-00

Unavailable

13

PIN, COTTER

91490-20025-00

$1.99

14

COLLAR(2GU)

90387-176R6-00

$13.49

15

ROD, TIE

3GD-23831-00-00

$25.99

16

JOINT, UNIVERSAL 1

1UY-23841-01-00

Unavailable

17

JOINT, UNIVERSAL 2

1UY-23845-01-00

Unavailable

18

NUT (682)

95380-10700-00

Unavailable

19

NUT, HEXAGON (8A5)

90170-10186-00

Unavailable

20

ROD, TIE

3GD-23831-00-00

$25.99

21

JOINT, UNIVERSAL 1

1UY-23841-01-00

Unavailable

22

JOINT, UNIVERSAL 2

1UY-23845-01-00

Unavailable

23

NUT (682)

95380-10700-00

Unavailable

24

NUT, HEXAGON (8A5)

90170-10186-00

Unavailable

25

NUT, CASTLE

90171-10001-00

Unavailable

26

NUT, CASTLE

90171-10001-00

Unavailable

27

PIN, COTTER

91490-20025-00

$1.99

28

PIN, COTTER

91490-20025-00

$1.99
