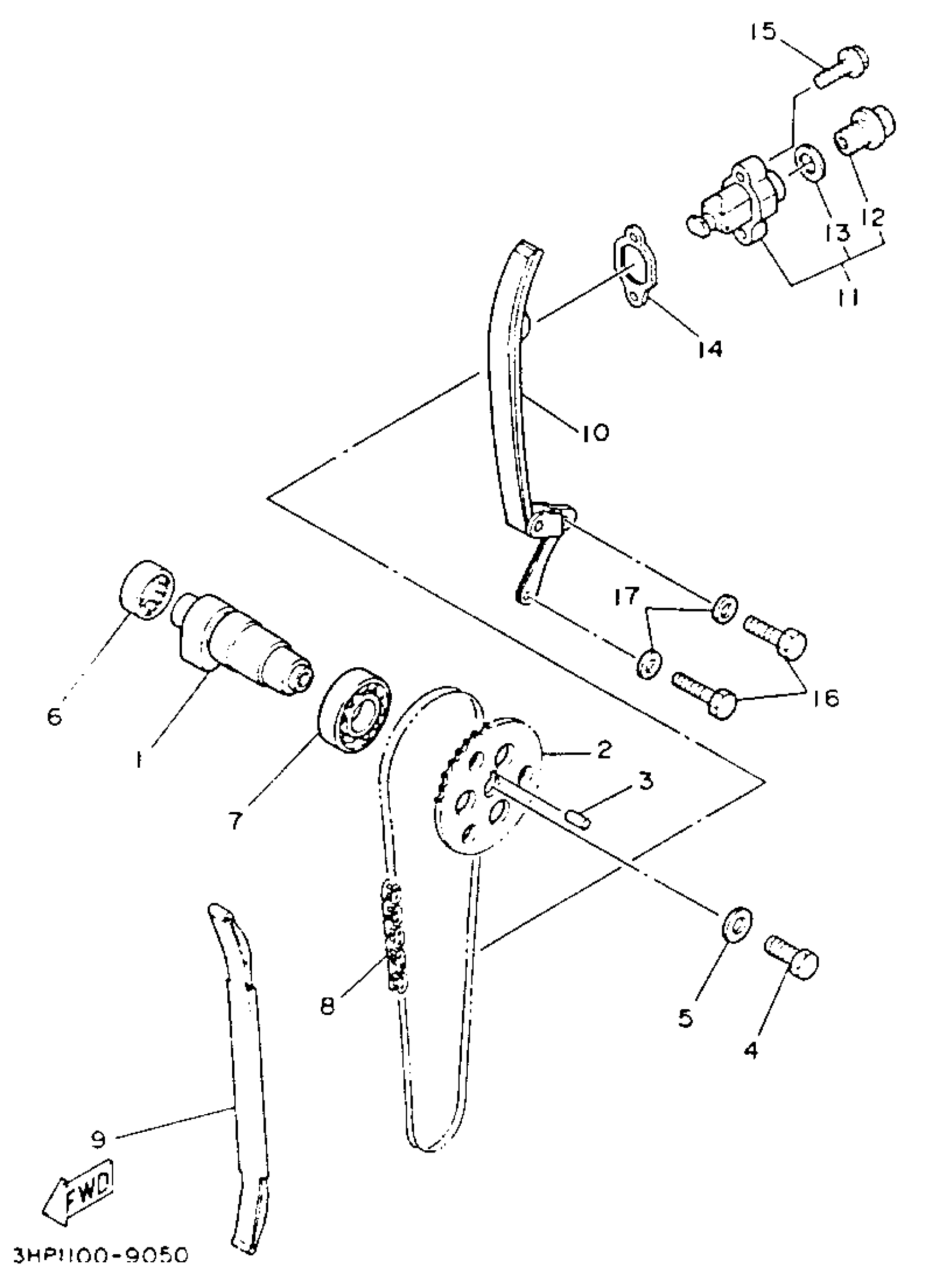

Yamaha YFM350XE_MNH (WARRIOR) 3GD 1993 CAMSHAFT CHAIN Diagram

CAMSHAFT ASSY 1

1UY-12170-00-00

$306.99

SPROCKET, CAM CHAIN

3HN-12176-00-00

$76.99

PIN,DOWEL (603)

93604-10011-00

$8.49

BOLT (583)

90101-10303-00

$9.49

WASHER, PLATE (3L6)

90201-10774-00

$9.49

BRG,CYL-CAL ROLLER 21G NT

93315-32516-00

$34.99

BEARING (31G)

93306-00515-00

$42.99

CHAIN, CAM SHAFT (3Y1)

94500-02090-00

$68.99

GUIDE, STOPPER 1

3Y1-12231-01-00

$41.99

GUIDE, STOPPER 2

1UY-12241-01-00

Unavailable

TENSIONER ASSY, CAM CHAIN

31G-12210-01-00

$173.99

PLUG

31G-12222-00-00

$24.99

GASKET, TENSIONER

31G-12214-00-00

$14.49

GASKET, TENSIONER CASE

3GD-12213-00-00

$6.99

BOLT, FLANGE(4KG)

95024-06025-00

$2.28

BOLT, HEXAGON DEEP RECESS

97D95-06016-00

Unavailable

WASHER, PLAIN (646)

92990-06600-00

Unavailable
