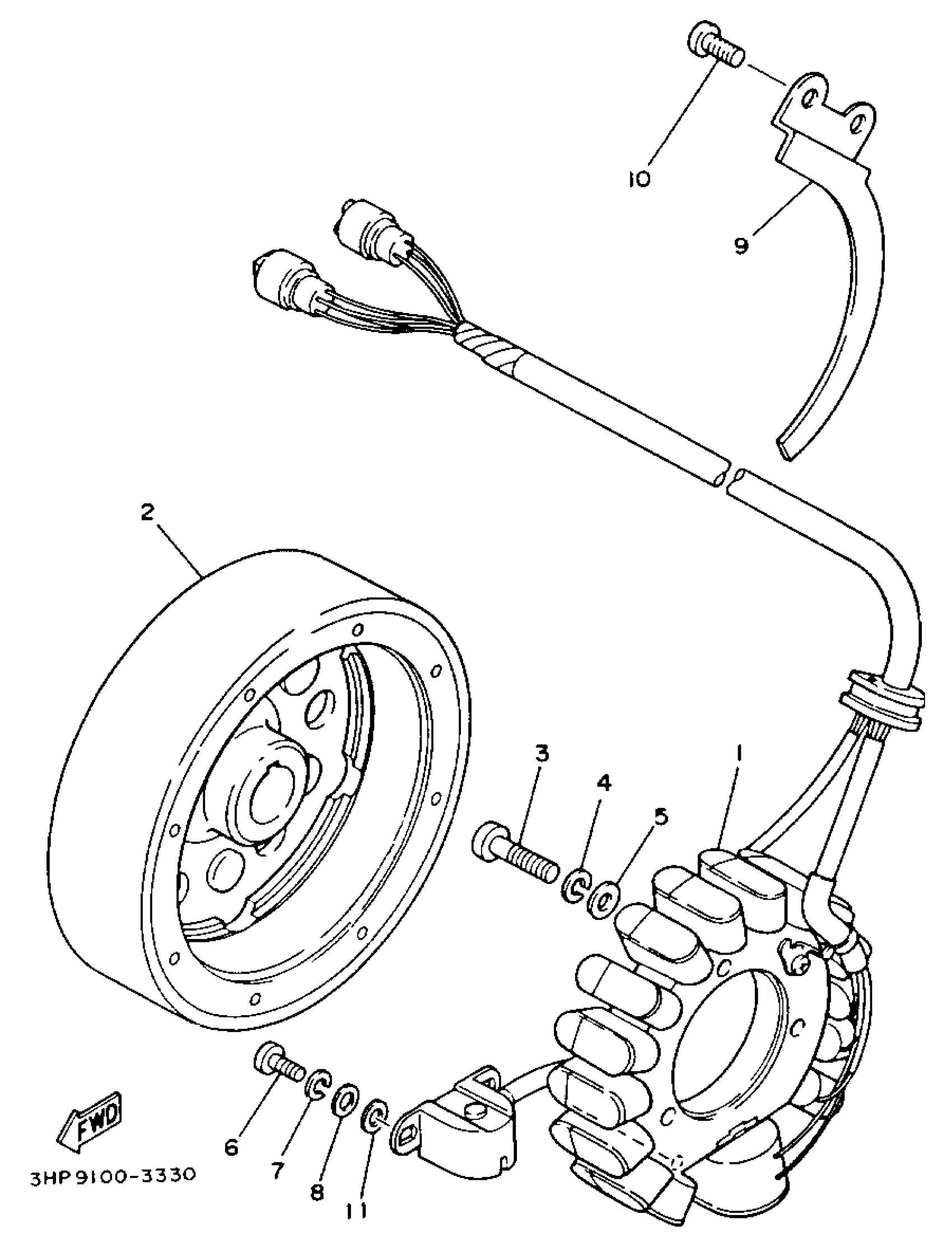

Yamaha YFM350XD (WARRIOR) 3GD 1992 GENERATOR Diagram

#

Description
Price

1

STATOR ASSEMBLY

3HN-85510-00-00

Unavailable

2

ROTOR ASSY

3HN-85550-01-00

Unavailable

3

SCREW, PAN HEAD(6E0)

97885-06030-00

Unavailable

4

WASHER, SPRING

92995-06100-00

Unavailable

5

WASHER, PLAIN (646)

92990-06600-00

$2.80

6

SCREW, PAN HEAD(6B0)

97885-05016-00

Unavailable

7

YBS67-5 WASHER, SPRING

92990-05100-00

$0.35

8

WASHER, PLAIN (646)

92990-05600-00

$0.80

9

STOPPER 1

1UY-81175-01-00

Unavailable

10

SCREW, PAN

98517-06012-00

$3.78

11

WASHER, PLAIN (3GDF)

90201-051K1-00

$8.49
