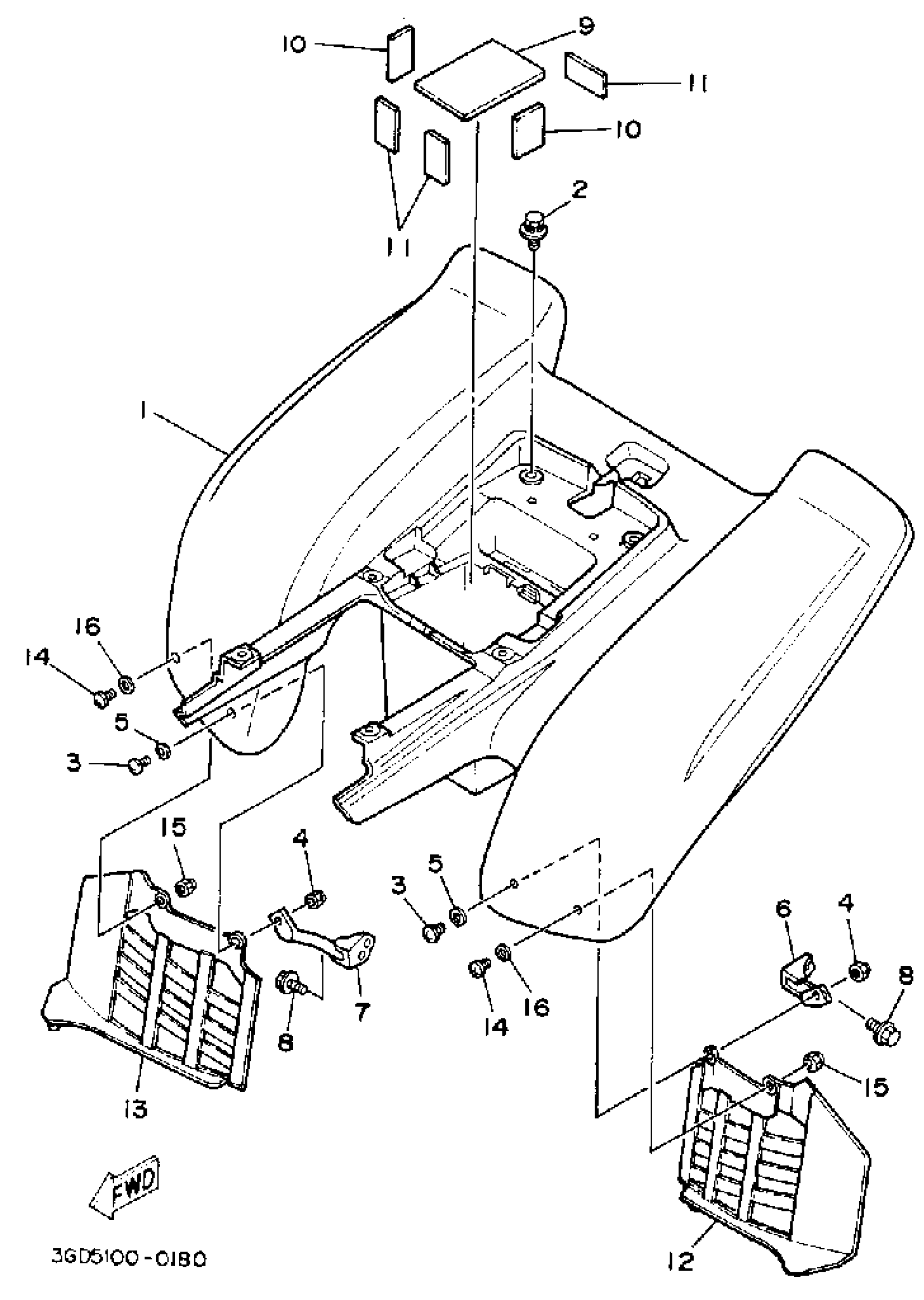

Yamaha YFM350XD_MNH (WARRIOR) 3GD9 1992 REAR FENDER Diagram

#

Description
Price

1

FENDER,REAR

3GD-W2161-42-00

Unavailable

1

FENDER,REAR

3GD-W2161-52-00

Unavailable

2

BOLT, WITH WASHER

90119-06152-00

$7.49

3

SCREW, ROUND HEAD(3JM)

90150-06037-00

$9.49

4

NUT

95690-06100-00

Unavailable

5

YBS66-6 WASHER, PLAIN

92990-06200-00

$3.78

6

STAY, FENDER 1

1UY-21613-00-00

$55.99

7

STAY, FENDER 2

1UY-21614-00-00

Unavailable

8

BOLT, FLANGE

95817-06010-00

$4.73

9

DAMPER 2

1UY-21639-00-00

$7.99

10

DAMPER 1

1UY-21638-00-00

$7.99

11

DAMPER 1

1UY-21638-00-00

$7.99

12

FLAP

3GD-21691-00-00

Unavailable

13

FLAP

3GD-21621-00-00

Unavailable

14

SCREW(3JM)

90149-06306-00

$8.49

15

NUT, SELF-LOCKING

95617-06100-00

Unavailable

16

YBS66-6 WASHER, PLAIN

92990-06200-00

$3.78
