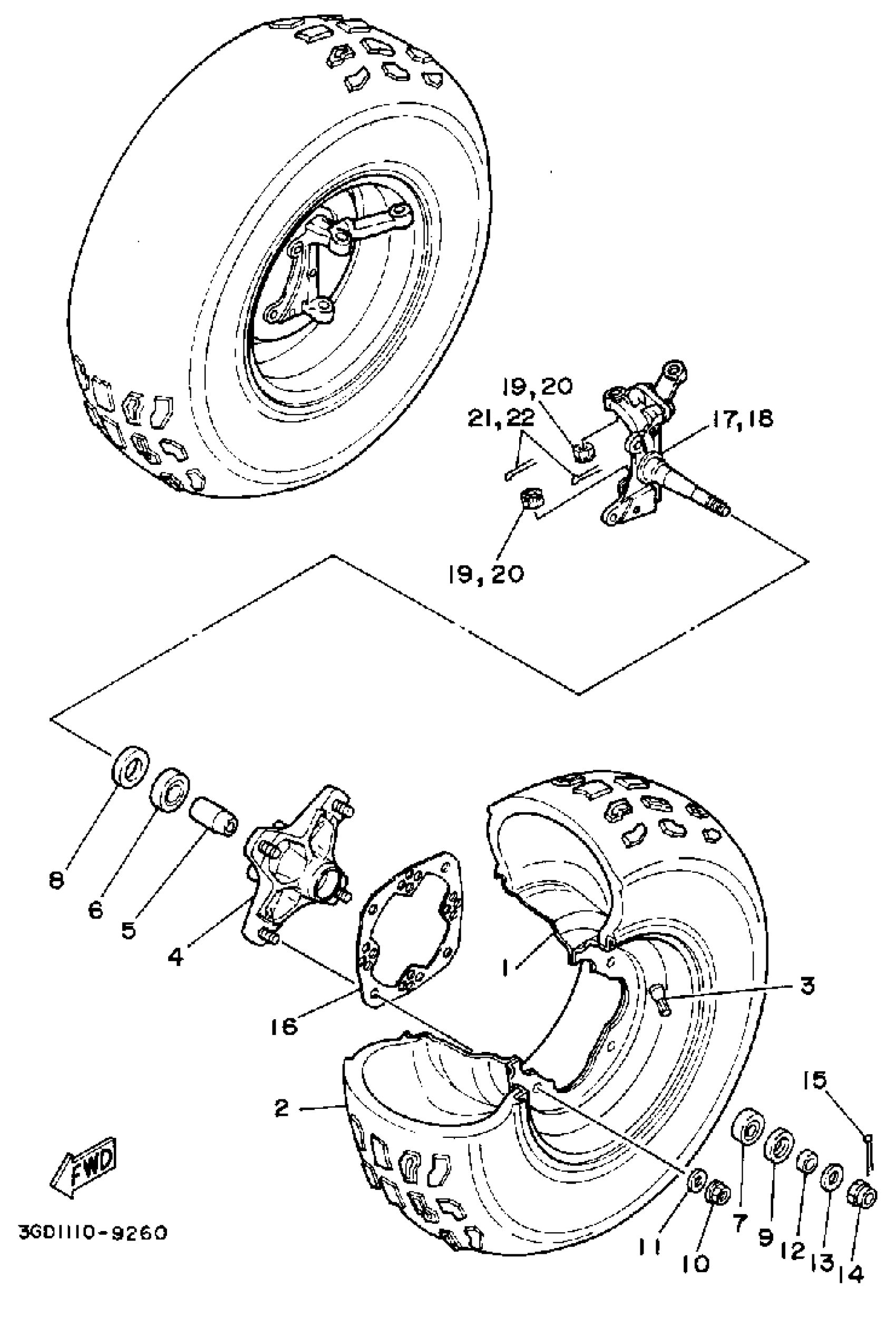

Yamaha YFM350XD_MNH (WARRIOR) 3GD9 1992 FRONT WHEEL Diagram

#

Description
Price

1

FRONT WHEEL COMP.

2XK-25180-10-UJ

Unavailable

2

AT21X7-10 DUN KT764B

94107-100X5-00

Unavailable

3

VALVE, RIM(2GH)

93900-00030-00

$16.99

4

HUB, FRONT

3GD-25111-01-00

Unavailable

5

SPACER, BEARING

1UY-25117-00-00

$28.99

6

BEARING(3BN)

93306-00438-00

$37.99

7

BRG,R-B 6202Z 35MM 48G NT

93306-20204-00

$22.99

8

OIL SEAL(1UY)

93105-26026-00

$12.49

9

OIL SEAL (7H5)

93102-22216-00

$11.49

10

NUT, FLANGE(3BM)

95704-10500-00

$4.29

11

958-69527-00 WASHER, PLAIN

92990-10200-00

$3.72

12

COLLAR(1UY)

90387-150R1-00

$7.49

13

WASHER PLATE 248181370000

90201-14220-00

$8.49

14

NUT, CASTLE(2UJ)

90171-14056-00

$13.49

15

PIN, COTTER

91490-30030-00

$8.49

16

COVER, PLATE

3GD-25127-10-00

Unavailable

17

STEERING KNUCKLE ASSY (LEFT)

3GD-23501-10-00

Unavailable

18

STEERING KNUCKLE ASSY (RIGHT)

3GD-23502-10-00

Unavailable

19

NUT, CASTLE

90171-10001-00

Unavailable

20

NUT, CASTLE

90171-10001-00

Unavailable

21

PIN, COTTER

91490-20025-00

Unavailable

22

PIN, COTTER

91490-20025-00

Unavailable
