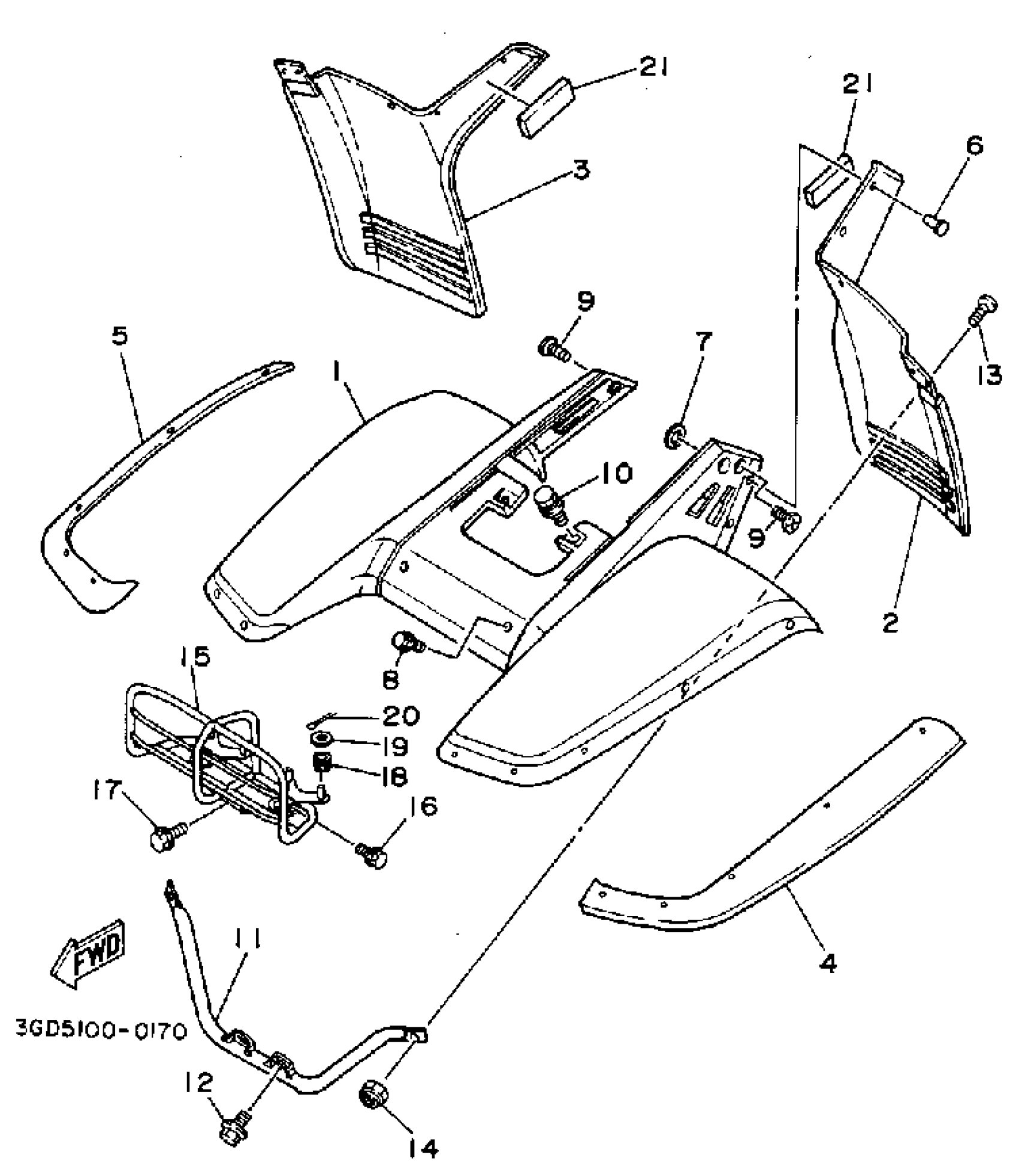

Yamaha YFM350XD_MNH (WARRIOR) 3GD9 1992 FRONT FENDER CARRIER Diagram
#
Description
Price
1
FRONT FENDER COMP.
3GD-W215D-42-00
Unavailable
1
FENDER, FRONT
3GD-W215D-52-00
Unavailable
2
FLAP, FRONT FENDER
3GD-21521-10-00
Unavailable
3
FLAP 2
3GD-21561-10-00
Unavailable
4
OVER, FENDER
3GD-21551-10-00
Unavailable
5
OVER, FENDER 2
3GD-21555-10-00
Unavailable
9
SCREW, BINDING(1UY)
90154-05041-00
Unavailable
11
STAY, FENDER 1
1UY-21513-00-00
Unavailable
15
STAY, HEADLIGHT (3GD-23174-00-00)
3GD-23174-10-00
Unavailable
17
BOLT, FLANGE
95817-08012-00
Unavailable
18
DAMPER, SIDE COVER (437)
90480-12053-00
Unavailable
19
WASHER, PLATE
90201-06M08-00
Unavailable
20
PIN, COTTER
91490-20025-00
Unavailable
21
DAMPER
3RW-21639-00-00
Unavailable
