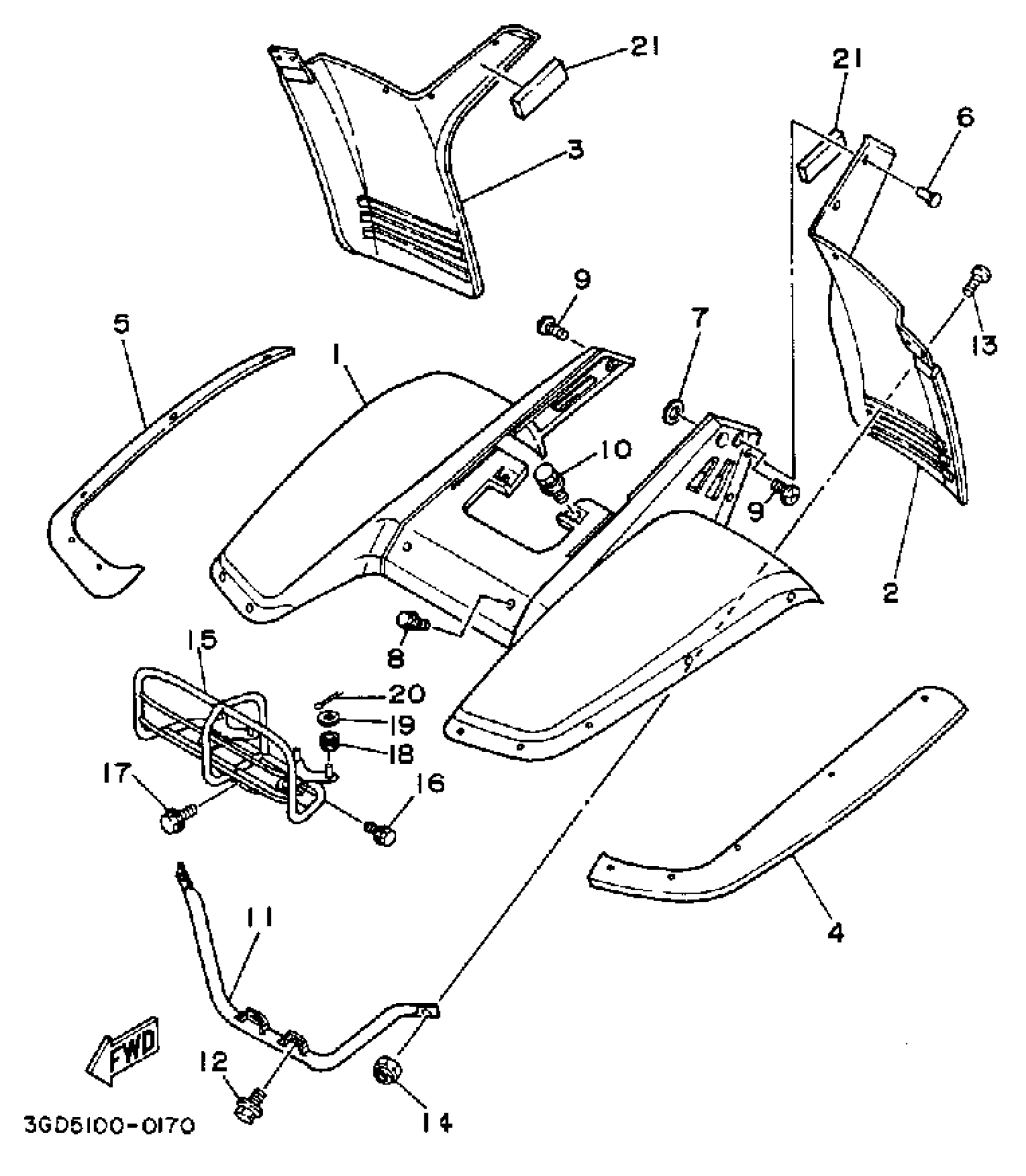

Yamaha YFM350XB (WARRIOR) 3GD 1991 FRONT FENDER-CARRIER Diagram

#

Description
Price

1

FENDER, FRONT

3GD-21511-20-00

Unavailable

1

FRONT FENDER COMP.

3GD-W215D-32-00

Unavailable

2

FLAP, FRONT FENDER

3GD-21521-00-00

Unavailable

2

FLAP, FRONT FENDER

3GD-21521-10-00

Unavailable

3

FLAP 2

3GD-21561-00-00

Unavailable

3

FLAP 2

3GD-21561-10-00

Unavailable

4

FENDER, OVER

3GD-21551-00-00

Unavailable

4

OVER, FENDER

3GD-21551-10-00

Unavailable

5

FENDER, OVER 2

3GD-21555-00-00

Unavailable

5

OVER, FENDER 2

3GD-21555-10-00

Unavailable

6

RIVET (856)

90267-48014-00

$4.88

7

WASHER, PLATE

90201-04027-00

$3.02

8

BOLT, WITH WASHER

90119-06242-00

$7.49

9

SCREW, BINDING(1UY)

90154-05041-00

Unavailable

10

BOLT, WITH WASHER

90119-06242-00

$7.49

11

STAY, FENDER 1

1UY-21513-00-00

Unavailable

12

BOLT, FLANGE

95812-06010-00

Unavailable

13

SCREW (25G)

90149-06184-00

Unavailable

14

NUT, SELF-LOCKING

95617-06100-00

Unavailable

15

STAY, HEADLIGHT (3GD-23174-00-00)

3GD-23174-10-00

Unavailable

16

BOLT, FLANGE

95812-06010-00

Unavailable

17

BOLT, FLANGE

95817-08012-00

Unavailable

18

DAMPER, SIDE COVER (437)

90480-12053-00

Unavailable

19

WASHER, PLATE

90201-06M08-00

Unavailable

20

PIN, COTTER

91490-20025-00

Unavailable

21

DAMPER

3RW-21639-00-00

Unavailable
