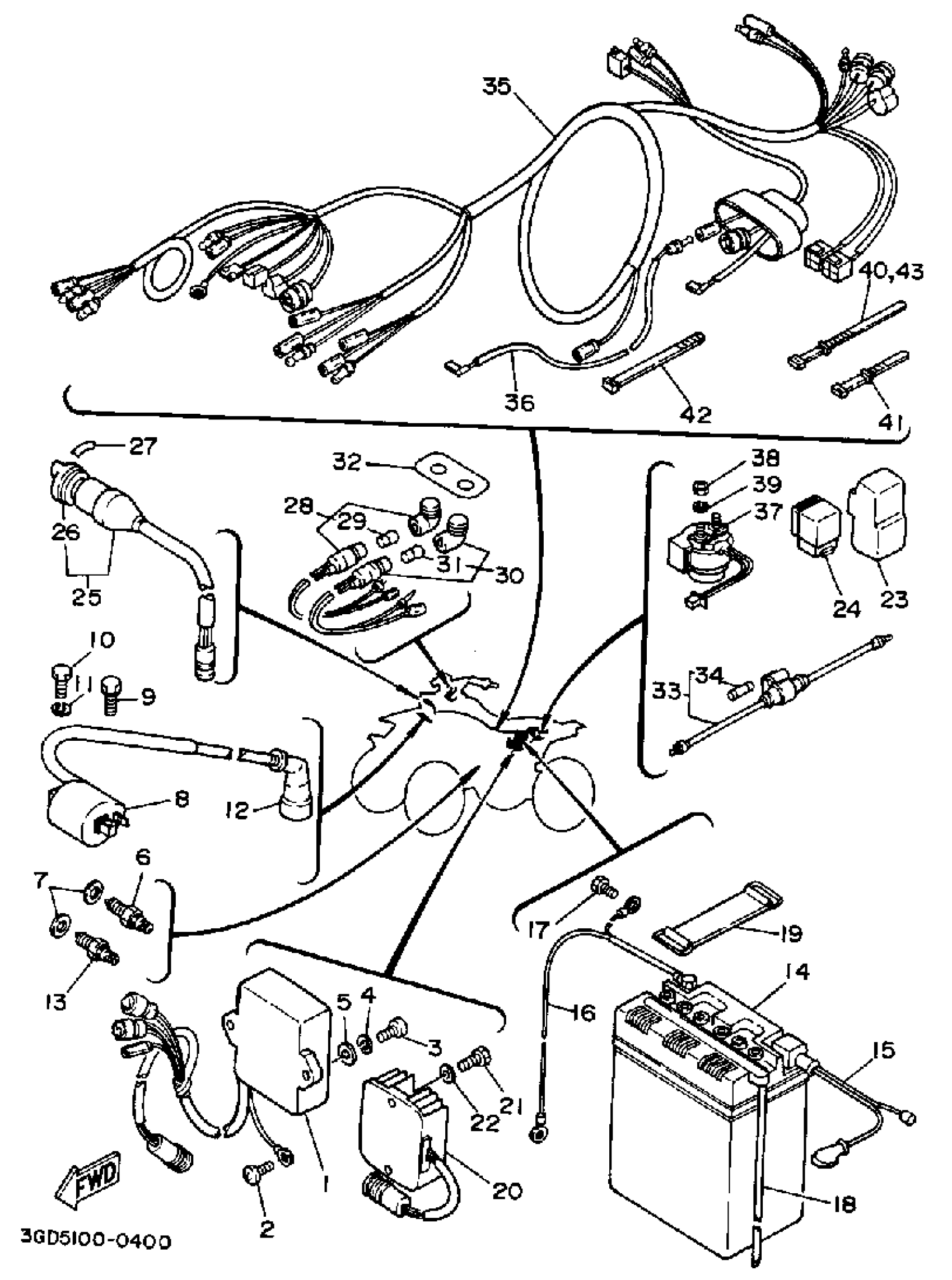

Yamaha YFM350XB (WARRIOR) 3GD 1991 ELECTRICAL 1 Diagram

#

Description
Price

1

C.D.I. UNIT ASSEMBLY

3GD-85540-20-00

Unavailable

2

SCREW, HEXAGON (18V)

90153-06044-00

$1.49

3

SCREW PAN HEAD

98580-06020-00

$8.49

4

WASHER, SPRING

92995-06100-00

Unavailable

5

WASHER, PLAIN (646)

92990-06600-00

$2.80

6

NEUTRAL SWITCH ASSY

3GB-82540-01-00

$58.99

7

GASKET (5R6)

90430-10171-00

$3.18

8

IGNITION COIL ASSY

3GD-82310-10-00

$153.99

9

BOLT (21V)

90109-06723-00

$8.49

10

BOLT, HEXAGON

97017-06020-00

$4.06

11

WASHER, SPRING

92995-06100-00

Unavailable

12

PLUG CAP ASSY

3NS-82370-00-00

$37.99

13

NEUTRAL SWITCH ASSY

3GD-82540-11-00

$55.99

14

ACB12CA GS BATTERY WET PACK

ACB-12CA0-00-00

Unavailable

15

WIRE, PLUS LEAD

1YW-82115-00-00

$61.99

16

WIRE, MINUS LEAD

3GD-82116-00-00

Unavailable

17

SCREW (5G3)

90153-06034-00

Unavailable

18

HOSE (L1500)

90445-084J0-00

Unavailable

19

BAND, BATTERY

337-82131-00-00

Unavailable

20

RECTIFIER & REGULATOR ASSEMBLY

59V-81960-A0-00

Unavailable

21

BOLT, HEXAGON DEEP RECESS

97D95-06016-00

Unavailable

22

WASHER, PLAIN (646)

92990-06600-00

$2.80

23

RELAY ASSY (29U-93)

29U-81950-93-00

Unavailable

24

RELAY ASSY (3GD-01)

3GD-81950-01-00

Unavailable

25

MAIN SWITCH ASSY

2FJ-82510-09-00

Unavailable

26

CAP, KEY

24W-82579-00-00

Unavailable

27

LABEL

29U-83585-10-00

Unavailable

28

PILOT LIGHT ASSY

24W-83530-10-00

Unavailable

29

BULB (12V-3.4W)

123-83516-21-00

Unavailable

30

PILOT LIGHT ASSY

52G-83530-10-00

Unavailable

31

BULB (12V-3.4W)

123-83516-21-00

Unavailable

32

LABEL

1UY-83585-00-00

Unavailable

33

FUSE HOLDER ASSY

1UY-82150-00-00

Unavailable

34

FUSE (15A)

1UY-82151-00-00

Unavailable

35

WIRE HARNESS ASSEMBLY

3GD-82590-20-00

Unavailable

36

WIRE, LEAD

3HN-82541-00-00

Unavailable

37

STARTER RELAY ASSY (MS5D-611)

4KD-81940-00-00

Unavailable

38

NUT(650)

95380-06700-00

Unavailable

39

WASHER, SPRING

92995-06100-00

Unavailable

40

BAND, SWITCH CORD

437-83936-01-00

Unavailable

41

BAND, SWITCH CORD

437-83936-11-00

Unavailable

42

CLAMP

1UY-82591-00-00

Unavailable

43

BAND, SWITCH CORD

437-83936-01-00

Unavailable

44

KEY, BLANK (A-TYPE)

90890-56001-00

Unavailable

45

KEY, BLANK (B-TYPE)

90890-56002-00

Unavailable
