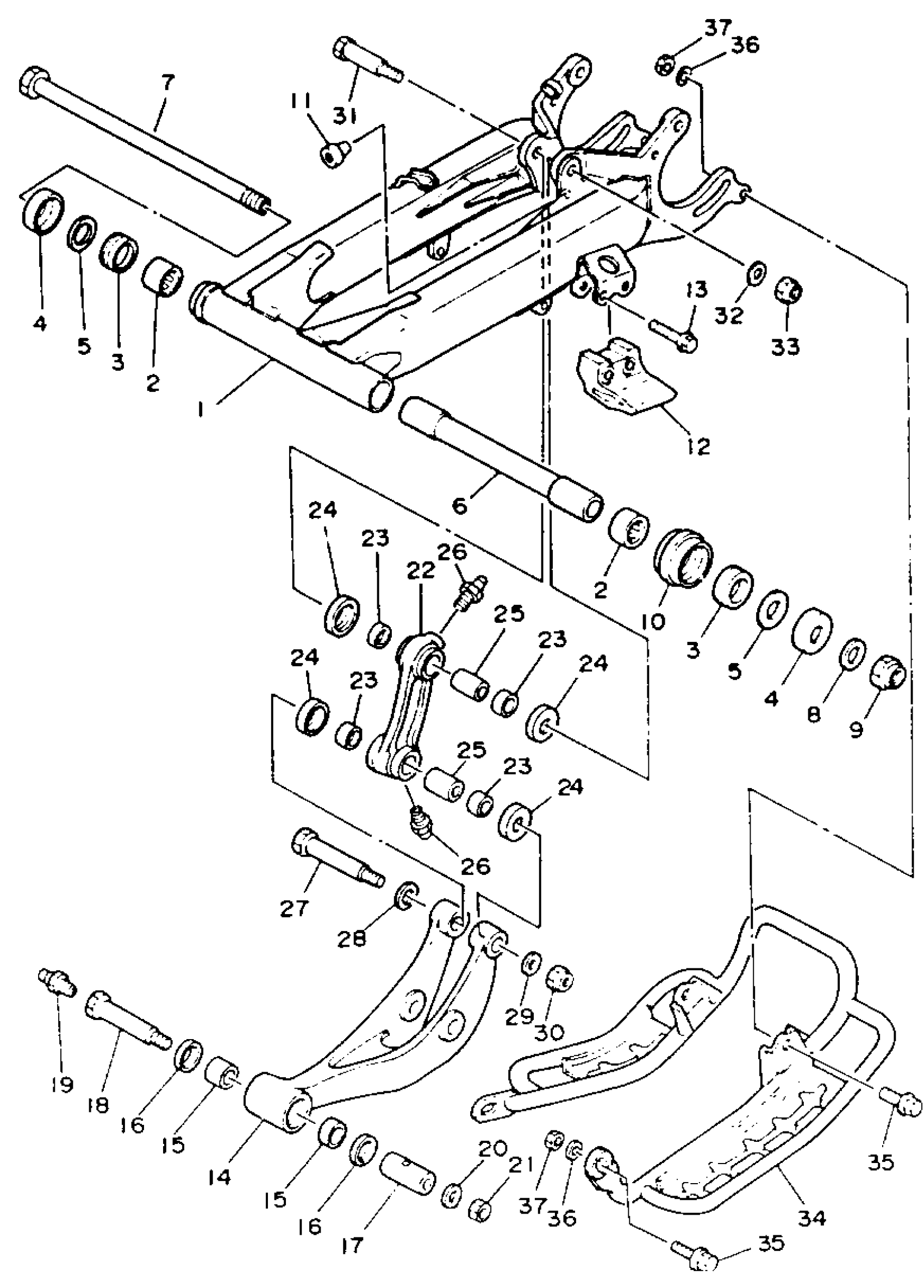

Yamaha YFM350XB_MNH (WARRIOR) 3GD7 1991 SWING ARM Diagram
#
Description
Price
1
REAR ARM COMP.
3GD-22110-20-P0
Unavailable
14
ARM, RELAY
1UY-2217A-00-00
Unavailable
17
COLLAR
90387-12021-00
Unavailable
18
BOLT (30X)
90109-10752-00
Unavailable
19
NIPPLE, GREASE
93700-06M03-00
Unavailable
20
WASHER (7A9)
90201-100F7-00
Unavailable
21
NUT, SELF LOCKING (23X)
90185-10120-00
Unavailable
22
ROD, CONNECTING 1
1UY-2217F-00-00
Unavailable
23
BUSH, FORMED(1RX)
90383-20032-00
Unavailable
24
COVER, THRUST 2
55K-22129-00-00
Unavailable
25
COLLAR(1RX)
90387-125N8-00
Unavailable
26
NIPPLE, GREASE
93700-06M03-00
Unavailable
27
BOLT(38W)
90109-102A6-00
Unavailable
28
WASHER, PLATE
90201-12027-00
Unavailable
29
WASHER, PLATE(6TC)
90201-10M05-00
Unavailable
30
NUT, SELF LOCKING (23X)
90185-10120-00
Unavailable
31
BOLT
90109-102A7-00
Unavailable
32
WASHER (7A9)
90201-100F7-00
Unavailable
33
NUT, SELF LOCKING (23X)
90185-10120-00
Unavailable
34
COVER
3GD-2219X-00-00
Unavailable
35
BOLT, FLANGE(4LN)
95817-08025-00
Unavailable
36
.. WASHER, PLATE
92990-08600-00
Unavailable
37
NUT, U
95617-08100-00
Unavailable
