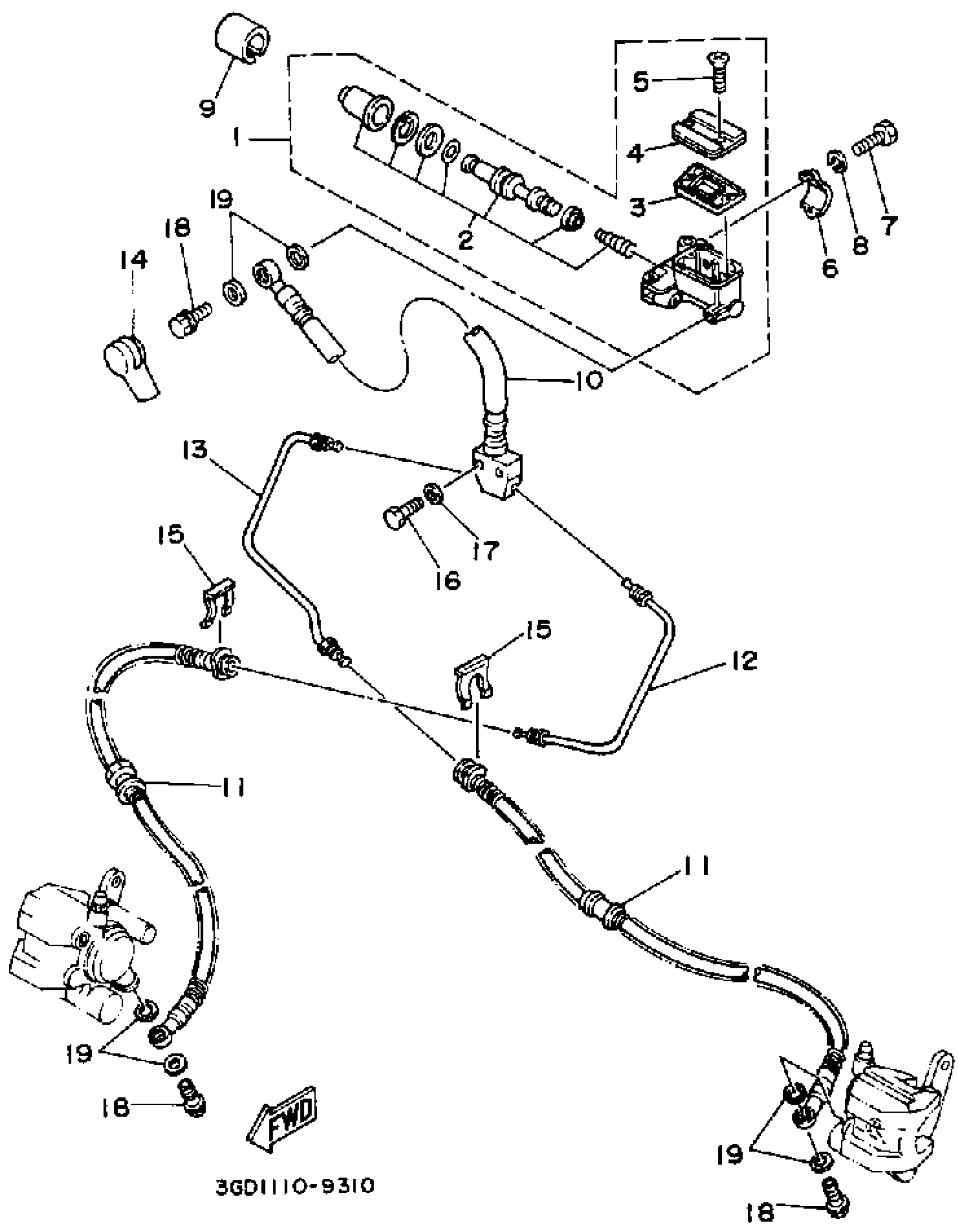

Yamaha YFM350XA (WARRIOR) 3GD 1990 FRONT MASTER CYLINDER Diagram

#

Description
Price

1

MASTER CYLINDER SUB ASSY

2GU-25870-10-00

$294.99

2

CYLINDER KIT, MASTER

4H7-W0041-50-00

Unavailable

3

DIAPHRAGM, RESERVOIR

4L0-25854-00-00

$27.99

4

CAP, RESERVOIR

4H7-25852-00-00

$39.99

5

SCREW, FLAT

98707-04012-00

$2.18

6

BRACKET, MASTER CYLINDER

56A-25867-00-00

$28.99

7

BOLT, HEXAGON

97017-06025-00

$4.24

8

WASHER, SPRING

92907-06100-00

$4.25

9

COLLAR

1UY-26259-00-00

$19.49

10

HOSE, BRAKE 1

99999-02413-00

Unavailable

11

HOSE,BRAKE 2

99999-02414-00

Unavailable

12

PIPE, BRAKE

3GD-25871-00-00

Unavailable

13

PIPE, BRAKE 2

3GD-25882-00-00

Unavailable

14

BOOT, MASTER CYLINDER

4L0-25862-01-00

$7.99

15

CIRCLIP

2GU-25866-00-00

$9.99

16

BOLT (682)

97013-08025-00

Unavailable

17

.. WASHER, PLATE

92990-08600-00

Unavailable

18

BOLT, UNION(3GM)

90401-10159-00

Unavailable

19

WASHER, PLATE(481)

90201-10118-00

Unavailable
