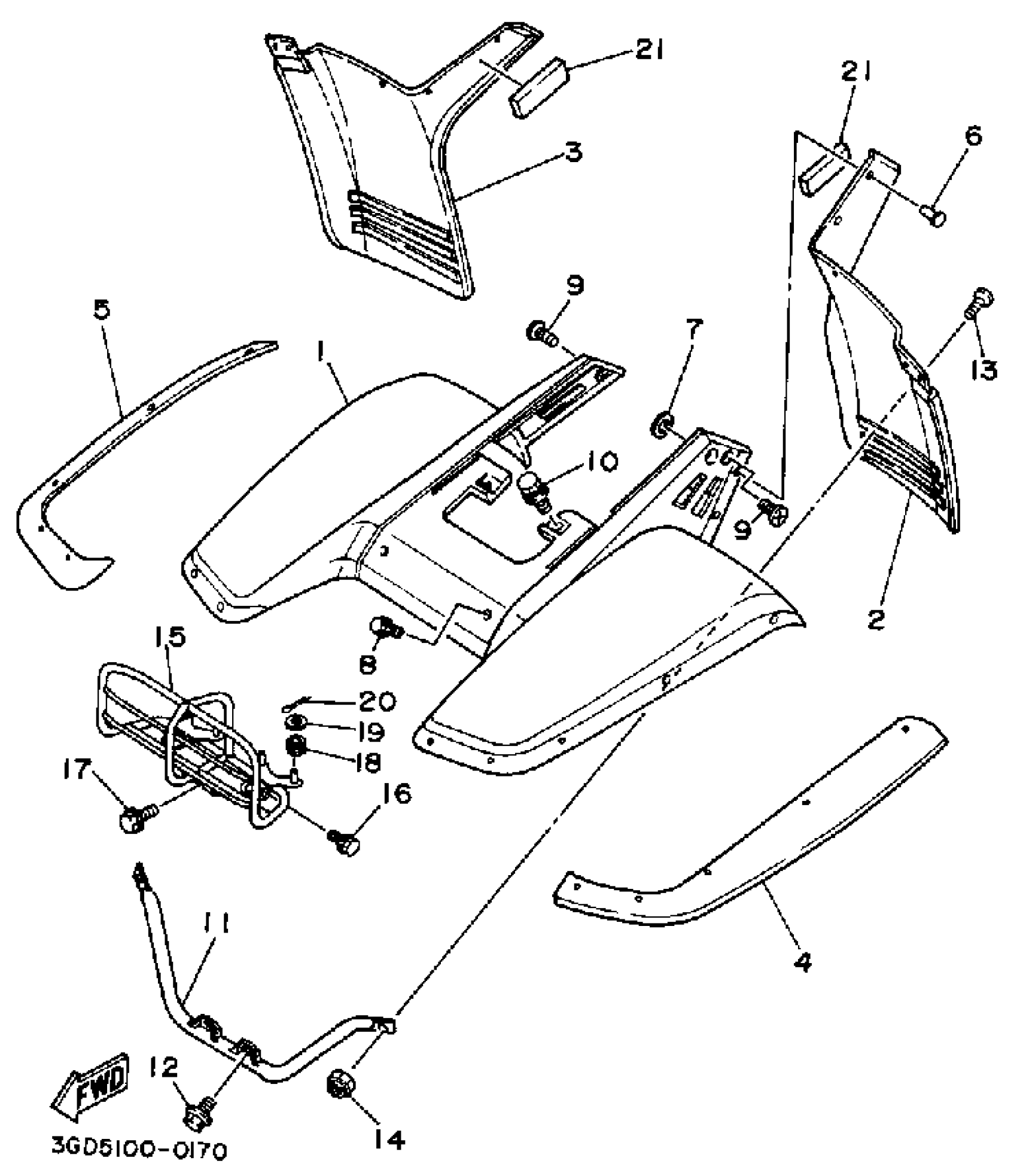

Yamaha YFM350XA (WARRIOR) 3GD 1990 FRONT FENDER CARRIER Diagram
#
Description
Price
1
FRONT FENDER COMP.
3GD-W215D-02-00
Unavailable
1
FRONT FENDER COMP.
3GD-W215D-12-00
Unavailable
2
FLAP ASSY 1
3GD-W2153-11-00
Unavailable
3
FLAP 2
1UY-21561-00-00
Unavailable
4
FENDER, OVER
1UY-21551-00-00
Unavailable
5
FENDER, OVER 2
1UY-21555-00-00
Unavailable
9
SCREW, BINDING(1UY)
90154-05041-00
Unavailable
11
STAY, FENDER 1
1UY-21513-00-00
Unavailable
15
STAY, HEADLIGHT (3GD-23174-00-00)
3GD-23174-10-00
Unavailable
17
BOLT, FLANGE
95817-08012-00
Unavailable
18
DAMPER, SIDE COVER (437)
90480-12053-00
Unavailable
19
WASHER, PLATE
90201-06M08-00
Unavailable
20
PIN, COTTER
91490-20025-00
Unavailable
21
DAMPER
3RW-21639-00-00
Unavailable
