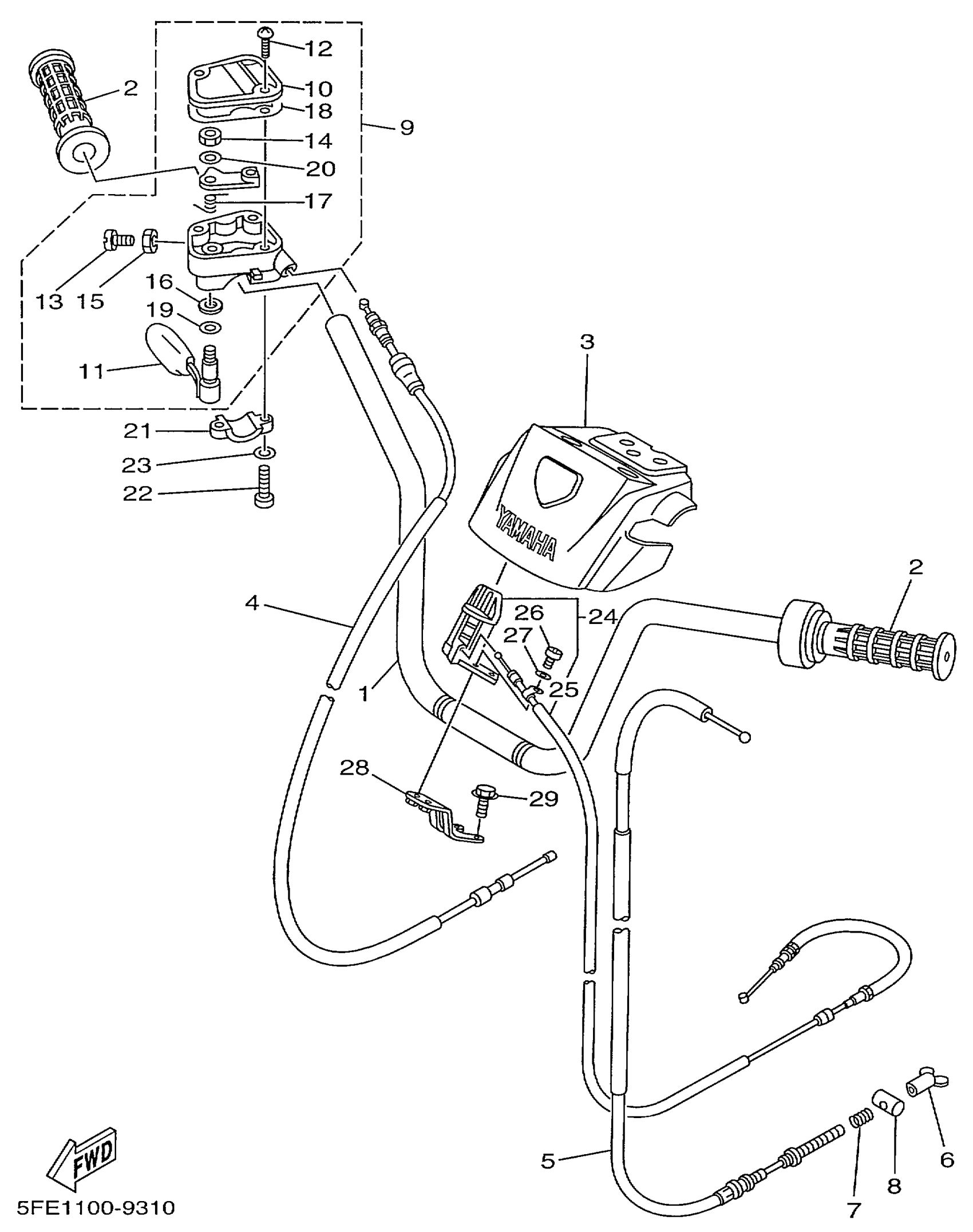

Yamaha YFM350ULC (BIG BEAR 2WD) 5FE2 1999 STEERING HANDLE CABLE Diagram

#

Description
Price

1

HANDLEBAR

3HN-26111-00-00

Unavailable

2

GRIP (L.H)

3GB-26241-00-00

$21.99

3

PROTECTOR, HANDLEBAR

5FE-26124-11-00

Unavailable

4

CABLE, THROTTLE 1

4WU-26311-00-00

$55.99

5

CABLE, BRAKE

4WU-26341-00-00

Unavailable

6

NUT, AJUSTING

20E-26343-00-00

$27.99

7

SPRING, COMPRESSION (29U)

90501-10782-00

$8.49

8

PIN 1562723700

90249-12008-00

$8.49

9

THROTTLE LEVER ASSY

4KB-26250-12-00

$122.99

10

. CAP, GEAR

4KB-2628F-00-00

Unavailable

11

LEVER, THROTTLE

1NV-2625G-02-00

Unavailable

12

SCREW(3HE)

90149-04278-00

$2.39

13

SCREW, PAN HEAD

98517-05020-00

$4.25

14

NUT, U

95617-05100-00

$9.49

15

NUT, HEXAGON SMALL

95317-05700-00

$8.49

16

OIL SEAL (9X15X4-256)

93104-09025-00

Unavailable

17

SPRING

1NV-26304-00-00

Unavailable

18

GASKET

4KB-2628G-00-00

Unavailable

19

WASHER

1NV-26129-00-00

Unavailable

20

. WASHER, SPECIAL

53L-83909-00-00

Unavailable

21

HOLDER, LEVER LOWER

4V4-82913-00-00

Unavailable

22

SCREW, PAN HEAD

98517-05020-00

$4.25

23

WASHER(1RW)

92907-05600-00

Unavailable

24

REV. LEVER ASSEMBLY.

4WU-26150-00-00

Unavailable

25

. CABLE, CONTROL 1

4WU-2637E-00-00

Unavailable

26

SCREW, PAN HEAD(4MY)

98507-05018-00

Unavailable

27

WASHER(1RW)

92907-05600-00

Unavailable

28

BRACKET

4KB-2612E-00-00

Unavailable

29

BOLT, FLANGE

95817-06012-00

Unavailable
