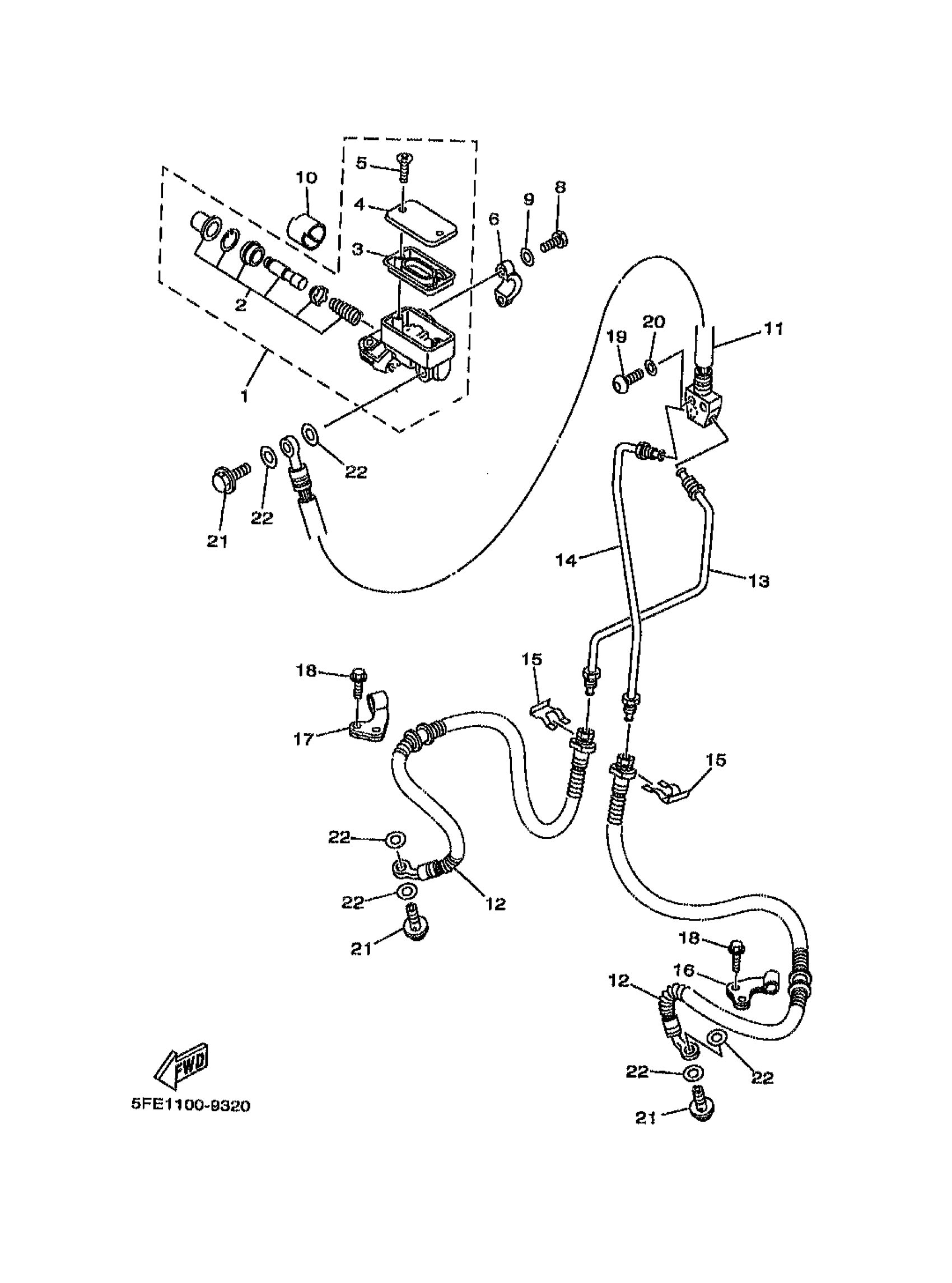

Yamaha YFM350ULC (BIG BEAR 2WD) 5FE2 1999 FRONT MASTER CYLINDER Diagram

MASTER CYLINDER SUB ASSY

4WV-25870-00-00

Unavailable

CYLINDER KIT, MASTER

4K0-W0041-50-00

Unavailable

DIAPHRAGM, RESERVOIR

4L0-25854-00-00

$27.99

CAP, RESERVOIR

4H7-25852-00-00

$39.99

SCREW, FLAT

98707-04012-00

$2.18

BRACKET, MASTER CYLINDER

56A-25867-00-00

$28.99

BOLT, HEXAGON

97017-06025-00

$4.24

WASHER(6TA)

92907-06600-00

$2.72

COLLAR

1UY-26259-00-00

$19.49

HOSE, BRAKE 1

4KB-25872-00-00

Unavailable

HOSE, BRAKE 2

5FE-25873-01-00

Unavailable

PIPE, BRAKE

4KB-25871-00-00

Unavailable

PIPE, BRAKE 2

4KB-25882-00-00

Unavailable

CIRCLIP

2GU-25866-00-00

$9.99

HOLDER, BRAKE HOSE 1

4GB-25875-00-00

Unavailable

HOLDER, BRAKE HOSE 2

4GB-25876-00-00

Unavailable

BOLT, FLANGE

95817-06012-00

Unavailable

BOLT, HEXAGON

97017-08030-00

Unavailable

WASHER(6TA)

92907-08600-00

Unavailable

BOLT, UNION(3GM)

90401-10159-00

Unavailable

WASHER, PLATE(481)

90201-10118-00

Unavailable
