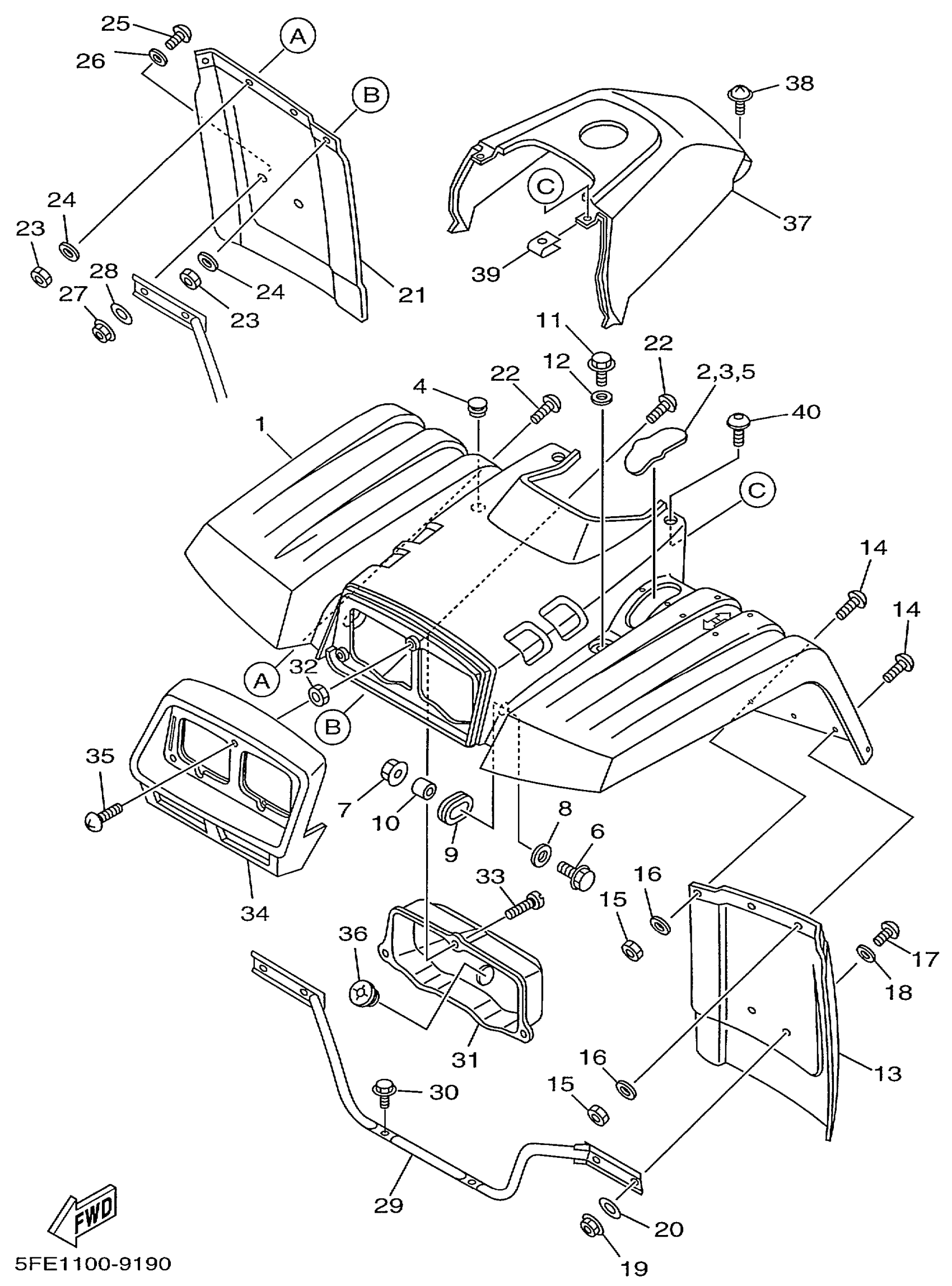

Yamaha YFM350ULC (BIG BEAR 2WD) 5FE2 1999 FRONT FENDER Diagram
#
1
FRONT FENDER COMP. (ROMANTIQUE ROUGE)
5FE-W2151-00-00
Unavailable
1
FRONT FENDER COMP. (PASTEL DEEP GREEN)
5FE-W2151-10-00
Unavailable
1
FRONT FENDER COMP. (DARK GRAYISH YELLOW SOLID 1)
5FE-W2151-20-00
Unavailable
2
DAMPER 1 (ROMANTIQUE ROUGE)
4GB-21541-A0-00
Unavailable
3
DAMPER 1 (PASTEL DEEP GREEN)
4GB-21541-90-00
Unavailable
4
CAP
26H-28349-00-00
Unavailable
5
DAMPER 1 (DARK GRAYISH YELLOW SOLID 1)
4GB-21541-B0-00
Unavailable
13
FLAP, FRONT FENDER
2HR-21521-00-00
Unavailable
14
SCREW, BINDING (8J0)
90154-05005-00
Unavailable
15
NUT, NYLON
95707-05300-00
Unavailable
16
WASHER, PLATE 8067717800
90201-05029-00
Unavailable
17
SCREW, BINDING (8J0)
90154-05005-00
Unavailable
18
WASHER, PLATE(36Y)
90201-063J2-00
Unavailable
19
NUT, NYLON
95707-05300-00
Unavailable
20
WASHER, PLATE 8067717800
90201-05029-00
Unavailable
21
FLAP 2
2HR-21561-00-00
Unavailable
22
SCREW, BINDING (8J0)
90154-05005-00
Unavailable
23
NUT, NYLON
95707-05300-00
Unavailable
24
WASHER, PLATE 8067717800
90201-05029-00
Unavailable
25
SCREW, BINDING (8J0)
90154-05005-00
Unavailable
26
WASHER, PLATE(36Y)
90201-063J2-00
Unavailable
27
NUT, NYLON
95707-05300-00
Unavailable
28
WASHER, PLATE 8067717800
90201-05029-00
Unavailable
29
STAY, FENDER 1
4WU-21513-00-00
Unavailable
30
BOLT, FLANGE
95817-06012-00
Unavailable
31
BODY, HEADLIGHT
2HR-84111-00-00
Unavailable
32
NUT
90170-05362-00
Unavailable
33
SCREW, BINDING
98907-05014-00
Unavailable
34
PANEL, FRONT
2HR-23391-00-00
Unavailable
35
SCREW, BINDING (10V)
90154-05013-00
Unavailable
36
. GROMMET
90480-25461-00
Unavailable
37
COVER, TOP (PASTEL DEEP GREEN)
3HN-2171A-E0-00
Unavailable
37
COVER, TOP (ROMANTIQUE ROUGE)
3HN-2171A-F0-00
Unavailable
37
COVER, TOP (DARK GRAYISH YELLOW SOLID 1)
3HN-2171A-G0-00
Unavailable
38
SCREW, PANHEAD W/WASHER (22F)
90159-06082-00
Unavailable
39
NUT, SPRING
90183-051A0-00
Unavailable
40
BOLT,HEX. SOCKET BUTTON
90111-05059-00
Unavailable
