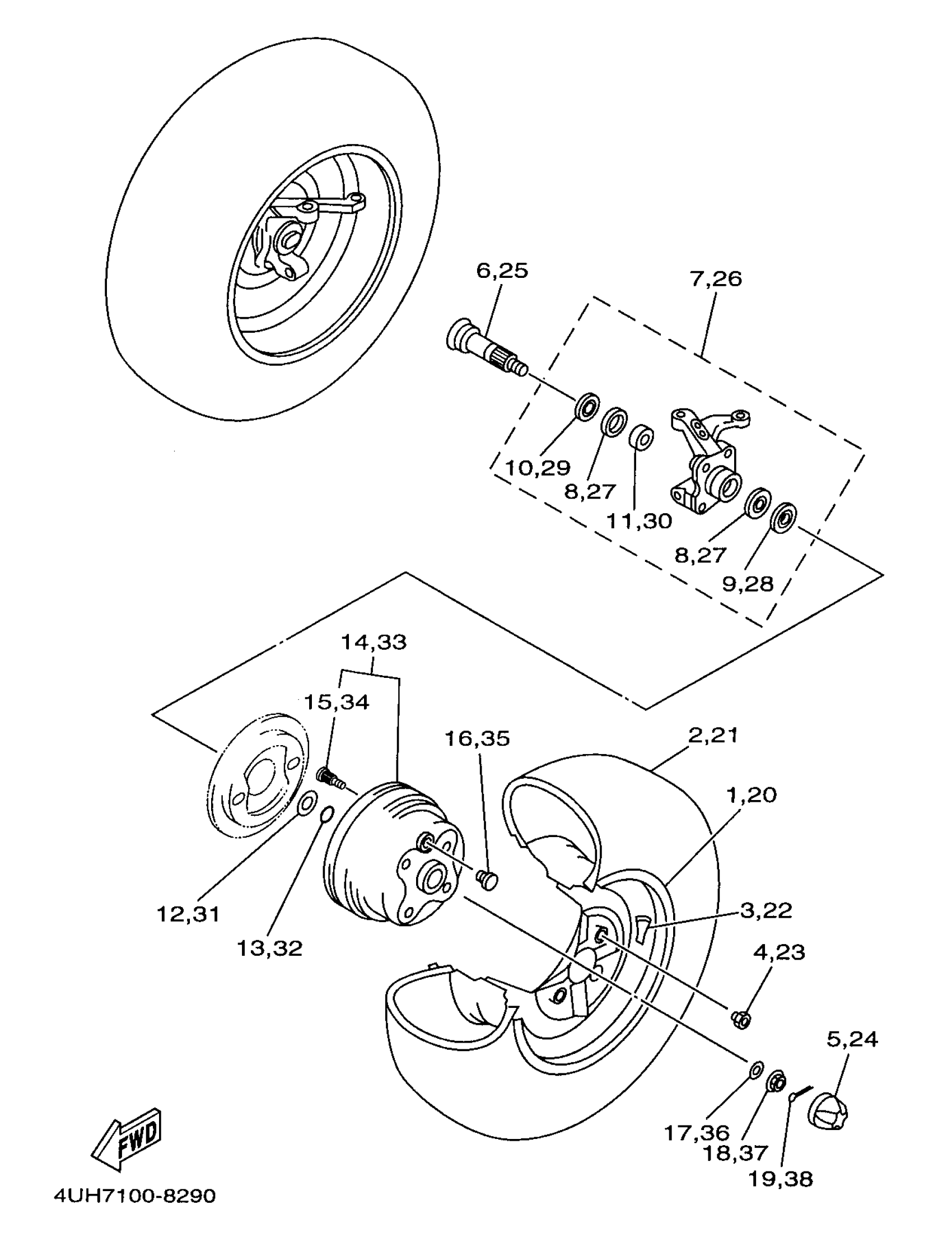

Yamaha YFM350UK (BIG BEAR 2WD) 4UH7 1998 FRONT WHEEL Diagram

#

Description
Price

1

WHEEL COMP.

3HN-25180-00-35

Unavailable

2

TIRE

94108-1207T-00

Unavailable

3

VALVE, RIM(2GH)

93900-00030-00

$16.99

4

NUT(2HR)

90179-10540-00

$5.60

5

CAP, WHEEL

52H-2512A-00-00

$22.99

6

AXLE, WHEEL

4UH-25181-00-00

Unavailable

7

STEERING,KNUCKLE (L)

3HN-23501-02-00

Unavailable

8

BEARING(2HR)

93306-00612-00

$47.99

9

OIL SEAL(2HR)

93102-38383-00

$17.99

10

OIL SEAL(3HN)

93102-38417-00

$17.99

11

SPACER(2HR)

90560-30325-00

$13.49

12

COLLAR(3HN)

90387-281V8-00

Unavailable

13

O-RING(22F)

93210-26662-00

$7.49

14

HUB, FRONT

3HN-25111-02-00

$302.99

15

BOLT, SERRATION

90114-10016-00

$9.49

16

CAP

2NL-25335-01-00

Unavailable

17

WASHER, PLATE(3HN)

90201-163M0-00

Unavailable

18

NUT, CASTLE

90171-16001-00

Unavailable

19

PIN, COTTER

91490-30030-00

Unavailable

20

WHEEL COMP.

3HN-25180-00-35

Unavailable

21

TIRE

94108-1207T-00

Unavailable

22

VALVE, RIM(2GH)

93900-00030-00

$16.99

23

NUT(2HR)

90179-10540-00

$5.60

24

CAP, WHEEL

52H-2512A-00-00

$22.99

25

AXLE, WHEEL

4UH-25181-00-00

Unavailable

26

STEERING, KNUCKLE ASSY (RIGHT)

3HN-23502-02-00

Unavailable

27

BEARING(2HR)

93306-00612-00

$47.99

28

OIL SEAL(2HR)

93102-38383-00

$17.99

29

OIL SEAL(3HN)

93102-38417-00

$17.99

30

SPACER(2HR)

90560-30325-00

$13.49

31

COLLAR(3HN)

90387-281V8-00

Unavailable

32

O-RING(22F)

93210-26662-00

$7.49

33

HUB, FRONT

3HN-25111-02-00

$302.99

34

BOLT, SERRATION

90114-10016-00

$9.49

35

CAP

2NL-25335-01-00

Unavailable

36

WASHER, PLATE(3HN)

90201-163M0-00

Unavailable

37

NUT, CASTLE

90171-16001-00

Unavailable

38

PIN, COTTER

91490-30030-00

Unavailable
