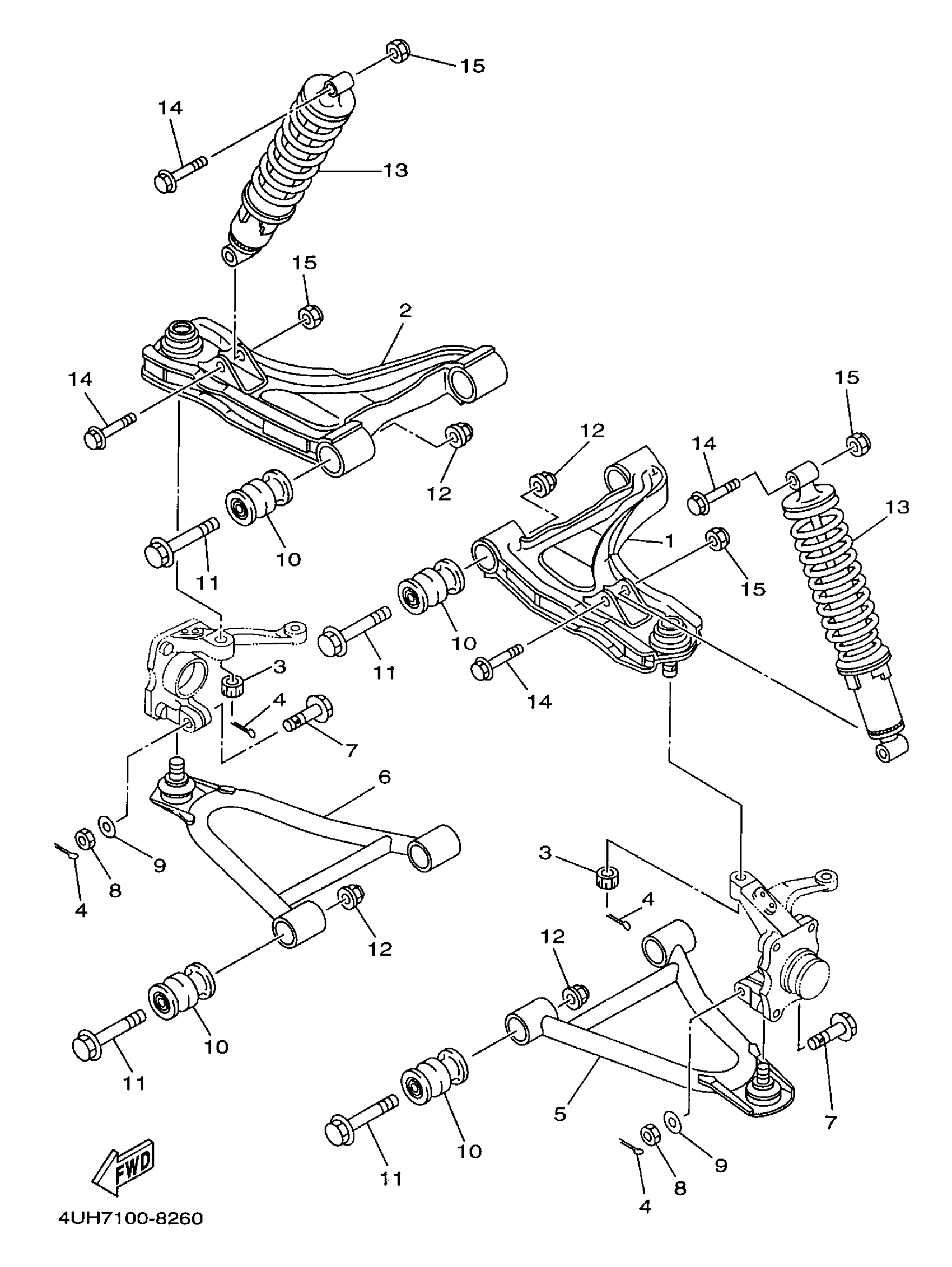

Yamaha YFM350UK (BIG BEAR 2WD) 4UH7 1998 FRONT SUSPENSION - WHEEL Diagram

FRONT UPPER ARM COMP. (LEFT)

2HR-23540-10-00

Unavailable

FRONT UPPER ARM COMP. (RIGHT)

2HR-23550-10-00

Unavailable

NUT, CASTLE

90171-10001-00

$7.49

PIN, COTTER

91490-20025-00

$1.99

FRONT LOWER ARM COMP.(LEFT)

2HR-23570-01-00

Unavailable

FRONT LOWER ARM (RIGHT)

2HR-23580-01-00

$271.99

BOLT, FLANGE (2XJ)

90105-10549-00

$7.49

NUT(6TD)

95337-10600-00

$9.49

WASHER (7A9)

90201-100F7-00

$9.49

BUSH

2HR-23526-00-00

$20.99

BOLT, WASHER BASED(4EB)

90105-10788-00

$28.99

NUT, SELF-LOCKING(JN5)

95607-10200-00

$4.19

SHOCK ABSORBER ASSEMBLY

4UH-23350-00-33

Unavailable

BOLT, WASHER BASED(59V)

90105-10388-00

$10.49

NUT, SELFLOCKING (533 FRAME)

90185-10060-00

$7.49
