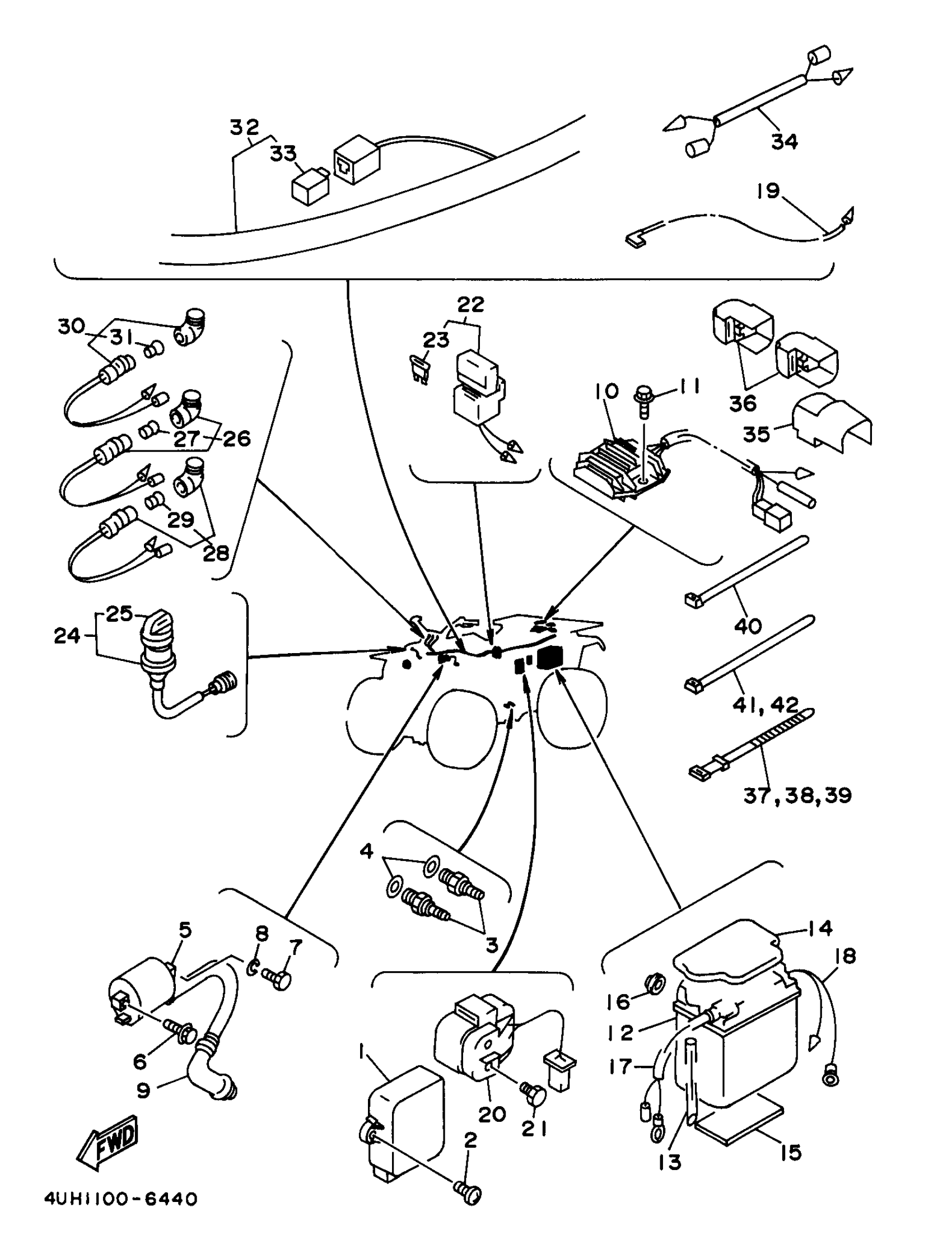

Yamaha YFM350UK (BIG BEAR 2WD) 4UH7 1998 ELECTRICAL 1 Diagram
#
12
CB14-A2 GS BATTERY
CB1-4A200-00-00
Unavailable
14
COVER, BATTERY
24W-82129-00-00
Unavailable
16
PAD, BATTERY
371-82121-00-00
Unavailable
17
WIRE, PLUS LEAD
3LD-82115-00-00
Unavailable
18
WIRE, MINUS LEAD
2HR-82116-00-00
Unavailable
19
WIRE, LEAD
3HN-82541-00-00
Unavailable
20
STARTER RELAY ASSY (MS5E-541)
4KB-81940-01-00
Unavailable
21
BOLT, SMALL FLANGE
95027-06008-00
Unavailable
22
FUSE HOLDER ASSY
5EH-82150-00-00
Unavailable
23
FUSE (12V 30A)
1AE-82151-00-00
Unavailable
24
MAIN SWITCH ASSY
4GB-82510-12-00
Unavailable
25
CAP, KEY
3HN-82579-00-00
Unavailable
26
PILOT LIGHT ASSY
24W-83530-10-00
Unavailable
27
BULB (12V-3.4W)
123-83516-21-00
Unavailable
28
PILOT LIGHT ASSY
52G-83530-10-00
Unavailable
29
BULB (12V-3.4W)
123-83516-21-00
Unavailable
30
PILOT LIGHT ASSY
2HR-83530-01-00
Unavailable
31
BULB (12V-3.4W)
123-83516-21-00
Unavailable
32
WIRE HARNESS ASSY
4UH-82590-10-00
Unavailable
33
DIODE ASSY
3WP-81980-00-00
Unavailable
34
WIRE, LEAD
59V-82541-00-00
Unavailable
35
RELAY ASSY (1UY-92)
1UY-81950-92-00
Unavailable
36
RELAY ASSY (29U-93)
29U-81950-93-00
Unavailable
37
BAND, SWITCH CORD
437-83936-01-00
Unavailable
38
BAND, SWITCH CORD
437-83936-11-00
Unavailable
39
BAND, SWITCH CORD
437-83936-11-00
Unavailable
40
BAND
341-26397-01-00
Unavailable
41
CLAMP
90465-10098-00
Unavailable
42
CLAMP
90465-10098-00
Unavailable
43
KEY, BLANK (A-TYPE)
90890-56001-00
Unavailable
44
KEY, BLANK (B-TYPE)
90890-56002-00
Unavailable
