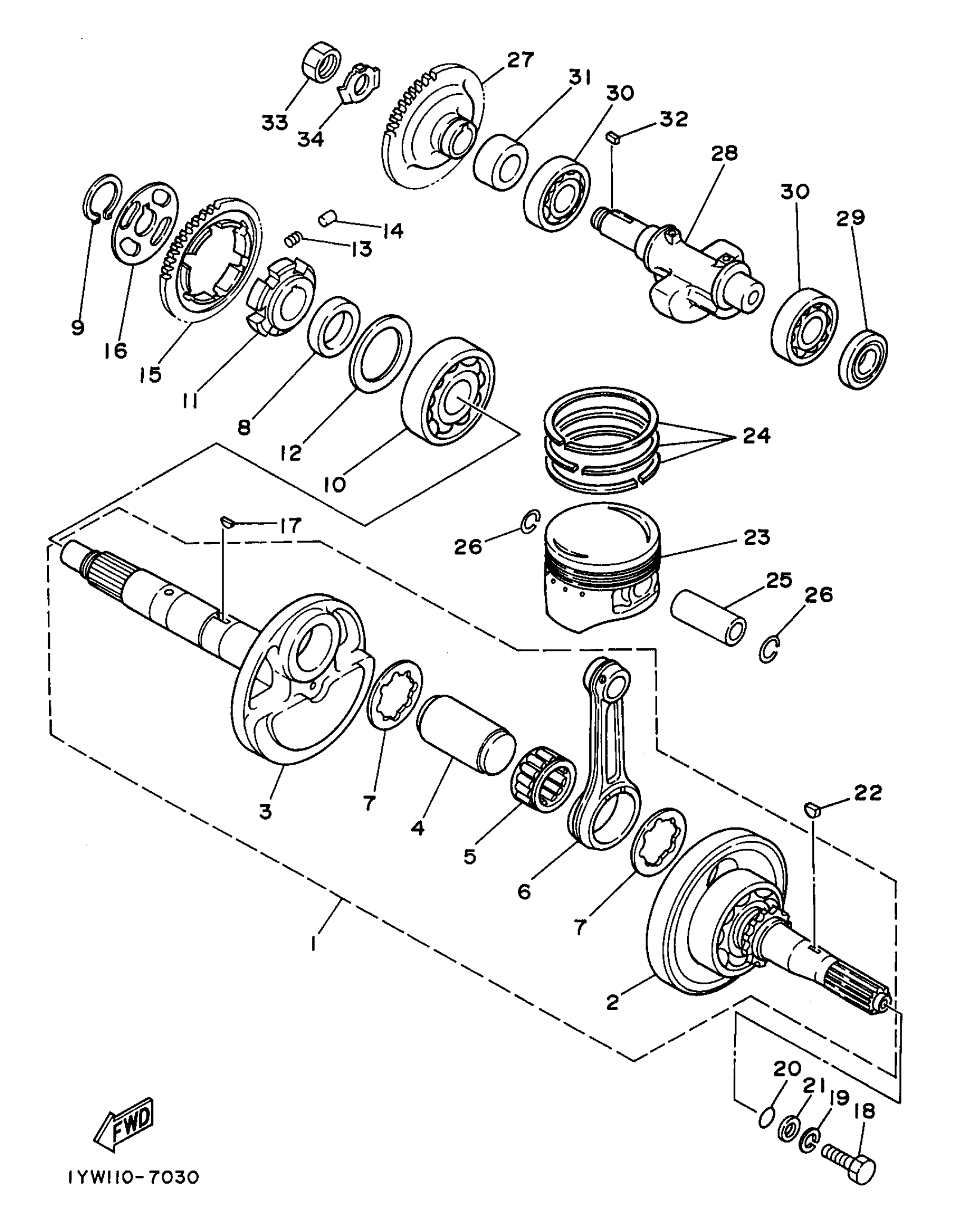

Yamaha YFM350UK (BIG BEAR 2WD) 4UH7 1998 CRANKSHAFT - PISTON Diagram
#
1
CRANKSHAFT ASSY
1YW-11400-02-00
Unavailable
2
CRANK SUB ASSY 1
1UY-11401-09-00
Unavailable
3
CRANK 2
1YW-11422-02-00
Unavailable
4
PIN, CRANK 1
30X-11681-00-00
Unavailable
6
ROD, CONNECTING
1UY-11651-00-00
Unavailable
8
COLLAR
90387-291R6-00
Unavailable
11
BOSS, BUFFER
1YW-11496-00-00
Unavailable
12
WASHER, PLATE (21V)
90201-406F4-00
Unavailable
13
SPRING, COMPRESSION (5Y1)
90501-22721-00
Unavailable
16
WASHER, BEARING COVER
1YW-11565-00-00
Unavailable
17
KEY, WOODRUFF
90280-05001-00
Unavailable
18
BOLT (21V)
90101-10568-00
Unavailable
19
WASHER(6TA)
92907-10100-00
Unavailable
20
O-RING (538)
93210-16290-00
Unavailable
21
WASHER, PLATE
90201-10058-00
Unavailable
22
KEY, WOODRUFF
90280-05001-00
Unavailable
23
PISTON (STD)
1YW-11631-01-Y0
Unavailable
23
PISTON (0.50MM O/S)
1YW-11636-01-00
Unavailable
23
PISTON (1.00MM O/S)
1YW-11638-01-00
Unavailable
24
PISTON RING SET (STD)
4GB-11610-00-00
Unavailable
24
PISTON RING SET (0.50MM O/S)
4GB-11610-20-00
Unavailable
24
PISTON RING SET (1.00MM O/S)
4GB-11610-40-00
Unavailable
25
PIN, PISTON
55V-11633-00-00
Unavailable
26
CIRCLIP (26H)
93450-19095-00
Unavailable
27
GEAR, DRIVE
1UY-11536-01-00
Unavailable
28
WEIGHT 1
1YW-11454-00-00
Unavailable
29
OIL SEAL (5Y1)
93101-25106-00
Unavailable
30
BEARING
93306-20532-00
Unavailable
31
COLLAR
90387-201R7-00
Unavailable
32
KEY, STRAIGHT (3L5)
90282-05034-00
Unavailable
33
NUT, HEXAGON (30X)
90170-16326-00
Unavailable
34
WASHER, LOCK(2NL)
90215-16270-00
Unavailable
