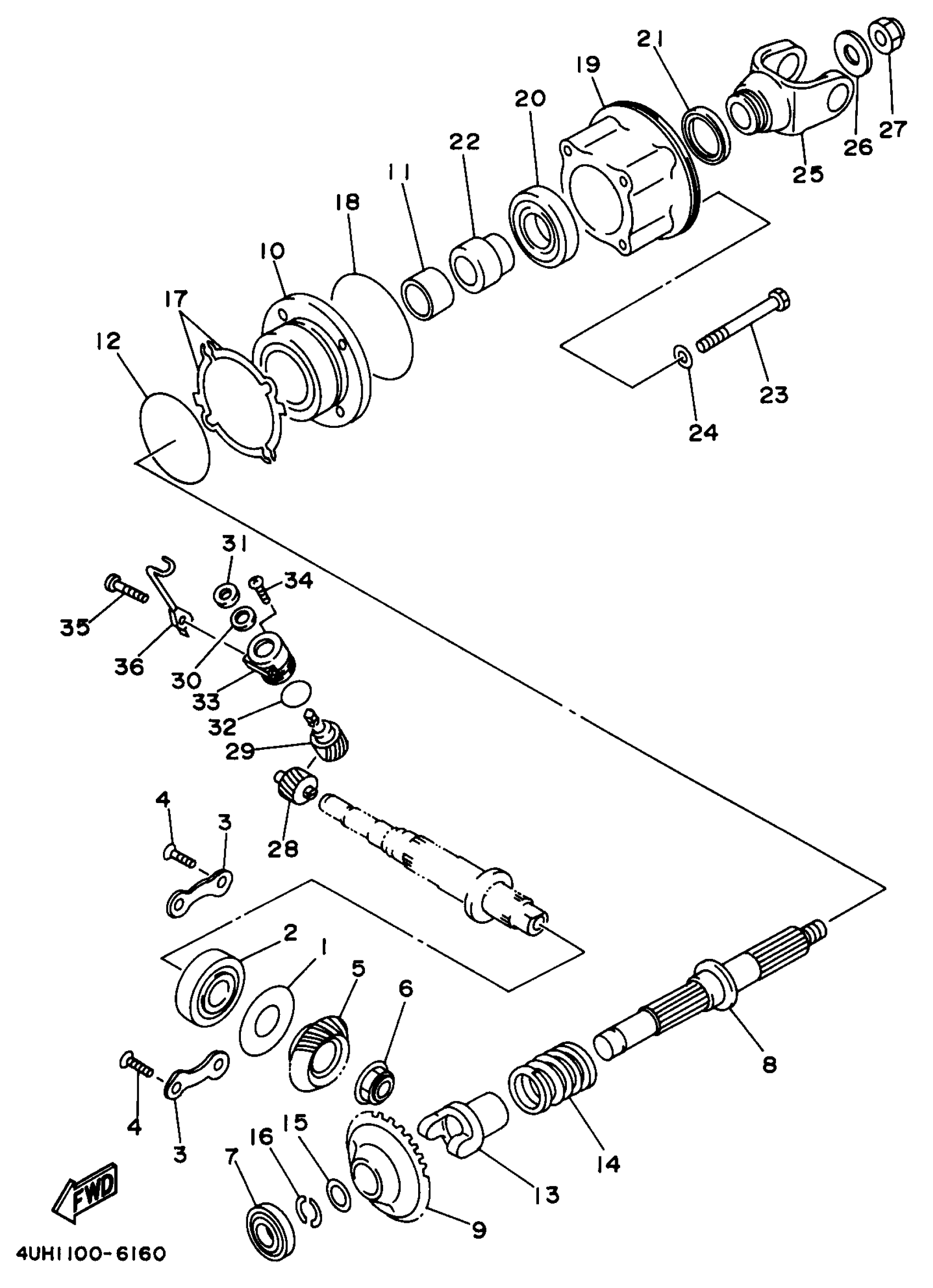

Yamaha YFM350UJ_MNH (BIG BEAR 2WD) 4UH4 1997 MIDDLE DRIVE GEAR Diagram
#
5
PINION, DRIVE
1YW-17522-00-00
Unavailable
9
PINION, DRIVEN
1YW-17552-00-00
Unavailable
10
HOUSHING COMP.
4UH-W1752-00-00
Unavailable
11
COLLAR
90387-257R2-00
Unavailable
13
CAM,DRIVEN
1YW-17527-10-00
Unavailable
14
SPRING, COMPRESSION(1YW)
90501-602E2-00
Unavailable
15
WASHER, PLATE
90201-206K8-00
Unavailable
16
WASHER, THRUST
3H5-17529-00-00
Unavailable
17
SHIM, PINION (0.1T)
59V-17531-00-00
Unavailable
17
SHIM, PINION (0.15T)
59V-17531-10-00
Unavailable
17
SHIM, PINION (0.2T)
59V-17531-20-00
Unavailable
17
SHIM, PINION (0.5T)
59V-17531-50-00
Unavailable
18
O-RING
93210-68575-00
Unavailable
19
HOUSING, BEARING
4UH-17521-00-00
Unavailable
20
BRG,R-B 6007 62MM 150G KY
93306-00702-00
Unavailable
21
OIL SEAL (4H7)
93101-35097-00
Unavailable
22
COLLAR, GEAR
4UH-17585-00-00
Unavailable
23
BOLT
90101-08712-00
Unavailable
24
WASHER(6TA)
92907-08600-00
Unavailable
25
YOKE, JOINT
2HR-17556-01-00
Unavailable
26
WASHER, PLATE (1J7)
90201-14633-00
Unavailable
27
NUT, SELF-LOCKING (1J7)
90185-14070-00
Unavailable
28
GEAR, DRIVE
59V-17831-00-00
Unavailable
29
GEAR, DRIVEN
59V-17841-00-00
Unavailable
30
WASHER (692)
90201-12M34-00
Unavailable
31
OIL SEAL (30X)
93102-08307-00
Unavailable
32
O-RING(59V)
93210-24253-00
Unavailable
33
HOUSING, TACHOMETER GEAR
59V-17811-00-00
Unavailable
34
SCREW, PAN HEAD(3TJ)
98507-06016-00
Unavailable
35
SCREW, PAN
98517-06030-00
Unavailable
36
GUIDE, WIRE
2HR-83599-00-00
Unavailable
