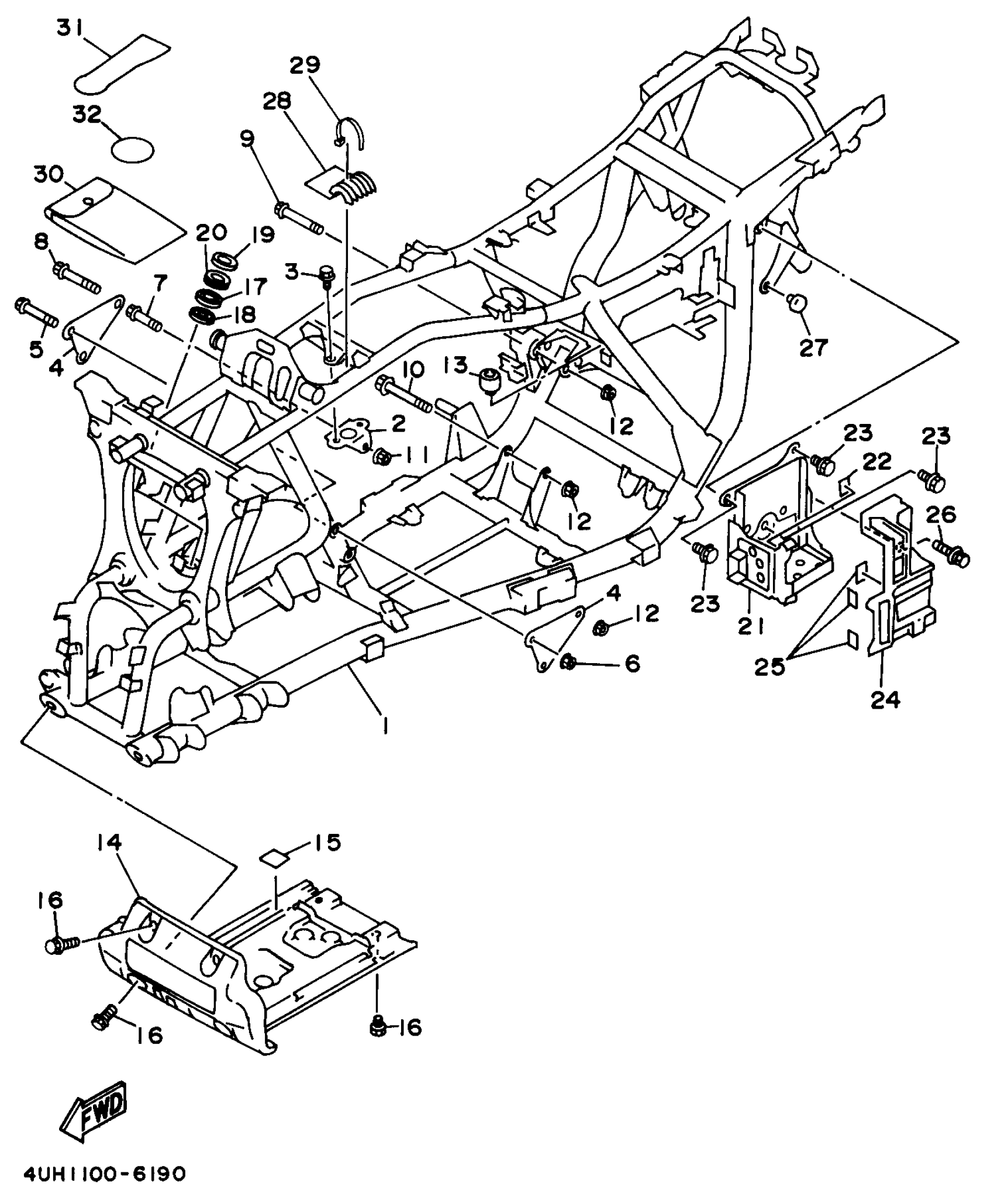

Yamaha YFM350UJ_MNH (BIG BEAR 2WD) 4UH4 1997 FRAME Diagram

#

Description
Price

1

FRAME COMP.

4UH-21110-00-33

Unavailable

2

STAY, ENGINE 2

4UH-21315-00-00

Unavailable

3

BOLT, FLANGE

95817-08012-00

$5.49

4

STAY,ENGINE 3

3HN-21316-00-00

Unavailable

5

BOLT, FLANGE(JN5)

95817-08070-00

$3.76

6

NUT, SELF-LOCKING

90185-08169-00

$8.49

7

BOLT, FLANGE

95817-08055-00

$4.21

8

B0LT,FLANGE (1KT)

90105-10323-00

$5.60

9

BOLT, WASHER BASED(2NL)

90105-10480-00

$8.49

10

BOLT, WASHER BASED(1KT)

90105-10409-00

Unavailable

11

NUT, SELF-LOCKING

90185-08169-00

$8.49

12

NUT, SELF-LOCKING(JN5)

95607-10200-00

$4.19

13

STOPPER, MAIN STAND

1J7-27114-00-00

Unavailable

14

GUARD, ENGINE 1

2HR-2147A-00-00

Unavailable

15

DAMPER, LOCATING 1

27V-24181-00-00

Unavailable

16

BOLT, FLANGE

95817-08012-00

$5.49

17

BEARING

93306-20348-00

Unavailable

18

OIL SEAL (25X36X8-334)

93102-25099-00

Unavailable

19

OIL SEAL (25X44X6-810)

93102-25081-00

Unavailable

20

HOLDER, BEARING

2GU-23872-00-00

Unavailable

21

BOX

1YW-21170-01-00

Unavailable

22

COVER 2

3FC-2139R-00-00

Unavailable

23

BOLT, FLANGE

95817-06012-00

Unavailable

24

BOX

24W-21245-00-00

Unavailable

25

COVER 2

3FC-2139R-00-00

Unavailable

26

BOLT, WITH WASHER

90119-06152-00

Unavailable

27

STOPPER

30X-24768-00-00

Unavailable

28

DAMPER, LOCATING 1

2HR-24181-00-00

Unavailable

29

BAND

1UA-82591-00-00

Unavailable

30

TOOL KIT (24W-28100-00)

59V-28100-00-00

Unavailable

31

GAUGE, AIR

1NV-2811A-01-00

Unavailable

32

O-RING (102)

93210-41041-00

Unavailable
