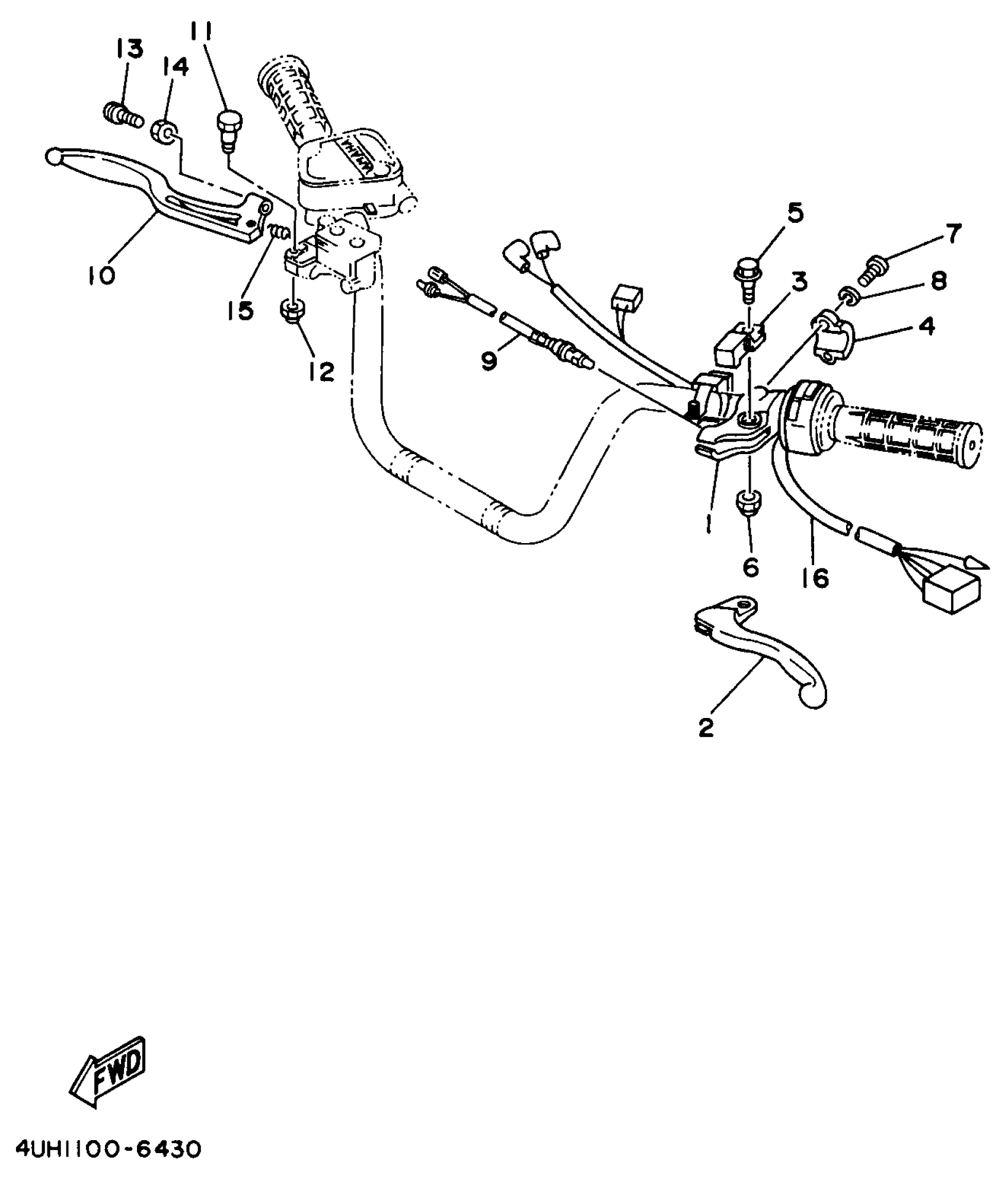

Yamaha YFM350UH_MNH (BIG BEAR 2WD) 4UH11 1996 HANDLE SWITCH LEVER Diagram

Description

Price

HOLDER SET, LEVER 1

99999-03034-00

$93.99

LEVER 1

2HT-83912-01-00

$39.99

LEVER, LOCK

1YW-83965-00-00

Unavailable

HOLDER, LEVER LOWER

4V4-82913-00-00

Unavailable

BOLT(3GB)

90109-061F3-00

$7.49

NUT, SELF-LOCKING

95617-06100-00

$8.49

SCREW, PAN HEAD

98517-05020-00

$4.25

WASHER(3SX)

92907-05100-00

$8.49

FRONT STOP SWITCH ASSY

1YW-83980-00-00

$70.99

LEVER 2

38W-83922-01-00

$62.99

BOLT (4L0)

90109-06577-00

$5.60

NUT, SELF-LOCKING

95617-06100-00

$8.49

SCREW (2L0)

90149-06131-00

$8.49

NUT HEXAGON 306839270000

90170-06010-00

$8.49

SPRING COMPRESSION306839240000

90501-10312-00

$8.49

SWITCH, HANDLE 3

4GB-83973-09-00

Unavailable
